Advanced LLED3/NM3/P/SUR LED-Lite Downlighter, Surface Mount, Addressable, Non-Maintained, Open Area Lens (White Surface Mount Box)
SKU: LLED3/NM3/P/SURBrand: Advanced
| Out of stock | Qty | Delivery |
|---|---|---|
| All locations | 0 | Lead time 2 to 6 weeks, estimate only |
Need help choosing?
Our UK team can check compatibility, stock and project pricing for you.
0113 518 0540info@jemsystems.co.uk
Advanced LLED3/NM3/P/SUR LED-Lite Downlighter, Surface Mount, Addressable, Non-Maintained, Open Area Lens (White Surface Mount Box)
£325.45
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Symmetrical wide-angle open area lens
- White finish
- 3-hour non-maintained emergency operation
- Addressable: fully compatible with the LuxIntelligent test system
- Green LED battery charge indicator
- Robust surface-mount steel back box with steel fascia plate
Frequently bought together
Advanced
Advanced LLED3/NM3/P/SUR/C LED-Lite Downlighter, Surface Mount, Addressable, Non-Maintained, Corridor Lens (White Surface Mount Box)
Sale price£325.45
Out of stock. Lead time 2 to 6 weeks, estimate onlyProduct details

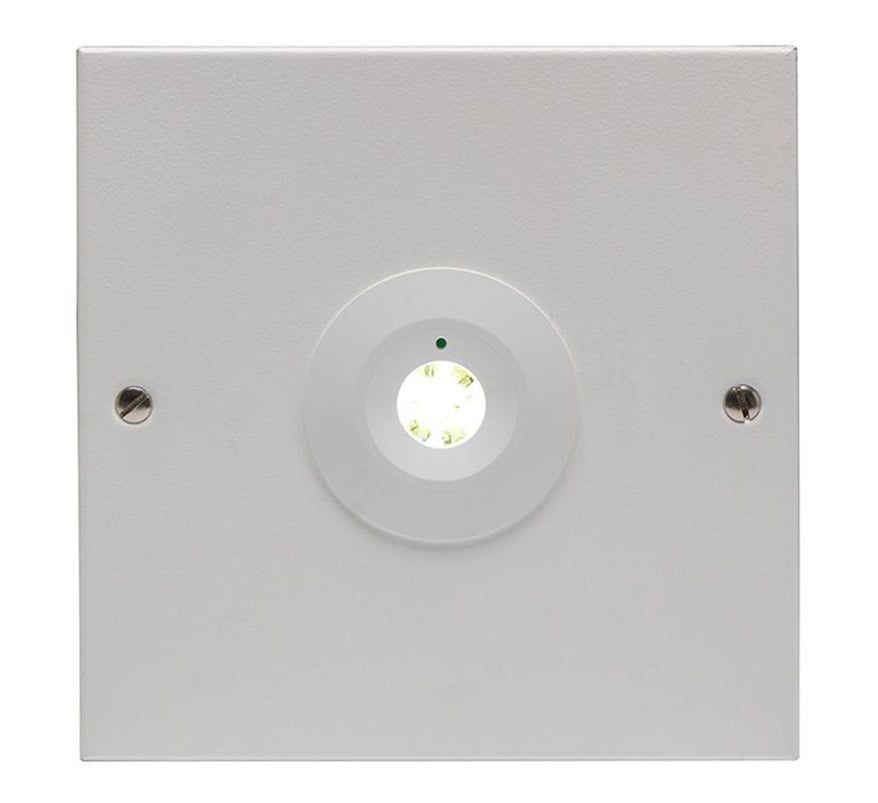

The Advanced LLED3/NM3/P/SUR is an LED-Lite emergency downlighter from the LuxIntelligent range, with an open area lens, addressable non-maintained operation and a white surface-mount box.
The surface-mount LED-Lite is a robust, discreet self-contained emergency luminaire with a steel back box and steel fascia plate. It has a BESA rear entry and 20mm knockouts for surface conduit entry. It needs a permanent 230V supply and addressable wiring to provide 3-hour non-maintained emergency lighting, and fully supports the LuxIntelligent emergency lighting test system.
Key features
- Symmetrical wide-angle open area lens
- White finish
- 3-hour non-maintained emergency operation
- Addressable: fully compatible with the LuxIntelligent test system
- Green LED battery charge indicator
- Robust surface-mount steel back box with steel fascia plate
- BESA rear entry and 20mm knockouts
- Low power consumption and excellent spacing values
Technical specifications
- Part code: LLED3/NM3/P/SUR
- Supply voltage: 230V (220-240V) 50Hz
- Supply power: 1.5W
- Light source: 3W white LED
- Emergency output: 160lm
- Emergency duration: 3 hours
- Battery: 2.4V 1.8Ah NiCd
- IP rating: IP42
- Ambient temperature: 0 to 40°C
- Cable entry: 2 x 20mm entries, 1 x BESA (rear)
- Body: Steel back box with steel fascia plate
- Dimensions (H x W x D): 195 x 195 x 40mm
- Weight: 1.5kg
- Open area lens spacing at 2m mounting height: 9.8m (0.5 lux min), 8.9m (1 lux min)
