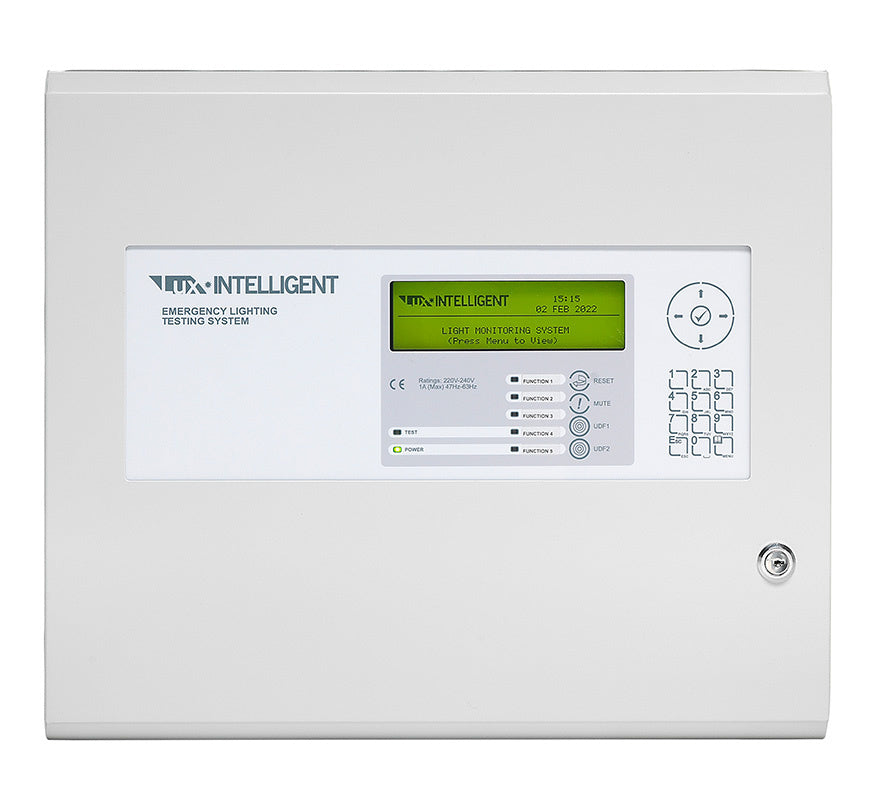

Advanced LX-9401 LuxIntelligent Control Panel (1 Loop Driver Fitted)
SKU: LX-9401Brand: Advanced
| Out of stock | Qty | Delivery |
|---|---|---|
| All locations | 0 | Lead time 2 to 6 weeks, estimate only |
Need help choosing?
Our UK team can check compatibility, stock and project pricing for you.
0113 518 0540info@jemsystems.co.uk
Advanced LX-9401 LuxIntelligent Control Panel (1 Loop Driver Fitted)
£1,346.10
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Supports up to 996 luminaires per panel
- Advanced graphical LCD user interface
- Loop-powered communications
- 400 individual tests spread across up to 50 test groups
- Up to 200 zones per panel; networks of up to 200 panels
- 1,000 event and diagnostic log, plus a separate log of test results
Frequently bought together
Advanced
Advanced LXM-001 LuxIntelligent Control Panel - Semi-Flushing Bezel
Sale price£74.85
Out of stock. Lead time 2 to 6 weeks, estimate only
Advanced
Advanced LXP-110 LuxIntelligent Input - Output Interface
Sale price£231.70
Out of stock. Lead time 2 to 6 weeks, estimate only
Advanced
Advanced LXP-302 LuxIntelligent Luminaire Monitoring Interface - 250mm Fibre Optic Lead
Sale price£88.05
Out of stock. Lead time 2 to 6 weeks, estimate onlyProduct details
The Advanced LX-9401 is a LuxIntelligent Lx-9400 addressable emergency lighting test panel supplied with one loop driver fitted. It automatically tests maintained, non-maintained and slave emergency luminaires on the loop-powered PuLsE protocol and keeps test records for inspection and audit, supporting compliance with BS 5266-1 and EN 50172.
It works with self-contained, central battery and static inverter systems, the Advanced LuxIntelligent range of fittings, and other luminaires fitted with LuxIntelligent modules.
Key features
- Supports up to 996 luminaires per panel
- Advanced graphical LCD user interface
- Loop-powered communications
- 400 individual tests spread across up to 50 test groups
- Up to 200 zones per panel; networks of up to 200 panels
- 1,000 event and diagnostic log, plus a separate log of test results
- Test records can be downloaded to a PC with the LuxIntelligent logger tool and synced to the LuxIntelligent cloud and app
- 32 characters of zone text and 26 for each luminaire
- Dedicated RS232 port supporting various modes of access
- 5A power supply and charger to EN 54-4
Technical specifications
- Loops: 1 to 4 (1 loop driver fitted)
- Protocol: PuLsE
- Devices per loop (total): 249
- Loop current: 500mA
- Zones: 200 maximum across 4 loops (1,000 when networked)
- Test groups / scheduled tests: 50 / 400
- Event log: 1,000 event and diagnostic
- Display: Backlit 260 x 64 graphical LCD
- Controls: Alphanumeric keypad, navigation keys, mute and reset
- Power supply: Separate 24V DC 5A universal input, switched mode
- Mains supply: 220-240V AC (+10% / -15%), 47-63Hz, 1A max
- Battery capacity: 24V 4Ah minimum, 24V 12Ah maximum internal
- Charging current: 2.4A, temperature compensated
- Auxiliary supply output: 1 x 24V DC 500mA
- On-board relays: 2 x 1A 30V AC/DC (fault)
- Serial port: 1 x RS232 for PC, modem or printer
- Enclosure: Steel, IP30, RAL 7035
- Dimensions (H x W x D): 385 x 450 x 125mm
- Weight: 8.6kg
- Cable entries: 18 x top, 9 x top rear, 2 x bottom (20mm knockouts)
- Operating temperature: -5°C to 40°C
- Humidity: 95% max
