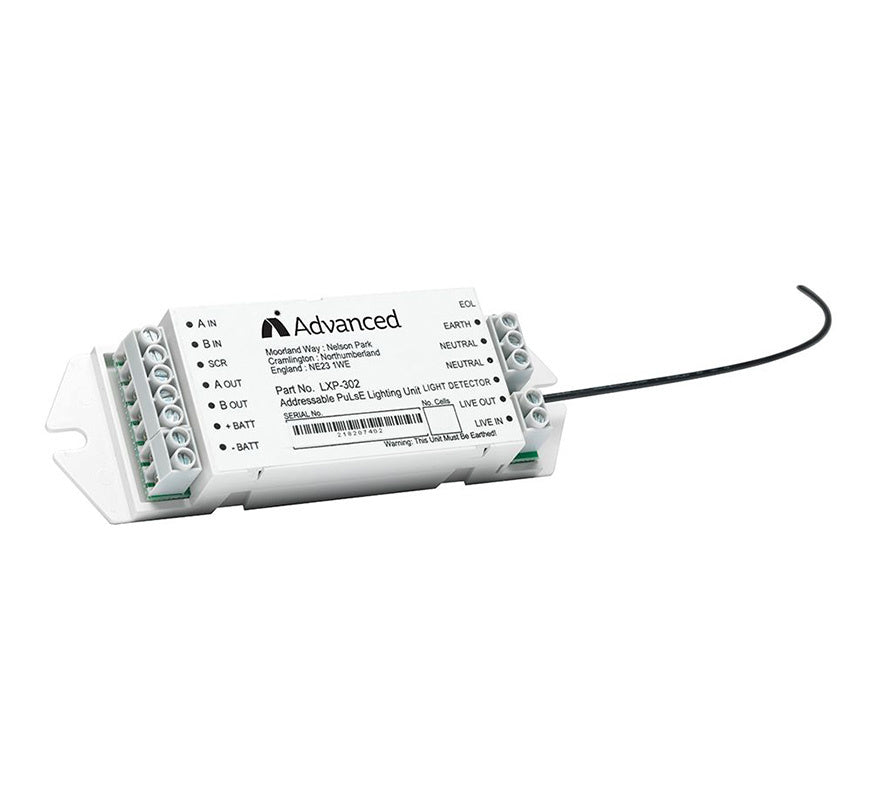

The Advanced LXP-302 is a LuxIntelligent pulse light unit (PLU), a loop-powered addressable module that turns a standard emergency luminaire into an addressable luminaire which can be automatically tested and monitored by the LuxIntelligent emergency lighting test panel, 24 hours a day.
It provides control and monitoring of the luminaire AC mains supply, battery condition and lamp status, reporting actual battery voltage and light level measurements to the control panel. It can be configured for maintained or non-maintained luminaires and can be used in central battery and static inverter installations. As it is loop powered, the panel can still monitor the luminaire even if local power fails.
Key features
- Converts a standard emergency luminaire into an addressable luminaire
- Monitors mains supply, battery condition and lamp status
- Reports actual battery voltage and light level to the panel
- Maintained or non-maintained configuration
- Loop powered; uses no power from luminaire batteries
- Supplied with 250mm fibre optic lead and grommets for mounting the fibre optics
- Loop in and loop out terminal chambers
Technical specifications
-
Part number: LXP-302
-
Fibre optic lead: 250mm
-
Dimensions (H x W x D): 130 x 42 x 20mm
-
Fixing centres: 118mm
-
Temperature: 65°C
-
Terminal size: 0.35-2.5mm²
-
Addresses: 1-249
-
Battery range: 1.2-12.0V ±2%
-
Relay output: 250V AC (125VA)
-
Loop voltage: 15-32V DC
-
Current: 1.7mA (energised 1.7mA)
-
Protocol: LuxIntelligent two-wire communication link
