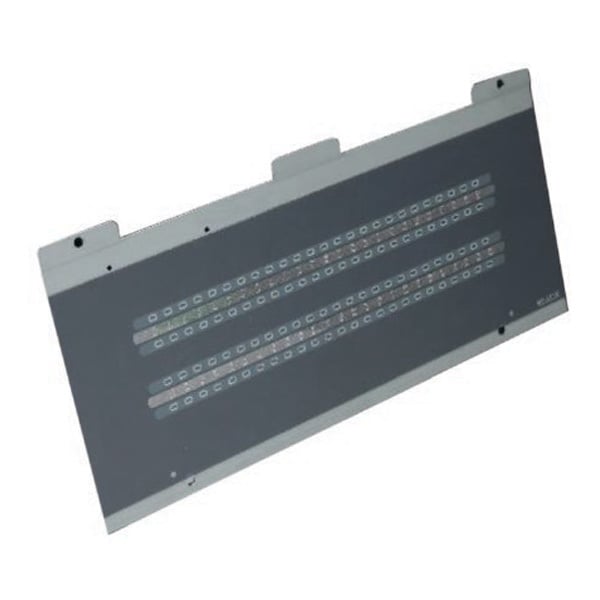

The Advanced MXP-513-100RD is a 100 zone Fire (red) LED card for MxPro 5 fire alarm control panels in the extended enclosure. It gives individual zonal LED indication in addition to the panel's graphical display.
By default each LED lights when its zone enters a Fire condition, but the LEDs are fully programmable and can follow the cause-and-effect strategy, for example to show Fault, Isolation or an Output Group. The card fully supports dynamic zoning on networked or larger stand-alone systems, so individual zone indication can be provided at one location.
Key features
- 100 zone Fire (red) LEDs
- Programmable LEDs
- Supports dynamic zoning
- Factory fitted or retrofit options
- 3-year warranty as standard
Technical specifications
-
Part code: MXP-513-100RD
-
LED configuration: 100 zone Fire (red)
-
Enclosure: Extended enclosure
-
Supply: For fitting to the panel
-
Compatible panels: MX-5401E to MX-5404E and MX-5802 to MX-5808 (including /FT versions)
