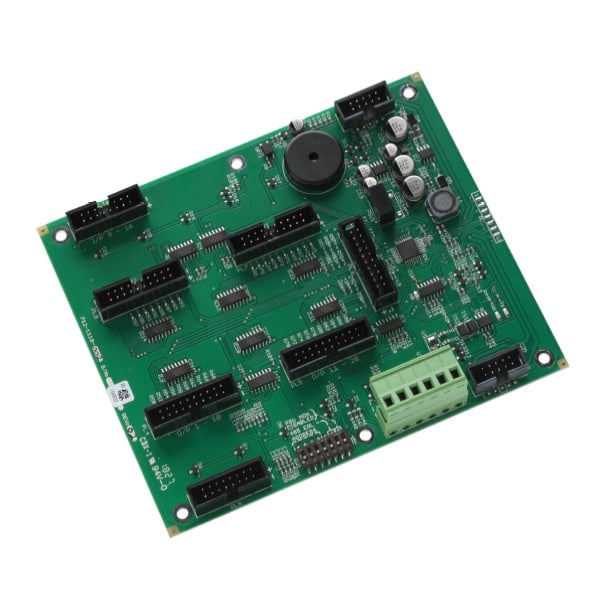

The Advanced MXP-539 Multi-Way I/O Mimic Driver Card is an expansion peripheral for MxPro 5 fire alarm control panels, providing 16 clean-contact inputs and 48 LED driver outputs, each individually programmable.
It connects directly to the panel's peripheral bus (P-Bus), giving a cost-effective way to build a boxed mimic and plant control indication panel without a network interface.
Key features
- 16 configurable clean-contact inputs
- 48 programmable LED driver outputs
- Configurable buzzer
- Fast input response
- No network interface required
- Up to 16 cards per panel, giving 256 programmable inputs
- Each LED output can be assigned to an output group (up to 200 groups per panel)
Technical specifications
-
Power supply: 18-28V DC (for example from the panel 24V auxiliary supply)
-
Supply current: 60mA max
-
Inputs: 16 x clean-contact volt-free, 1 x PSU monitor
-
Outputs: 48 x LED driver, 1 x buzzer
-
Fault input: Volt-free
-
Operating temperature: 0°C to 49°C, indoor dry
-
Humidity: 10-95% non-condensing
-
Dimensions (H x W x D): 168 x 14 x 31mm
-
Compatibility: All MxPro 5 panels; PC ConfigTool v6.10 or later; panel software Mx5000-050-07 or later
