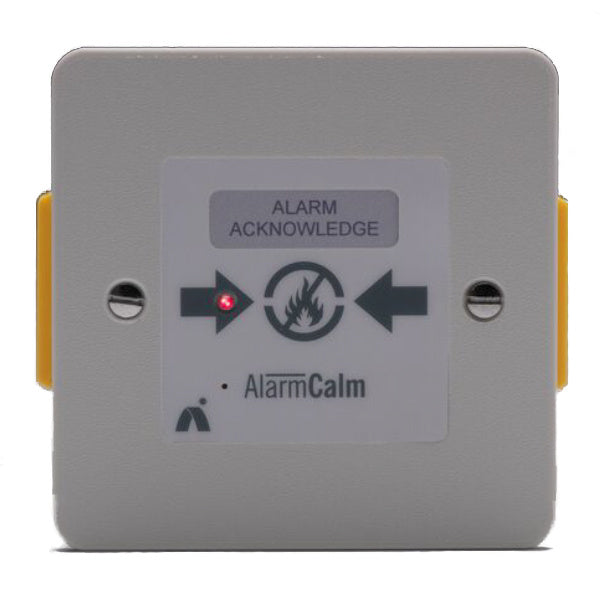

Advanced MXP-541A-002 AlarmCalm button w buzzer (Apollo)

The Advanced MXP-541A-002 is an AlarmCalm button for the Apollo protocol, with a programmable buzzer. It is an intelligent, loop-powered module that connects to an Apollo detection loop on an MxPro 5 multi-protocol fire panel, as part of Advanced's AlarmCalm false alarm management (FAM) solution.

Fitted inside a dwelling or apartment, it lets occupants acknowledge a local alarm: pressing the button during the stage-1 period silences locally programmed sounders and extends the verification time (stage 2) before the panel enters a full fire condition. It is configured with the AlarmCalm software.

Key features

• Push-button input with LED output
• Optional programmable audible buzzer (75dB at 1m)
• Mechanically compatible with a single-gang UK electrical back box
• Fully addressable, sits on the loop (Apollo addresses 1-126)
• Recognised by MxPro 5 panels as a unique AlarmCalm device type
• Fully programmable with AlarmCalm software, including verification and second-stage times
• Wiring terminations suit all Advanced recommended loop cables
• Aimed at reducing unwanted alarms

Technical specifications

• Protocol: Apollo
• Operating voltage: 17-28V
• Address range: 1-126
• Quiescent current: 1.0mA
• Alarm current: 1.5mA
• Buzzer current: 7.6mA
• Buzzer output: 75dB at 1m
• LED indication: Blinks on poll; pulses during stage 1; on during stage 2 (acknowledged)
• Connections: Loop in, out and screen
• Dimensions (H x W x D): 86 x 86 x 23mm
