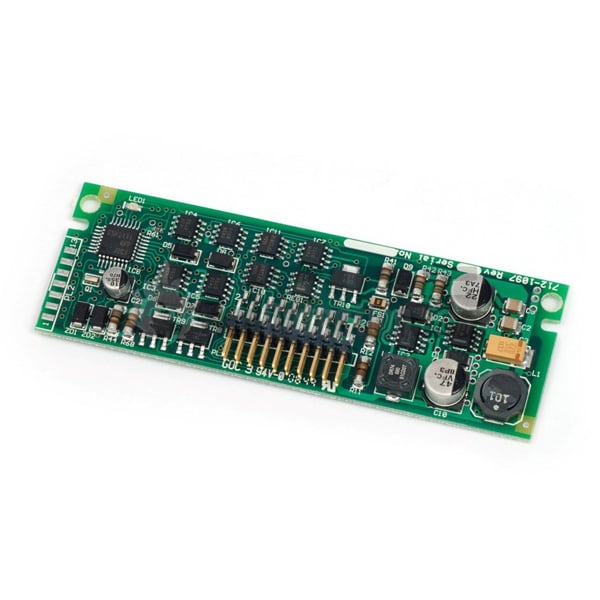

The Advanced MXP-567 is a loop driver card for MxPro 5 analogue addressable fire alarm control panels, for use with Nittan Evolution protocol devices. It provides control of, and connection to, one detector loop.
For Apollo (XP95, Discovery, Soteria), Hochiki ESP and Argus Vega devices, Advanced offers the MXP-568 loop driver card.
Key features
- Nittan Evolution protocol
- For MxPro 5 analogue addressable panels
- Up to 249 devices per loop
- 500mA maximum loop current
Technical specifications
-
Protocol: Nittan Evolution
-
Devices per loop (maximum): 249 detectors/call points
-
Loop current: 500mA max
-
Power supply: 24V DC
-
Compatibility: MxPro 5 series panels
