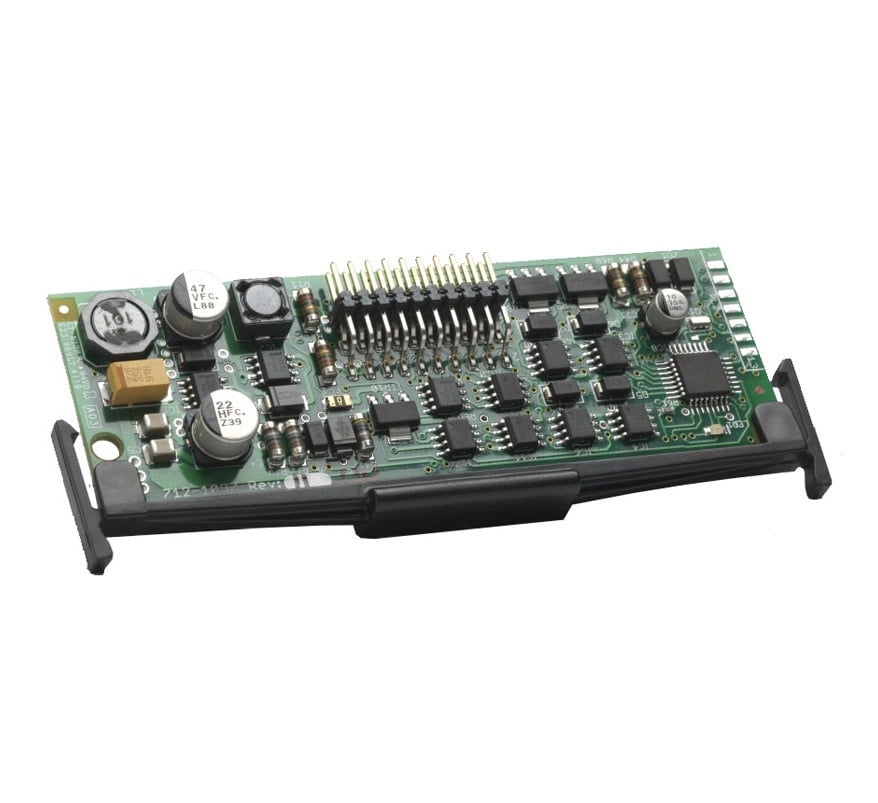

The Advanced MXP-568 is a plug-in loop driver card for the MxPro 5 range of analogue addressable fire alarm control panels. It provides control of, and connection to, one detector loop and supports the Apollo (XP95, Discovery and Soteria), Hochiki ESP and Argus Vega protocols.
Use it to add loops to an MxPro 5 1-4 loop or 2-8 loop panel (one card per additional loop). For Nittan Evolution systems the MXP-567 card is used instead.
Key features
- For use with MxPro 5 analogue addressable panels
- Compatible with Apollo XP95, Discovery and Soteria (CoreProtocol), Hochiki ESP and Argus Vega protocols
- One card required per additional loop
- Also listed by Advanced as the additional loop card for EvacGo evacuation alert panels
Technical specifications
- Power supply: 24 V DC
- Loop current: 500 mA max
- Devices per loop (max): Apollo Soteria 254; Apollo XP95 and Discovery 126; Hochiki 127; Argus 240
- Part code: MXP-568
