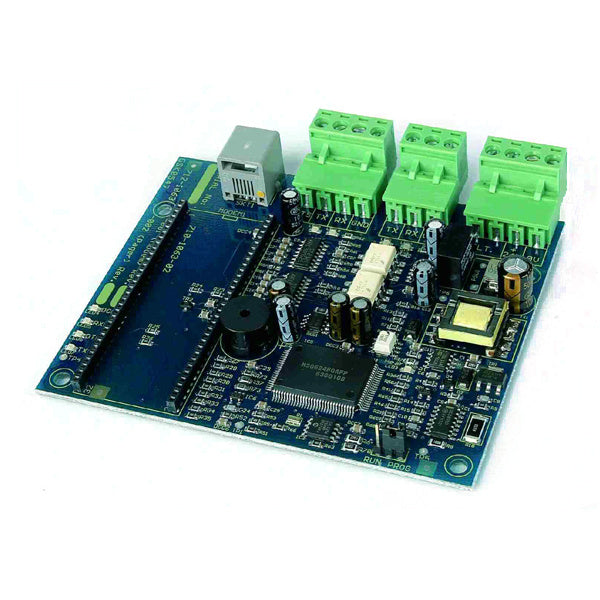

The Advanced MXP-547 is a programmable ESPA pager interface card that connects third-party paging systems to MxPro 5 fire alarm control equipment. It uses the industry-standard ESPA 4.4.4 protocol and connects to the equipment via a serial data connection.
Specific event types, such as Fire, Alarm, Pre-Alarm and Fault, can be sent to individual pagers and/or groups of pagers, and an optional input can monitor pager fault conditions.
Key features
- ESPA 4.4.4 protocol
- Up to 250 pager addresses and 50 pager groups
- Up to 8 configurable shifts per weekday/weekend
- Each pager address can cover 2 zone ranges
- Zone and/or point information can be sent to the pager
- User-defined texts; basic event type text can be configured
- Easily configured via pager PC software (PC-NET-011 MxPager)
- 3-year warranty as standard
Technical specifications
-
Power supply: 15-30V DC (e.g. wired from the panel 24V auxiliary supply)
-
Supply current: 100mA typical at 24V DC
-
Pager interface: RS232, galvanically (opto) isolated
-
Fault input: Non-monitored or monitored (10K EOL, 470R active)
-
Event types supported: Fire Alarm, Test Alarm, Plant Alarm, Pre-Alarm, Fault and Disablement
-
Operating temperature: -5°C to 50°C
-
Humidity: 95% non-condensing
-
Versions: MXP-547 card; MXP-547F fitted; MXP-547-BX boxed
-
Compatibility: MxPro 5 series panels
