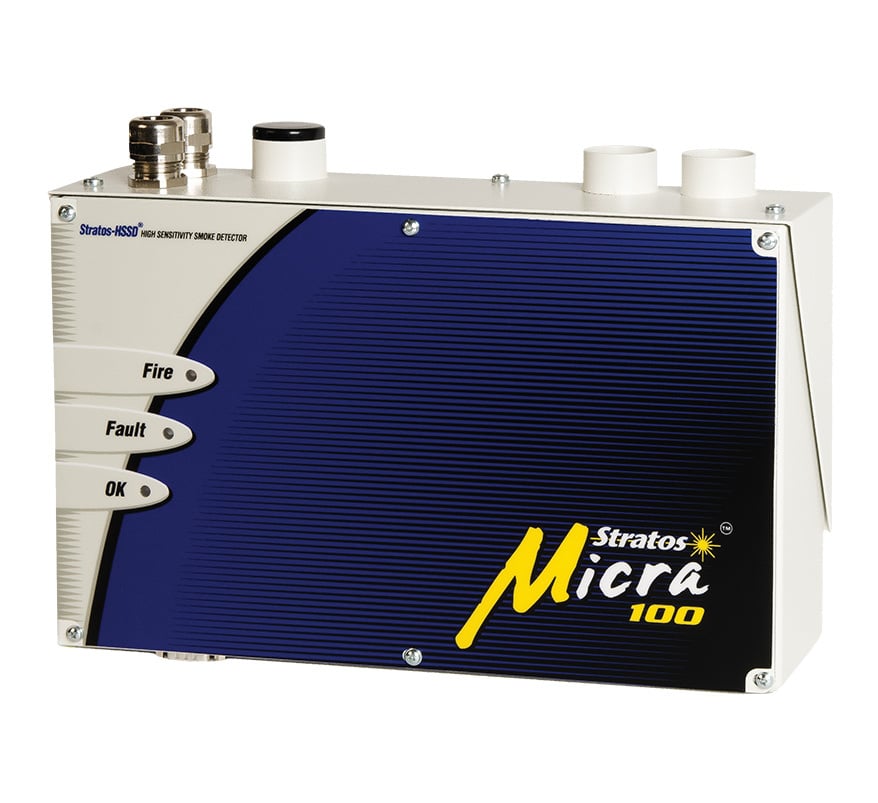

The AirSense Stratos Micra 100 (9-30764) is a compact, high-sensitivity aspirating smoke detector (ASD) using laser-based forward light scatter for very early warning of fire. This version is supplied with the 9-30436 input/output expansion card already fitted.
ClassiFire artificial intelligence automatically sets the detector to the best sensitivity for the protected area, and the detector fits into a docking station so that pipes and cables can be installed first and the detector fitted at commissioning. Typical applications include data storage, computer rooms, equipment racks, plant and motor rooms, air-conditioning units, prison cells and heritage properties.
Key features
- High sensitivity from laser-based forward light scatter
- ClassiFire perceptive artificial intelligence adjusts operating parameters for day-to-day changes in the environment
- LDD laser dust discrimination to avoid unwanted alarms from dust
- Volt-free fire and fault relay outputs for monitoring by fire or BMS systems
- Input/output expansion card (9-30436) pre-fitted
- RS-485 SenseNET networking on board: up to 127 detectors per loop, with Command Module and remote display options
- CPR, LPCB, VdS, NF and CSIRO approved
Technical specifications
- Detection principle: laser light scattering mass detection and particle evaluation
- Sensitivity range: 0.0015 to 25 %obs/m
- Particle sensitivity range: 0.003 to 10 microns
- Alarm levels: 4 (Aux, Pre-alarm, Alarm, Alarm 2)
- Sampling pipe: 100 m combined (50 m in moving air)
- Sampling holes: up to 20
- Inlet: 2 x 27 mm OD
- Exhaust: 1 (optional)
- Operating voltage: 21.6 to 26.4 VDC
- Current consumption: 400 mA
- Standard outputs: Alarm (NO) and Fault (NC), 500 mA at 30 V
- Dimensions: 145 x 220 x 85 mm (W x H x D)
- Weight: 3.8 kg
- Enclosure: sheet steel, cream
- Mounting: wall mount
- Cable entries: 2 x M20
- Operating temperature: -10 to +60°C
- Relative humidity: 0 to 90% non-condensing
- Environment: indoor, IP40
- Certification: EN 54-20
