AirSense Stratos Micra 25 High Sensitivity Smoke Detector with I/O Card (9-30760)
SKU: 9-30760Brand: AirSense
| Out of stock | Qty | Delivery |
|---|---|---|
| All locations | 0 | Lead time 2 to 6 weeks, estimate only |
Need help choosing?
Our UK team can check compatibility, stock and project pricing for you.
0113 518 0540info@jemsystems.co.uk
AirSense Stratos Micra 25 High Sensitivity Smoke Detector with I/O Card (9-30760)
£1,206.00
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- High sensitivity from laser-based forward light scatter
- ClassiFire perceptive artificial intelligence adjusts operating parameters for day-to-day changes in the environment
- LDD laser dust discrimination to avoid unwanted alarms from dust
- Volt-free fire and fault relay outputs for monitoring by fire or BMS systems
- Input/output expansion card (9-30436) pre-fitted
- RS-485 SenseNET networking on board: up to 127 detectors per loop, with Command Module and remote display options
Frequently bought together
AirSense
AirSense Stratos Remote Display Unit (RDU) (9-30802)
Sale price£224.20
Out of stock. Lead time 2 to 6 weeks, estimate only
AirSense
AirSense Stratos Remote Display Unit 19" Sub Frame (9-30814)
Sale price£312.95
Out of stock. Lead time 2 to 6 weeks, estimate only
AirSense
AirSense Stratos Remote Display Unit Rack Mount Blanking Plate (9-30812)
Sale price£23.50
Out of stock. Lead time 2 to 6 weeks, estimate only
AirSense
AirSense Stratos Remote Display Unit Relay Expansion Card (9-30803)
Sale price£63.20
Out of stock. Lead time 2 to 6 weeks, estimate only
AirSense
AirSense Stratos Removable Union Socket (27mm Pipe, Red) (9-10915)
Sale price£4.45
Out of stock. Lead time 2 to 6 weeks, estimate onlyProduct details

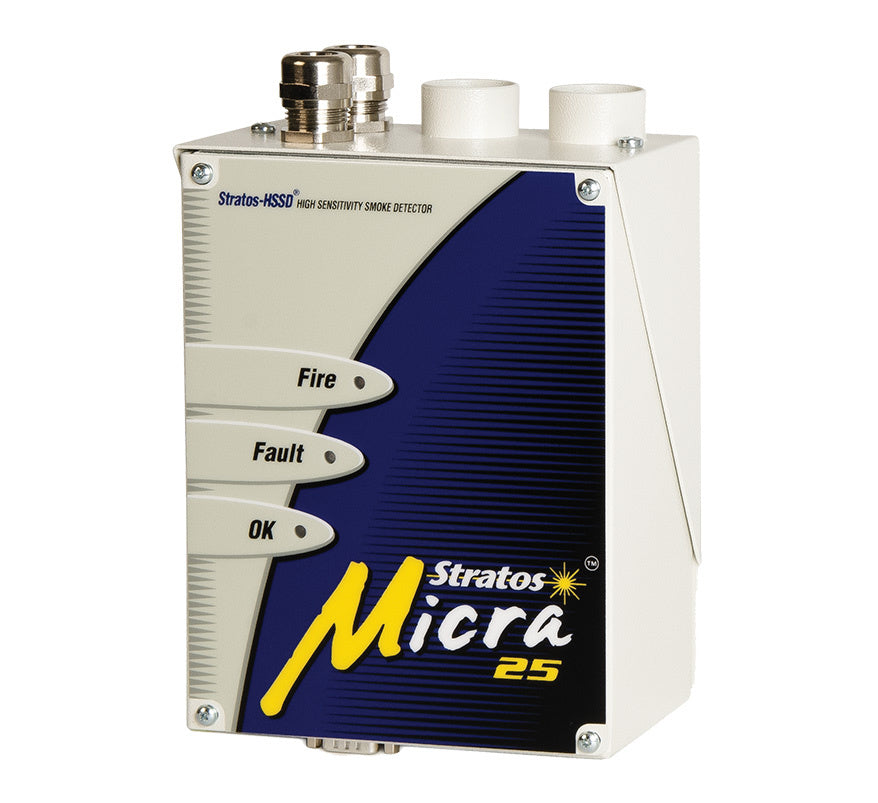

The AirSense Stratos Micra 25 (9-30760) is a compact, high-sensitivity aspirating smoke detector (ASD) using laser-based forward light scatter for very early warning of fire. This version is supplied with the 9-30436 input/output expansion card already fitted.
ClassiFire artificial intelligence automatically sets the detector to the best sensitivity for the protected area, and the detector fits into a docking station so that pipes and cables can be installed first and the detector fitted at commissioning. Typical applications include data storage, computer rooms, equipment racks, plant and motor rooms, air-conditioning units, prison cells and heritage properties.
Key features
- High sensitivity from laser-based forward light scatter
- ClassiFire perceptive artificial intelligence adjusts operating parameters for day-to-day changes in the environment
- LDD laser dust discrimination to avoid unwanted alarms from dust
- Volt-free fire and fault relay outputs for monitoring by fire or BMS systems
- Input/output expansion card (9-30436) pre-fitted
- RS-485 SenseNET networking on board: up to 127 detectors per loop, with Command Module and remote display options
- CPR, LPCB, VdS, NF and CSIRO approved
Technical specifications
- Detection principle: laser light scattering mass detection and particle evaluation
- Sensitivity range: 0.0015 to 25 %obs/m
- Particle sensitivity range: 0.003 to 10 microns
- Alarm levels: 4 (Aux, Pre-alarm, Alarm, Alarm 2)
- Sampling pipe: 50 m maximum run (25 m in moving air)
- Sampling holes: up to 10
- Inlet: 1 x 27 mm OD
- Exhaust: 1 (optional)
- Operating voltage: 21.6 to 26.4 VDC
- Current consumption: 250 mA
- Standard outputs: Alarm (NO) and Fault (NC), 500 mA at 30 V
- Dimensions: 145 x 220 x 85 mm (W x H x D)
- Weight: 1.7 kg
- Enclosure: sheet steel, cream
- Mounting: wall mount
- Cable entries: 2 x M20
- Operating temperature: -10 to +60°C
- Relative humidity: 0 to 90% non-condensing
- Environment: indoor, IP40
- Certification: EN 54-20
