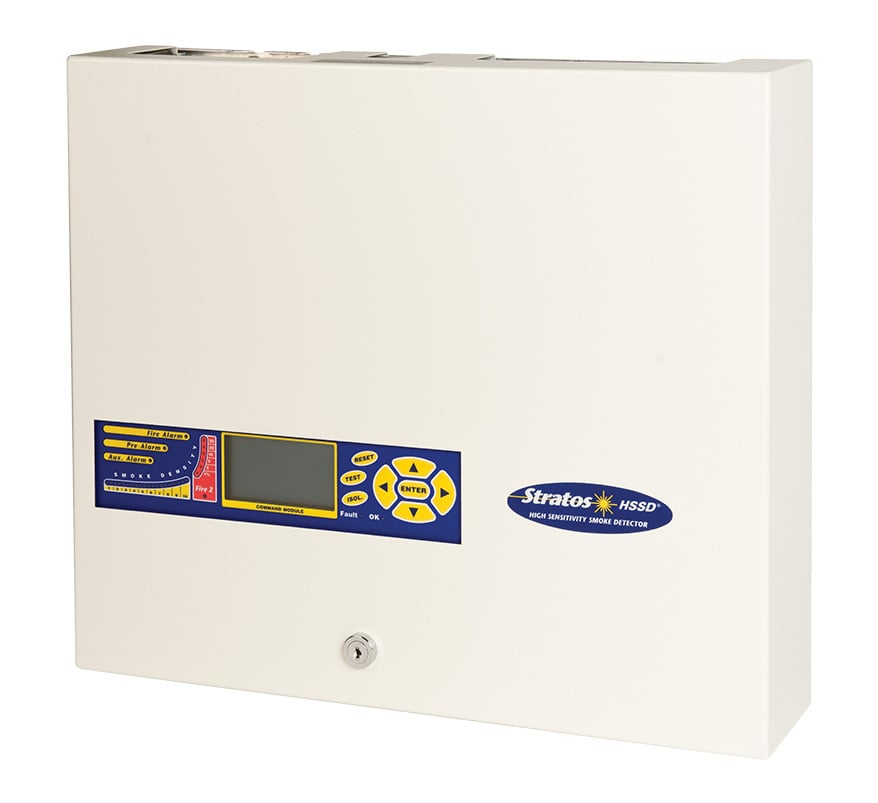

The AirSense Stratos Standalone Command Module (9-30709) is the wall-mounted, steel-enclosure version of the Stratos Command Module for networks of AirSense aspirating smoke detectors (ASD).
The Stratos Command Module provides a single location for display, control and interfacing on systems of up to 127 AirSense detectors, and allows all detector functions to be programmed globally. Its bargraph automatically shows the status of the detector with the highest alarm level, and the PIN-protected programmer lets detector settings be entered globally to cut commissioning time.
Key features
- Network control of up to 127 detectors
- RS-485 communications built in for networking and remote communications
- Built-in short-circuit isolators
- Integral bargraph and LCD with keypad
- Addressable APIC protocol interface cards and remote display units available
- Compatible with MatrixScan virtual addressable location detection
Technical specifications
- Operating voltage: 21.6 to 26.4 VDC
- Current consumption: 250 mA
- Outputs: 5 (Pre-alarm, Alarm, Alarm 2, Aux (NO) and Fault (NC)), 500 mA at 30 V
- Status indication: LED and LCD; keypad user interface
- Dimensions: 427 x 372 x 95 mm (W x H x D)
- Weight: 5.2 kg
- Enclosure: sheet steel, cream
- Mounting: wall mount
- Cable entries: 6 x M20
- Operating temperature: -10 to +60°C
- Relative humidity: 0 to 90% non-condensing
- Environment: indoor, IP40
