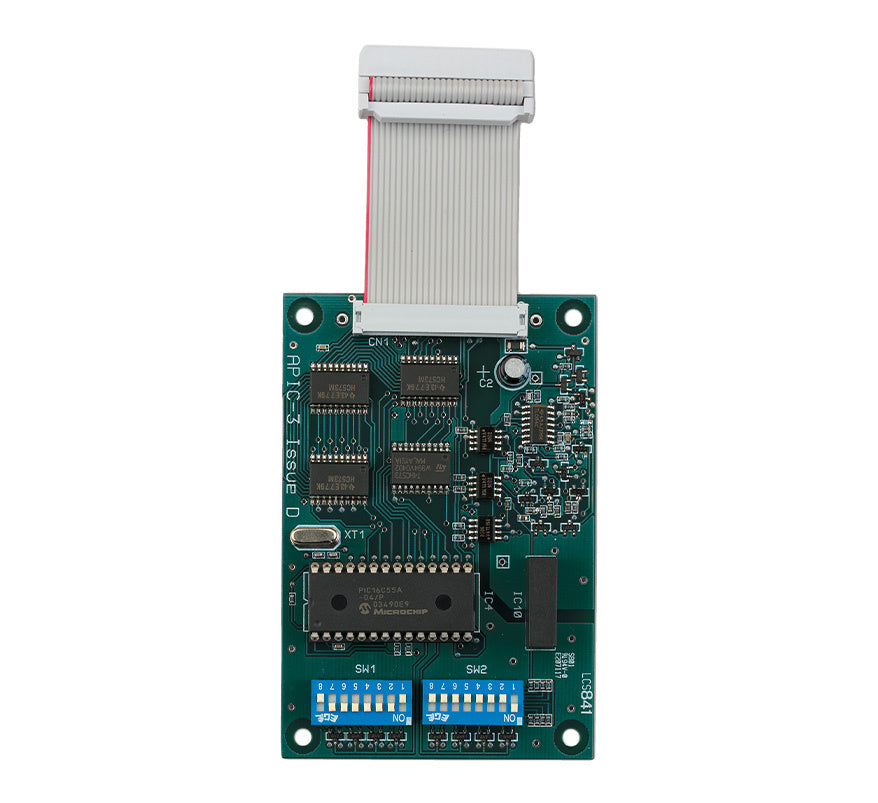

The AirSense Addressable Panel Interface Card (APIC) for the Ziton protocol (9-30437, model ZP-LSI-1) lets an aspirating smoke detector be addressed directly on the loop of a Ziton ZP3 fire alarm control panel. It plugs into the detector main control board by ribbon cable, so no extra wiring is needed.
The panel recognises the interface as device type HSSD and, depending on the panel software, provides Fault, Alert, Pre-alarm and Fire conditions (Alert is not displayed on ZP3 panels). For ZP panels running software earlier than version 3.07, the available signals should be confirmed with the manufacturer. Up to 127 sensing devices can be connected to each panel loop.
Key features
- Direct addressing on a Ziton ZP loop
- Ribbon cable connection, no hard wiring
- Piggy-backs onto the detector main board
- Address set by switches on the card
Technical specifications
- Compatibility: Ziton ZP3 control panels
- Model: ZP-LSI-1
- PCB size: 100 x 70 mm
- Weight: 50 g
- Mounting: ribbon cable with plug and socket; fixes with 3 x M4 x 18 mm stand-off spacers
- Operating temperature: -10 to +60°C
- Relative humidity: 0 to 90% non-condensing
- Environment: indoor
