AirSense ModuLaser Command Display Module (9-30782)

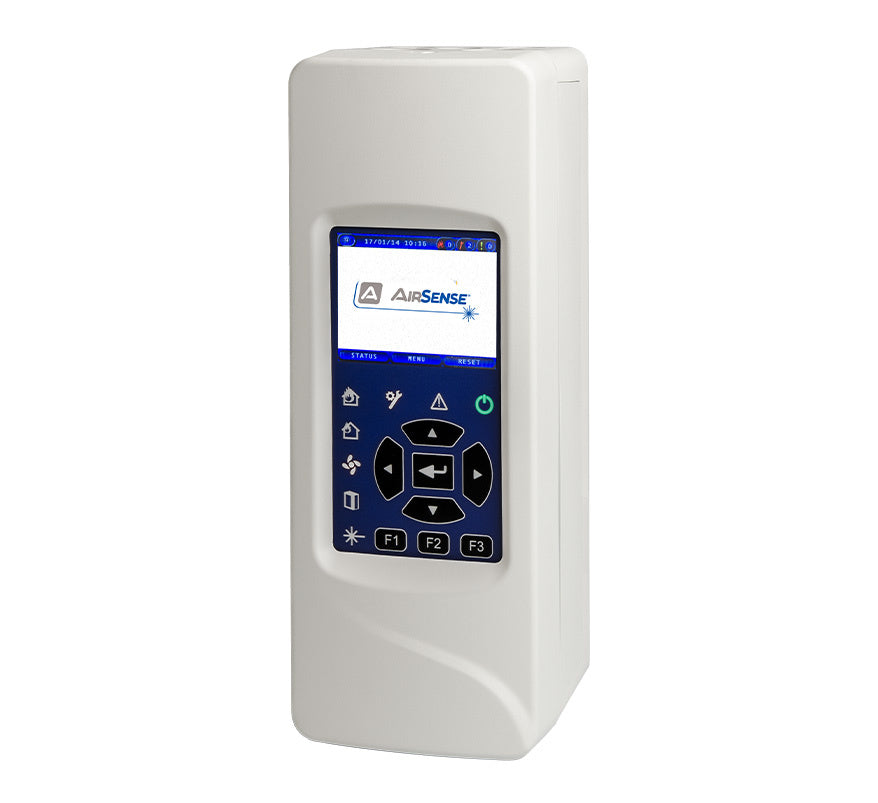

The AirSense ModuLaser Command Display Module (9-30782) is the network-level display module for the ModuLaser modular aspirating smoke detection (ASD) system. It has a colour TFT display, navigation buttons and status LEDs, and can monitor and control up to 127 modules across a SenseNET network, in any combination of ModuLaser modules and Stratos Micra and HSSD2 detectors.

It gives a single central point from which every detector on the network can be accessed and where all alarms and faults are reported. Configuration can be done from its menu-driven interface or from a computer using AirSense Remote software, and chart recordings can be viewed in graphical form on the display.

Key features

• Colour TFT display with navigation buttons and status LEDs
• Supports up to 127 modules/detectors across SenseNET
• Configuration via the front panel or AirSense Remote software
• USB (x2), IP, APIC and Modbus connectivity
• Works with ModuLaser Minimum (9-30780) and Standard (9-30781) display modules and Detector Module (9-30783)

Technical specifications

• Operating voltage: 18 to 30 VDC
• Current consumption: 232 mA at 24 VDC
• Alarm levels: 4 (Aux, Pre-alarm, Alarm, Alarm 2)
• Event log: 20,000 events per module
• RS-485: SenseNET and SenseNET+
• Dimensions: 110.5 x 133.5 x 300 mm (W x D x H)
• Weight: 1.18 kg
• Colour: grey-white (RAL 9002)
• Mounting: surface mount
• Cable entries: 3 at the top, 20 mm
• Operating temperature: -10 to +60°C (equipment); sampled air -20 to +60°C
• Relative humidity: 0 to 95% non-condensing
• Environment: indoor, IP40
• Certification: BOSEC, CPR, CSIRO, EN 54-20, LPCB, VdS (REACH and RoHS compliant)
