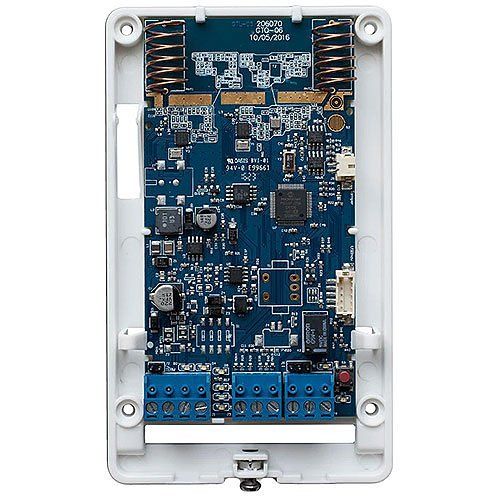

The ATS1236 wireless receiver adds wireless capabilities to the Axon panel and the Advisor Advanced panel. The wireless expander supports most of the legacy 433 MHz 63-bit transmitters as well as the new generation of 433 MHz LoNa transmitters of which the wireless communication is fully encrypted, avoiding unauthorized interference. Up to 32 wireless sensors and up to 16 keyfobs can be learned in. The ATS1236 wireless receiver provides two wired zone inputs and one programmable relay output.
Main Features
Expands the Axon panel or Advisor Advanced panel with 32 wireless zones
Includes two wired zone inputs
One programmable SPDT Form C relay output
Supports legacy 63-bit 433 MHz and new LoNa 433 MHz transmitters (one way)
Use the Aritech 433 LoNa repeater to improve range
Quick configuration using the Aritech "Learn Mode" technology
Removable terminals
Firmware upgradeable
Located up to 1500 m from the Axon panel or the Advisor Master panel using WCAT52/54 cable
EN50131-1/EN50131-3/EN50131-6 Grade 2 Class II, INCERT
Specifications
Compatibility
Advisor Advanced; Advisor Advanced MR 4.2 or higher
