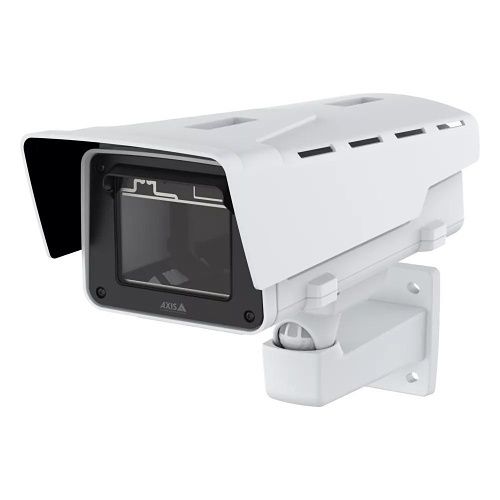

AXIS 03048-001 Outdoor Housing for Q17 and P13 Series Block / Box Cameras
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
- Robust outdoor housing for AXIS Q17 Series block cameras and P13 Series box cameras
- Carbon nanotube window heater for temperature control
- Built-in camera heater and fan
- Withstands hurricane-force winds over 60 m/s (134 mph)
- IP66, IP67, NEMA 4X and IK10-rated with IK10-rated glass
- Open casing intrusion detection
Frequently bought together
Product details
Robust outdoor housing, for use with AXIS Q17 Series block cameras and AXIS P13 Series box cameras and other selected box cameras. Carbon nanotube window heater, Built-in camera heater and fan, withstands hurricane-force of more than 60m/s (134 mph). IP66, IP67, NEMA 4X and IK10-rated, including IK10-rated glass for high-impact resistance. Open casing intrusion detection. Support for optional IR illuminator kits and corridor format. Powered by IEEE 802.3af Type2 Class 4 (PoE+) or 10-28 V DC power with redundancy. RJ45 connection or optional IDC punch connector. Arctic Temperature Control for start-up and operating in -40°C to +60°C (-40 ºF to 140 ºF). Includes removable sunshield, wall bracket and cable glands. Midspan or power supply not included.
- Robust outdoor housing for AXIS Q17 Series block cameras and P13 Series box cameras
- Carbon nanotube window heater for temperature control
- Built-in camera heater and fan
- Withstands hurricane-force winds over 60 m/s (134 mph)
- IP66, IP67, NEMA 4X and IK10-rated with IK10-rated glass
- Open casing intrusion detection
- Supports optional IR illuminator kits and corridor format
- Powered by IEEE 802.3af Type2 Class 4 (PoE+) or 10-28 V DC with redundancy
- RJ45 connection or optional IDC punch connector
- Arctic Temperature Control for operation from -40°C to +60°C
Specifications
| Depth | 58.5cm |
|---|---|
| Height | 23.5cm |
| Limited Warranty | 5 Years |
| Width | 20.5cm |
| RoHS Compliant | Compliant |
| WEEE Compliant | Compliant |
Datasheet
AXIS 03048-001 Outdoor Housing for Q17 and P13 Series Block / Box Cameras Need the datasheet? Our team will email it to you. Request datasheet
