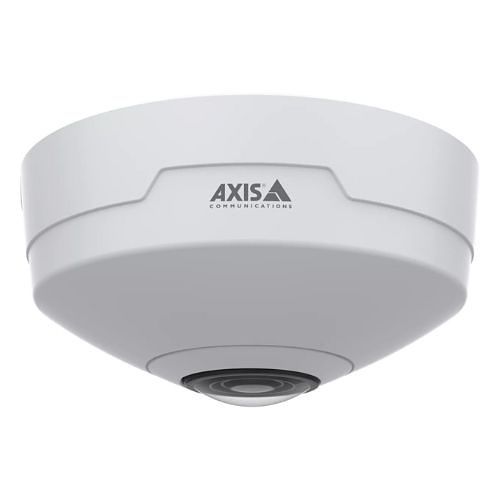

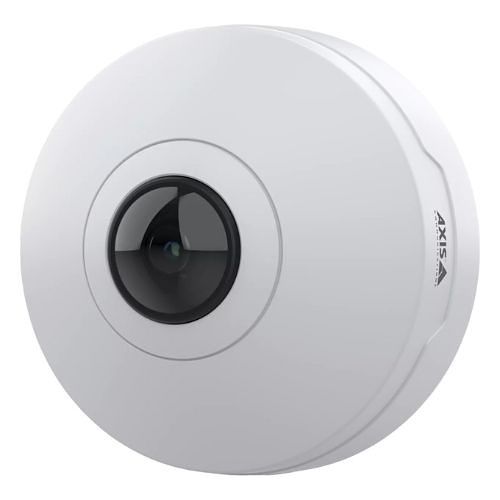

AXIS M4328-P M43 Series, 12MP Panoramic Camera, 1.2mm Fixed Lens, White
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 16 | 2 to 3 working days |
- 12MP resolution for sharp, detailed images
- 180°/360° panoramic coverage with no blind spots
- Advanced deep learning analytics on the edge
- Ultra-compact size for discreet indoor surveillance
- Axis Lightfinder and Forensic WDR for true colors in low light
- Digital PTZ for customizable view areas and zoom levels
Frequently bought together
Product details
Offering 180°/360° coverage and no blind spots, this fisheye camera supports advanced analytics based on deep learning on the edge. Its ultra-compact size makes it ideal for wherever you need high-quality indoor surveillance.
Great video performance
AXIS M4328-P offers a complete overview with outstanding sharpness, great detail, and no blind spots. This 12 MP camera delivers 360° or 180° panoramic overviews. It includesAxis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. With its stereoscopic lens and digital PTZ, you can choose what to see in the view areas and at what zoom level in up to four areas simultaneously. Furthermore, built on ARTPEC-8, the latest Axis system-on-chip (SoC), this panoramic camera enables improved image processing and great image quality.
Deep learning on the edge
This indoor fisheye camera includes adeep learning processing unit (DLPU)enabling improved processing and storage capabilities. Plus, you can collect and analyze even more data than before - on the edge. Additionally, it delivers valuablemetadata, facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, it's possible to detect and classify moving objects in a scene - all tailored to specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge.
Great look and ease of installation
This discreet, ultra-compact, affordable camera is quick and easy to install. With accessory casings available, it can also be repainted to blend in with any surroundings. It's delivered factory-focused. And, thanks to digital roll functionality, you can remotely adjust the rotation of the camera overview - no need to do it manually on the camera. Furthermore, AxisZipstream, with support for H.264 and H.265, significantly reduces bandwidth and storage requirements without compromising image quality.
- 12MP resolution for sharp, detailed images
- 180°/360° panoramic coverage with no blind spots
- Advanced deep learning analytics on the edge
- Ultra-compact size for discreet indoor surveillance
- Axis Lightfinder and Forensic WDR for true colors in low light
- Digital PTZ for customizable view areas and zoom levels
- Built on ARTPEC-8 for improved image processing
- AXIS Object Analytics for detecting and classifying objects
- Quick and easy installation with factory-focused lens
- AxisZipstream reduces bandwidth and storage needs
Specifications
| Connectivity Technology | Wired |
|---|---|
| Diameter | 101.0mm |
| Effective Camera Resolution | 12MP |
| Environmental Certification | REACH; RoHS |
| Environmentally Friendly | Yes |
| Features | 3D Digital Noise Reduction; Back Light Compensation (BLC); Cross Line Detection; Day/Night; Highlight Compensation (HLC); Human Detection; Mirror; Motion Detection; Noise Detection; Password Protection; Vehicle Detection; Wide Dynamic Range |
| Field of View | Horizontal; Vertical |
| Focal Length | 1.2mm |
| Form Factor | Fisheye |
| Height | 51.0mm |
| Image Sensor Type | CMOS |
| Indoor/Outdoor | Indoor |
| Ingress Protection Rating | IP42 |
| Lens Type | Fixed |
| Limited Warranty | 3-Year |
| Maximum Aperture | f/2.2 |
| Maximum Focal Length | 1.2mm |
| Maximum Video Resolution | 3840 x 2160 |
| Mount Type | Junction Box Mount |
| Network (RJ-45) | Yes |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Package Contents |
|
| Packaged Quantity | 1 |
| Product Series | M43 |
| Product Type | Panoramic Cameras |
| Recording Formats | H.264; H.265 / HEVC |
| Storage Type | SD Card |
| TAA Compliant | Yes |
| Video Resolution | 1280 x 720 |
| Weight | 300.00g |
| Wide Dynamic Range | Yes |
| Maximum Operating Temperature | 40°C |
| Colour | White |
| Impact Protection Rating | IK08 |
| Lens Included | Yes |
| Longest Shutter Speed | 1/2 Second |
| Manufacturer | Axis Communications |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 1.2mm |
| Minimum Illumination | 0.04lux |
| Minimum Operating Temperature | 0°C |
| Operating Humidity | 85% |
| Remote Management | Yes |
| RoHS Compliant | Compliant |
| Shortest Shutter Speed | 1/8100 Second |
| Video Formats | H.264 / AVC; H.264 Baseline Profile; H.264 High Profile; H.264 Main Profile; H.265 / HEVC; Motion JPEG; Zipstream |
| WEEE Compliant | Compliant |
