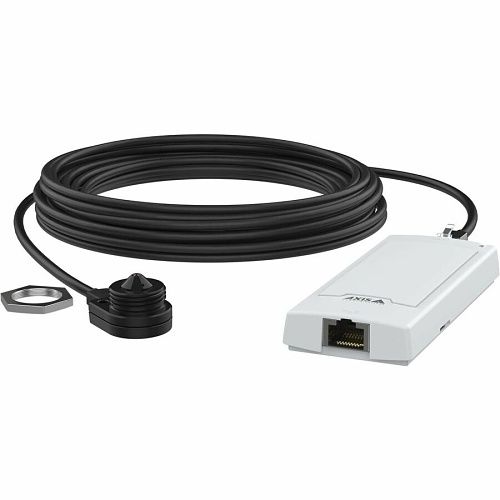

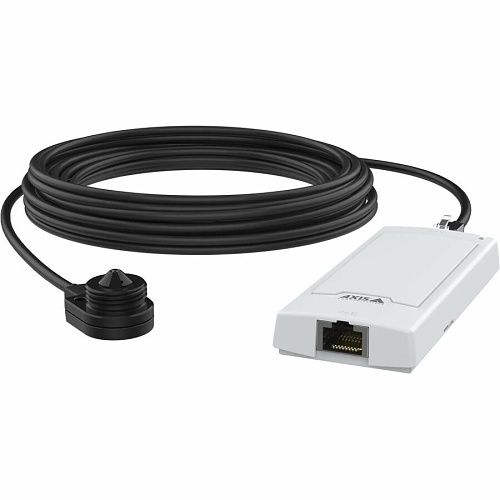

Based on the modular concept, AXIS P1265 Mk II features a tiny, pinhole-sized sensor unit that connects via cable to the main unit, so the two parts can be placed separately from each other. This pinhole sensor unit offers extremely discreet installation. Ideal for a wide range of indoor applications, it's easy to install in tight spaces, for instance, ATMs and ticketing machines. The sensor can be mounted up to 15 m from the main unit and a detachable cable ensures flexible installation and upgrade. Additionally, a deep learning processing unit enables the use of advanced analytics.
Main Features
Network camera - Helps achieve high-quality video results
Up to 1920 x 1080 resolution for surveillance in real-time
CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
3.70 mm maximum focal length with sharp output to help identify and locate the object with added efficiency
f/2.5 maximum aperture for reliable, detailed, and sharp output with added dependability
Full HD recording format for stunning, vivid video results with maximum efficiency
Fixed camera iris effectively compensates for changes in the level of light by adjusting the exposure time or using gain
Fixed lens type is ideal for indoor video surveillance where light levels are constant and unchanged
PoE power source type for your network camera provides maximum energy feasibility and added surveillance productivity
Wide Dynamic Range feature for maximum efficiency and convenience
AI Analytics; HTTPS Encryption; Human Detection; Mirror; Motion Detection; Password Protection; Privacy Masking; SD Card Local Storage; Vehicle Detection; White Balance; Wide Dynamic Range
Field of View
Horizontal; Vertical
Focal Length
3.7mm
Form Factor
Modular
Image Sensor Type
CMOS
Indoor/Outdoor
Indoor; Outdoor
Lens Mount Type
M12 (S-Mount)
Lens Type
Fixed
Limited Warranty
1-Year
Material
Plastic; Steel
Maximum Aperture
f/2.5
Maximum Focal Length
3.7mm
Maximum Resolution
1280 x 720
Maximum Video Resolution
1920 x 1080
Network (RJ-45)
Yes

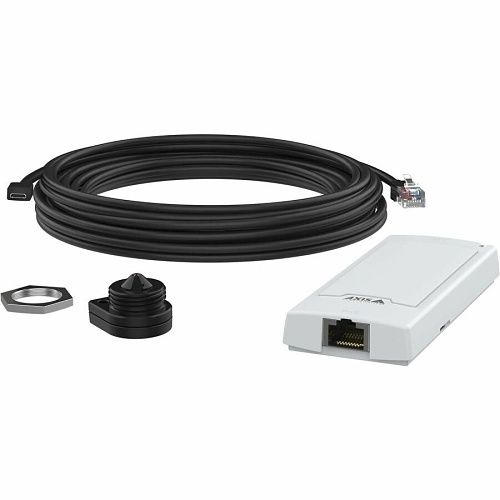

Package Contents
P1265 Mk II Modular Pinhole Camera
Installation Guide
Owner Authentication Key Main Unit
Sensor Unit
8 m (26 ft) Black Cable
1 x Locking Nut
Package Type
Box
Packaged Quantity
1
Product Series
P12
Product Type
Fixed cameras
Recording Formats
H.264; H.265 / HEVC
Storage Type
SD Card
TAA Compliant
Yes
Video Resolution
1280 x 720
Weight
75.00g
Wide Dynamic Range
Yes
Maximum Operating Temperature
60°C
Aperture
f/2.5
Colour
White
Country of Origin
TH
Lens Included
Yes
Longest Shutter Speed
1/5 Second
Manufacturer
Axis Communications
Maximum Frame Rate
30fps
Maximum Power Consumption
4W
Memory Card Supported
Yes
Minimum Focal Length
3.7mm
Minimum Illumination
0.20lux
Minimum Operating Temperature
-20°C
Operating Humidity
85%
Power over Ethernet (PoE)
Yes
Remote Management
Yes
RoHS Compliant
Compliant
Shortest Shutter Speed
1/16500 Second
Supported Network Protocols
IPv6
Video Formats
H.264 / AVC; H.264 Baseline Profile; H.264 High Profile; H.264 Main Profile; H.265 / HEVC; H.265 Main Profile; Motion JPEG; Zipstream
