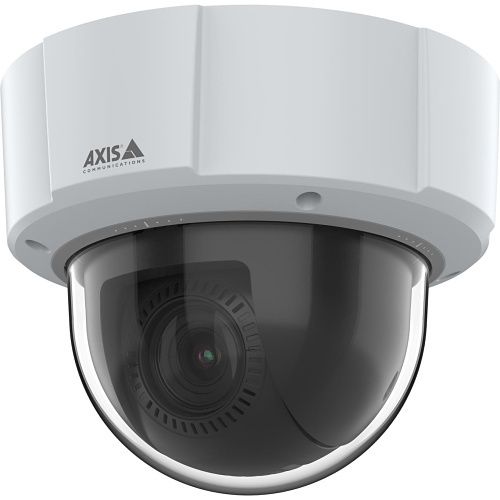

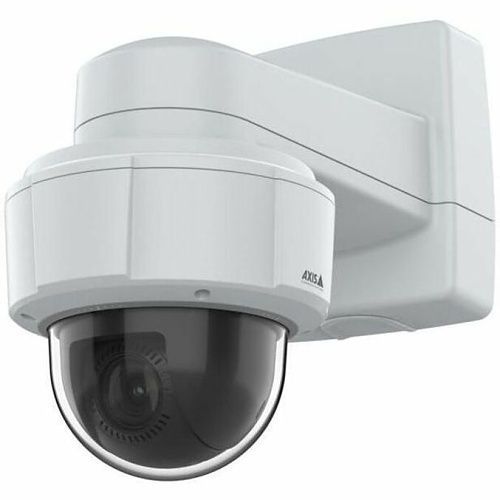

This compact PTZ camera with continuous 360° pan delivers excellent image quality with a 4MP sensor producing HD video up to 50 fps, for highly detailed footage even when zoomed in up to x10. Includes forensic WDR and a DLPU for analytics processing. This compact PTZ camera can be installed indoors and outdoors, with three distinct profiles providing different image settings to optimize monitoring of certain scenarios. Forensic WDR and Lightfinder 2.0 deliver full-colour images in low or contrasting lighting, plus IR sensitivity to produce monochrome images in areas with external IR illumination. Ideal for smaller businesses wanting to increase security, users can rely on human and vehicle identification via Axis Object Analytics, whilst the deep learning processing unit (DLPU) provides intelligent granular object classification. Furthermore, Axis Edge Vault protects the camera, securing sensitive data on the camera and further protecting the wider network. Includes two-way audio and I/O connectivity for equipment such as microphones.
Main Features
Compact PTZ camera suitable for both indoor and outdoor installation
Continuous 360° pan and x10 optical zoom for close-up monitoring
4MP Sensor delivers HD video in up to 2688x1512 (169) resolution
Identification of humans and different types of vehicles thanks to Axis Object Analytics
Supports integration of equipment such as microphones via audio and I/O ports
Specifications
Connectivity Technology
Wired
Effective Camera Resolution
4MP
Environmental Certification
EU RoHS; REACH; RoHS
Environmentally Friendly
Yes
Features
3D Noise Reduction; Day/Night; HTTPS Encryption; Ingress Protection; Noise Reduction; Password Protection; Privacy Masking; PTZ; White Balance; Wide Dynamic Range
Field of View
Horizontal; Vertical
Form Factor
Dome
Image Sensor Type
RGB CMOS
Indoor/Outdoor
Indoor; Outdoor
Ingress Protection Rating
IP66
Input Voltage
20V DC; 28V DC
Lens Type
Varifocal
Limited Warranty
3-Year
Maximum Aperture
f/1.6
Maximum Focal Length
47.0mm
Minimum Aperture
f/3
Network (RJ-45)
Yes
Optical Zoom
10x
Package Contents
M5526-E PTZ Camera
Installation guide
Bayonet adapter
Terminal block connectors
Connector guard
Owner authentication key
Product Type
Network Camera
Recording Formats
H.264; H.265 / HEVC
Storage Type
SD Card
Video Resolution
1280 x 720
Weight
1.00kg
Maximum Operating Temperature
50°C
Colour
White
Impact Protection Rating
IK09
Lens Included
Yes
Longest Shutter Speed
0.2 Second
Manufacturer
Axis Communications
Maximum Frame Rate
60fps
Minimum Focal Length
4.7mm
Minimum Operating Temperature
-20°C
Operating Humidity
100%
Remote Management
Yes
RoHS Compliant
Compliant
Shortest Shutter Speed
1/27000 Second
Video Formats
H.264 / AVC; H.264 Baseline Profile; H.264 High Profile; H.264 Main Profile; H.265 / HEVC; H.265 Main Profile; Motion JPEG; Zipstream
