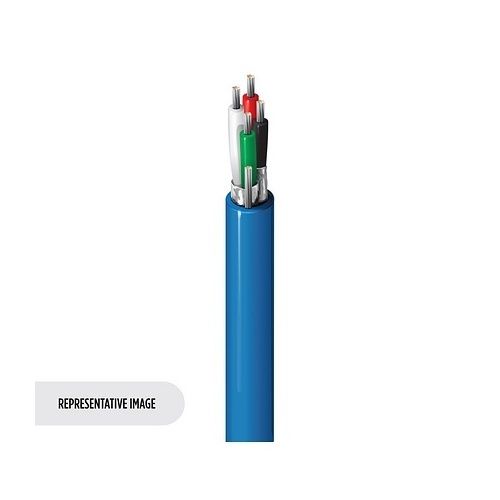

Name: Belden 1325A D151000 22/2 Indoor Shielded TC Plenum Security and Audio Cable, CMP, 1000' Reel, Blue
Brand: Belden
SKU: 1325A D151000
Price: 746.75 GBP
Availability: InStock

Belden 1325A D151000 22/2 Indoor Shielded TC Plenum Security and Audio Cable, CMP, 1000' Reel, Blue

Roll over image to zoom in Click on image to zoom

Security, speaker and control, 2-pair 22AWG (7 x 30) tinned copper, flamarrest insulation, individually foil shielded, flamarrest jacket, CMP.

Main Features

22/2 Indoor Shielded TC Plenum Cable
Ideal for Security, Speaker, and Control Applications
1000' Reel for Extensive Coverage
Blue Color for Easy Identification
Flamarrest Insulation and Jacket for Safety
Individually Foil Shielded for Signal Integrity
CMP Rated for Plenum Use

Specifications

American Wire Gauge	22AWG
Application/Usage	Intercom and PA Systems; Power-Limited Control Systems; Security Systems; Sound and Audio Systems
Cable Length	305m
Cable Rating	Plenum
Conductor Count	4
Conductor Material	Tinned Copper
Device Supported	Intercom and PA Systems; Power-Limited Control Systems; Security Systems; Sound and Audio Systems
Environmental Certification	RoHS 2; WEEE
Indoor/Outdoor	Indoor
Insulation Material	PVC-FR
Jacket Material	PVC-LS
Jacket Type	Standard
Limited Warranty	10-Year
Material	PVC; Tinned Copper
Number of Conductors	4
Number of Pairs	2
Package Type	Reel/Spool
Packaged Quantity	305
Product Series	Security & Sound
Product Type	Audio Cable
Shielding	Yes
Solid or Stranded	Stranded
Colour	Blue
Fibre Category	OS2
Manufacturer	Belden CDT, Inc
Operating Temperature (T-T)	0-75°C
RoHS Compliant	Compliant
WEEE Compliant	Compliant
