Name: Belden 1694ANH.01305 18 AWG Solid BC SDI Coaxial Cable, 75 Ohm, RG-6, 305m Reel, Green
Brand: Belden
SKU: 1694ANH.01305
Price: 894.75 GBP
Availability: InStock

Belden 1694ANH.01305 18 AWG Solid BC SDI Coaxial Cable, 75 Ohm, RG-6, 305m Reel, Green

Roll over image to zoom in Click on image to zoom

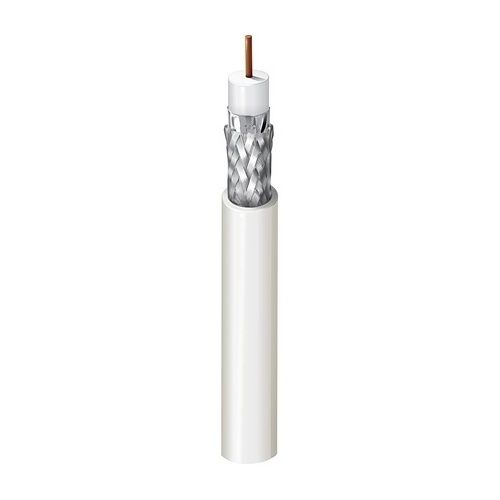

75 Ohm SDI Coax, RG-6, 18AWG solid bare copper conductor, PE insulation, foil 95% tinned copper braid shield, LSZH jacket, Dca. IEC 60332-3-24.

Main Features

18 AWG solid bare copper conductor
75 Ohm impedance for SDI applications
RG-6 coaxial cable type
305m reel for extended use
Green LSZH jacket for safety
Foil and 95% tinned copper braid shield
PE insulation for durability

Specifications

American Wire Gauge	18AWG
Cable Length	305m
Cable Type	Coaxial
CPR Euroclass Rating	Dca
Device Supported	Digital Video
Impedance	75Ohm
Insulation Material	PE
Jacket Type	Halogen-Free Jacket
Limited Warranty	10-Year
Material	Bare Copper; LSZH
Number of Conductors	1
Package Type	Reel/Spool
Product Series	Coaxial
Product Type	Broadcast Cable
Shielding	Yes
Solid or Stranded	Solid
Colour	Green
Manufacturer	Belden CDT, Inc
RoHS Compliant	Compliant
WEEE Compliant	Compliant
