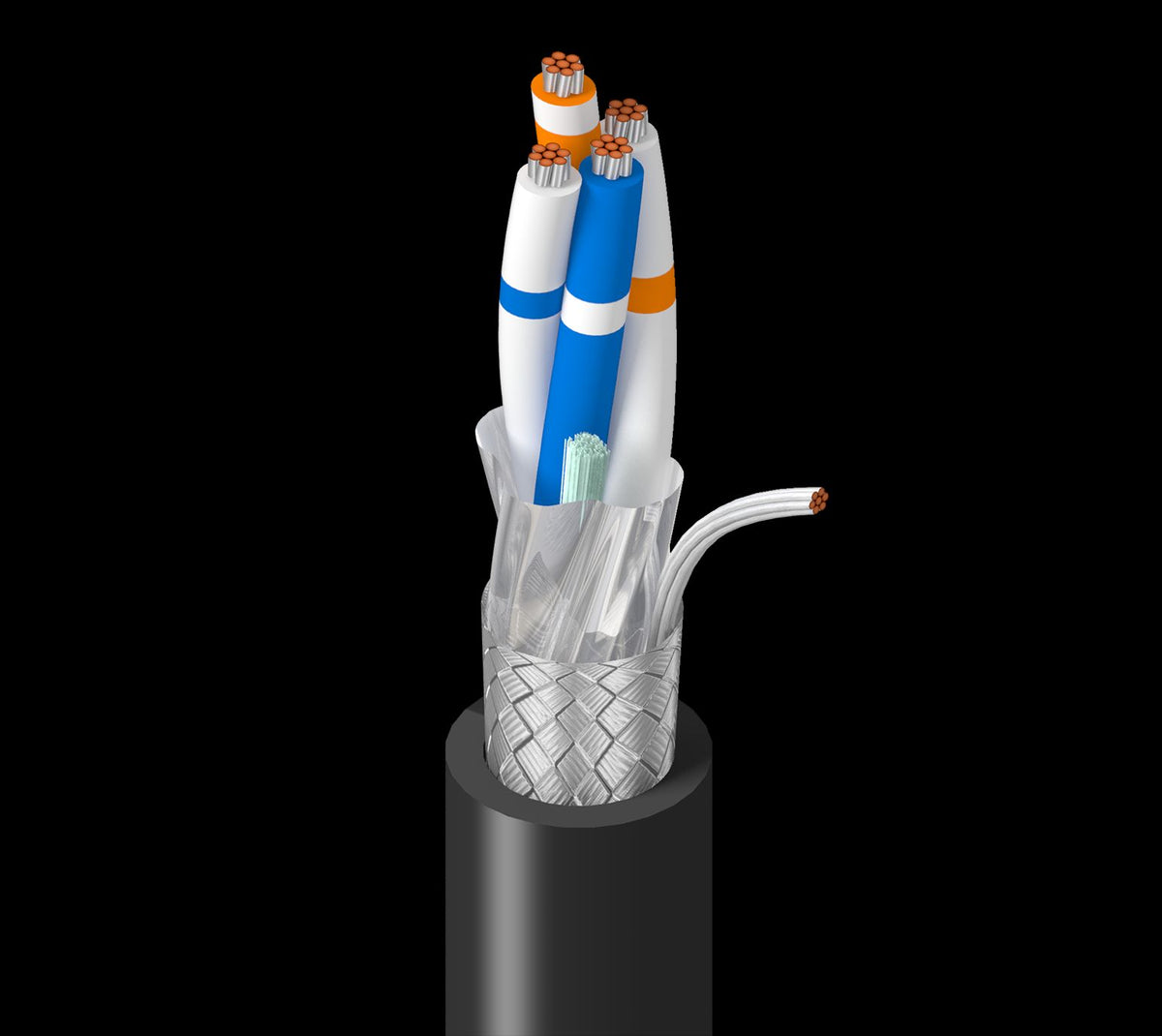

Belden 3107ENH.01500 RS‑485 2‑Pair 22AWG LSZH Shielded Data Transmission Cable
SKU: 3107ENH.01500Brand: Belden
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
RS-485, 2 Pair AWG 22 Tinned Copper - Stranded, Polyolefin (PO, PE, PP) insulation, Foil + Braid(s) shielding, LSZH / FRNC jacket. Specifications American Wire Gauge 22AWG Amperage 2.7A Application/Usage Instrumentation and computer cable. For EIA RS-485 transmissions applications Cable...
Frequently bought together
Belden
Belden 3108A 0101000 22AWG 3-Pair Multi-Conductor, Non-Plenum, 1000', Black
Sale price£2,411.00
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Belden
Belden 3108DB 0101000 22AWG 3-Pair Shielded Multi-Pair Cable, Stranded, 304.8m (1000')
Sale price£3,154.95
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Belden
Belden 3109A 0101000 22AWG 4-Pair Multi-Pair Twisted Cable, 304.8m (1000'), Black
Sale price£3,447.10
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Belden
Belden 3109DB 0101000 22AWG 4-Pair Tinned Copper Cable, Shielded, 304.8m (1000')
Sale price£4,171.05
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Belden
Belden 3658GFS 000500 Access Control Cable, 16-Conductor, Shielded, CMP, Banana Peel Jacket
Sale price£976.00
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Product details
RS-485, 2 Pair AWG 22 Tinned Copper - Stranded, Polyolefin (PO, PE, PP) insulation, Foil + Braid(s) shielding, LSZH / FRNC jacket.
Specifications
| American Wire Gauge | 22AWG |
|---|---|
| Amperage | 2.7A |
| Application/Usage | Instrumentation and computer cable. For EIA RS-485 transmissions applications |
| Cable Length | 500m |
| Cable Type | RS-485 |
| Conductor Count | 4 |
| Conductor Material | Tinned Copper |
| Diameter | 8.9mm |
| Environmental Certification | EU CE Mark; EU RoHS Compliance |
| Frequency | 1MHz |
| Impedance | 120Ohm |
| Indoor/Outdoor | Indoor; Outdoor |
| Insulation Material | PE (Polyethylene) |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Limited Warranty | 1-Year |
| Material | Beldfoil; LSZH; Polyethylene; Polyolefin; Tinned Copper |
| Number of Pairs | 2 |
| Package Type | Reel/Spool |
| Product Type | Connector Cables |
| Shielding | Yes |
| Solid or Stranded | Stranded |
| Thickness | 1mm |
| Voltage Rating | 300V |
| Maximum Operating Temperature | 80°C |
| Certifications & Standards | CENELEC Compliance: EN 50290-2-27; CPR Euroclass: Eca; IEC 60332-1-2; IEC 60754-1; IEC 60754-2; IEC 60811-404; IEC 61034-2 |
| Colour | Orange |
| Localization | English |
| Operating Temperature (T-T) | -15-80°C |
| RoHS Compliant | Compliant |
| Storage Temperature (T-T) | -45-80°C |
| Temperature | -45-80°C |
| WEEE Compliant | Compliant |
Datasheet
Belden 3107ENH.01500 RS‑485 2‑Pair 22AWG LSZH Shielded Data Transmission Cable Need the datasheet? Our team will email it to you. Request datasheet
