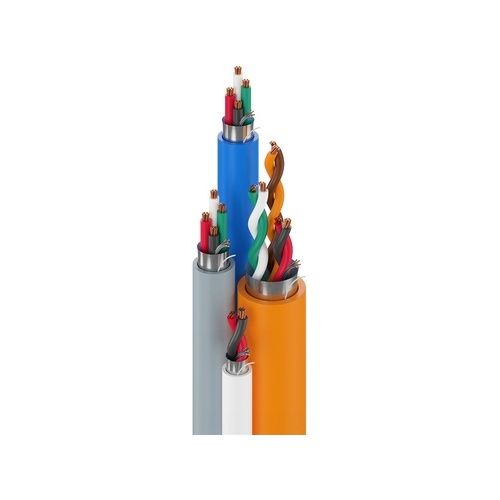

Name: Belden 558AFS 000500 22/3, 18-4, Access Control Cable, Beldfoil Shielded, PVC Jacket, Banana Peel, 152m (500') Reel, Orange, White, Blue, Gray
Brand: Belden
SKU: 558AFS 000500
Price: 950.55 GBP
Availability: InStock

Belden 558AFS 000500 22/3, 18-4, Access Control Cable, Beldfoil Shielded, PVC Jacket, Banana Peel, 152m (500') Reel, Orange, White, Blue, Gray

Roll over image to zoom in Click on image to zoom

Access Control Cable, Riser-CMR, 3-22 AWG pairs, 4-18 AWG conductors, 4-22 AWG conductors, 2-22 AWG conductors, All conductors stranded bare copper with polypropylene insulation, Each component has overall Beldfoil shield and PVC jacket, Banana Peel No overall jacket

Main Features

Unsurpassed quality and reliability
Robust designs that meet or exceed UL standards
Proven performance in installations worldwide
Broad range of AWG sizes, shielding options, conductor and pair counts
Convenient put-up options
Fully compatible with card readers

Specifications

American Wire Gauge	18AWG; 22AWG
Application/Usage	Access Control; Power Limited Controls; Security System
Boot Type	No Boot
Cable Length	152m
Cable Rating	CMR
Conductor Count	16
Conductor Material	Bare Copper
Indoor/Outdoor	Indoor
Insulation Material	PO
Jacket Material	PVC
Jacket Type	ArmorFlex
Limited Warranty	10-Year
Material	PVC
Number of Conductors	16
Number of Pairs	3
Package Type	Reel/Spool
Packaged Quantity	152
Product Series	Access Control
Product Type	Control Cable
Shielding	Yes
Solid or Stranded	Stranded
Colour	Orange
Manufacturer	Belden CDT, Inc
Operating Temperature (T-T)	0-75°C
RoHS Compliant	Compliant
WEEE Compliant	Compliant

Belden 558AFS 000500 22/3, 18-4, Access Control Cable, Beldfoil Shielded, PVC Jacket, Banana Peel, 152m (500') Reel, Orange, White, Blue, Gray
