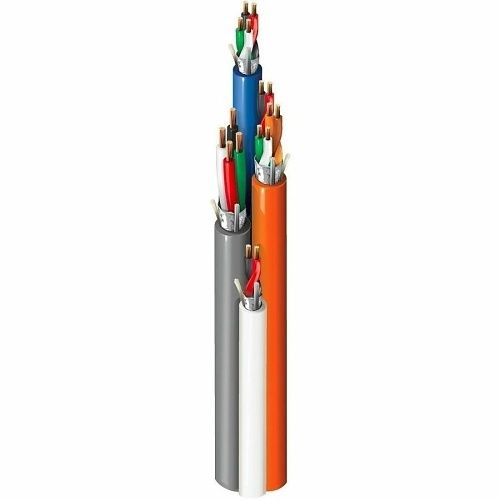

Access Control Cable, Plenum-CMP, 3-22 AWG pairs, 4-18 AWG conductors, 4-22 AWG conductors, 2-22 AWG conductors, All conductors stranded bare copper with Flamarrest insulation, Each cable has overall Beldfoil shield and Flamarrest jacket, Banana Peel No overall jacket
Main Features
Unsurpassed quality and reliability
Robust designs that meet or exceed UL standards
Proven performance in installations worldwide
Broad range of AWG sizes, shielding options, conductor and pair counts
Convenient put-up options
Fully compatible with card readers
Specifications
American Wire Gauge
24AWG
Application/Usage
Access Control; Power Limited Controls; Security System
Boot Type
No Boot
Cable Length
305m
Cable Rating
CMP
Cable Type
Bare Wire
Conductor Count
16
Conductor Material
Bare Copper
Device Supported
Card Reader; Door Contact; Security Access Control System
Environmental Certification
China Environmental United Certification Center (CEC); China RoHS 2; EU WEEE; RoHS 2
