Name: Belden 658HMS 0001000 OSDP Access Control Cable, CMP, 305m
Brand: Belden
SKU: 658HMS 0001000
Price: 2918.95 GBP
Availability: InStock

Belden 658HMS 0001000 OSDP Access Control Cable, CMP, 305m

Roll over image to zoom in Click on image to zoom

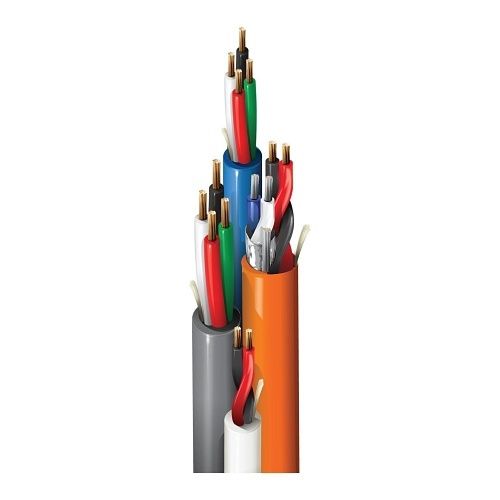

OSDP Access Control Cable, Plenum CMP, 14C (OSDP Reader 1Pr 24+18/2, #18-4, #22-6), Banana Peel No overall jacket.

Main Features

OSDP Access Control Cable for access control systems
Plenum CMP rated for enhanced fire safety
14C configuration including OSDP Reader 1Pr 24+18/2, #18-4, #22-6
Banana Peel design with no overall jacket
305 meters length

Specifications

American Wire Gauge	18AWG; 22AWG; 24AWG
Cable Rating	CMP
Compatibility	Access Control; OSDP Reader; Power Limited Controls; Security System
Environmental Certification	China RoHS II; EU CE Mark; EU Directive 2012/19/EU; RoHS 2
Environmentally Friendly	Yes
Impedance	120Ohm
Jacket Type	Banana Peel
Length	305.0m
Limited Warranty	10-Year
Material	Bare copper conductors; FEP; PVC; Tinned Copper
Number of Conductors	14
Package Type	Reel/Spool
Shielding	Yes
Solid or Stranded	Stranded
Cable Style	Banana Peel
RoHS Compliant	Compliant
WEEE Compliant	Compliant

Downloads

Educational Brochure
Manufacturer Brochure
Product Manual
