Belden 658GMS 0001000 Access Control Cable, 18c (22-6c Foil, 22-4c, 22-4c, 18-4c), CMP, Flamarrest Insulation and Jacket, Banana Peel No Overall Jacket, 305m Reel
SKU: 658GMS 0001000Brand: Belden
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
Belden 658GMS 0001000 Access Control Cable, 18c (22-6c Foil, 22-4c, 22-4c, 18-4c), CMP, Flamarrest Insulation and Jacket, Banana Peel No Overall Jacket, 305m Reel
£2,028.15
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- 18 conductors stranded bare copper with Flamarrest insulation
- 6 conductors 22 AWG with Beldfoil shield
- 4 conductors 22 AWG
- 4 conductors 18 AWG
- Plenum CMP rating
- Flamarrest jacket on each cable
Frequently bought together
Belden
Belden 658HMS 0001000 OSDP Access Control Cable, CMP, 305m
Sale price£2,918.95
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Belden
Belden 658HMS 000500 OSDP Access Control Cable, Plenum CMP, 14C (OSDP Reader 1Pr 24 18/2, 18-4, 22-6), Banana Peel, No Overall Jacket, 152m
Sale price£1,454.70
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Belden
Belden 6640FD 0031000 24/1 Shielded Data OSDP Reader Cable, Stranded TC, CMP, 305m
Sale price£733.65
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Belden
Belden 6T00UP 0091000 10-2 Audio Cable, Plenum-CL2P, BC, Flamarrest Jacket with Ripcord, 305m Reel, White
Sale price£1,424.90
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Belden
Belden 70006E.01305 CAT5e 22/2 DataTuff Solid Cable, BC, SF/UTP, PROFINET Type A, 305m Reel, Green
Sale price£441.10
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Product details

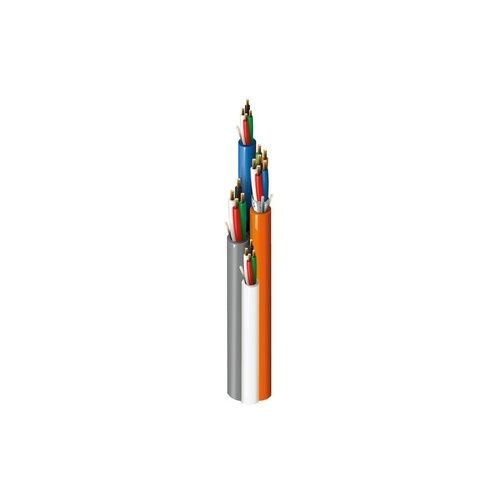

Access Control Cable, Plenum-CMP, 6-22 AWG conductors with Beldfoil shield, 4-22 AWG conductors, 4-22 AWG conductors, 4-18 AWG conductors, All conductors stranded bare copper with Flamarrest insulation, Each cable has Flamarrest jacket, Banana Peel No overall jacket.
Main Features
- 18 conductors stranded bare copper with Flamarrest insulation
- 6 conductors 22 AWG with Beldfoil shield
- 4 conductors 22 AWG
- 4 conductors 18 AWG
- Plenum CMP rating
- Flamarrest jacket on each cable
- Banana Peel no overall jacket
- 305m reel length
Specifications
| American Wire Gauge | 22AWG |
|---|---|
| Application/Usage | Access Control; Power Limited Controls; Security System |
| Boot Type | No Boot |
| Cable Rating | Plenum |
| Conductor Count | 18 |
| Conductor Material | Bare Copper |
| Device Supported | Card Reader; Door Contact; Security Access Control System |
| Environmental Certification | China RoHS 2; EU WEEE; RoHS 2 |
| Environmentally Friendly | Yes |
| Features | Stranded |
| Indoor/Outdoor | Indoor |
| Insulation Material | PVC-LS |
| Jacket Material | PVC |
| Jacket Type | ArmorFlex |
| Limited Warranty | 10-Year |
| Material | Bare Copper; Polypropylene |
| Number of Conductors | 18 |
| Package Type | Reel/Spool |
| Packaged Quantity | 305 |
| Product Line | Banana Peel |
| Product Type | Control Cable |
| Shielding | Yes |
| Solid or Stranded | Stranded |
| Colour | Blue |
| Manufacturer | Belden CDT, Inc |
| Operating Temperature (T-T) | 0-75°C |
| RoHS Compliant | Compliant |
| WEEE Compliant | Compliant |
