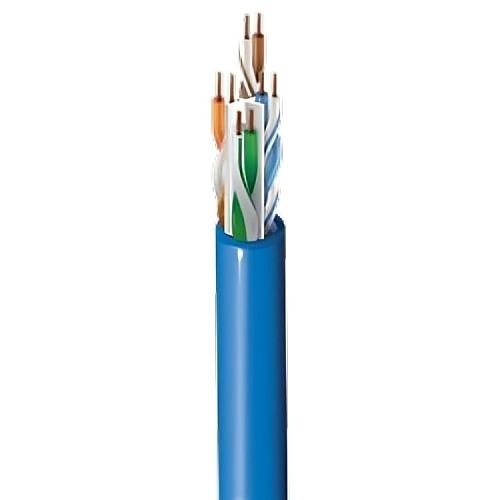

Category 6 Premise Horizontal Cable (250MHz), 4-Pair, 24 AWG solid Bare copper conductors, U/UTP, Polyethylene insulation, LSZH jacket CPR Eca. Suitable Applications, horizontal and building backbone cable; support current and future Category 6 and 5e applications, such as 1000Base-T (Gigabit Ethernet), 100 Base-T, 10 Base-T, FDDI, ATM.
Main Features
305m length for extensive coverage
Category 6 cable supporting up to 250MHz
24 AWG solid bare copper conductors
U/UTP with polyethylene insulation
LSZH jacket for low smoke and zero halogen
Supports Gigabit Ethernet, 100Base-T, 10Base-T, FDDI, and ATM
Ideal for horizontal and building backbone cabling
Specifications
American Wire Gauge
24AWG
Cable Length
305m
Cable Rating
Eca
Cable Type
Category 6
Compatibility
Category 6 and 5e applications; Horizontal and building backbone cable
CPR Euroclass Rating
Eca
Data Transfer Rate
1Gbps
Device Supported
ATM; Network Device
Environmental Certification
REACH; RoHS
Environmentally Friendly
Yes
Features
Attenuation Crosstalk Ratio Far-end (ACR-F); Attenuation to Crosstalk Ratio (ACR); Bendable; Flame retardant; Halogen Free; Minimized Near-End Crosstalk (NEXT); PoE; Power Sum Attenuation to Crosstalk Ratio (PSACR); Power Sum Attenuation to Crosstalk Ratio, Far-End (PSACRF); Power-sum Near End Crosstalk (PSNEXT); Unshielded Twisted Pair (UTP)
