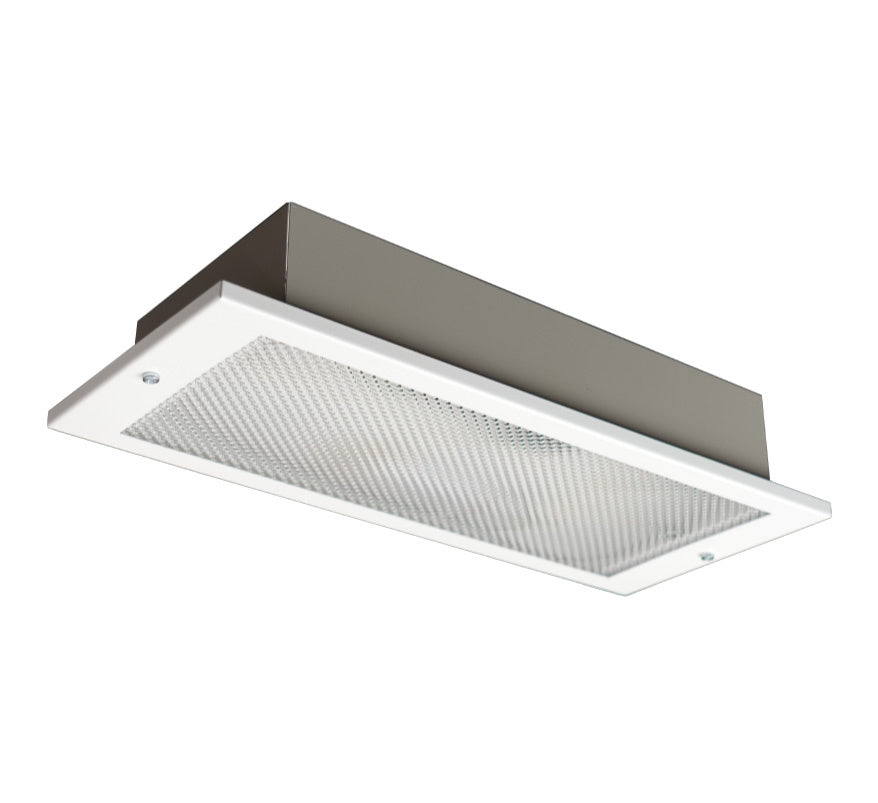

The BLE HOLLINSEND EL-110404-WH is a fully recessed LED emergency bulkhead in white with a prismatic diffuser, mounted in a metal ceiling box. Dual-circuit technology lets it run in maintained or non-maintained mode, and it provides 3 hours of emergency lighting from a 3.2V LiFePO4 battery.
Key features
- Fully recessed design
- Metal ceiling box assembly
- Dual-circuit technology for maintained or non-maintained use
- Green LED healthy charge indicator
- Prismatic diffuser
Technical specifications
- Part number: EL-110404-WH
- Supply: 220-240V AC, 50Hz
- Power: 3W
- Power factor: 0.92
- Electrical class: Class I
- Light source: LED
- Colour temperature: 4000K
- CRI: 80
- Beam angle: 120°
- Mains lumen output: 250lm
- Emergency lumen output: 105lm
- Mode of operation: Maintained / Non-maintained
- Emergency duration: 3 hours
- Testing: Manual
- Battery: LiFePO4 3.2V, 2.0Ah, replaceable
- Recharge time: 24 hours
- IP rating: IP20
- Housing: Metal
- Diffuser: prismatic polycarbonate
- Colour: White
- Mounting: Recessed
- Dimensions: L 380mm, W 158mm, D 68mm
- Weight: 1434g
- Operating temperature: 0 to +40°C
- Lamp life: 30,000 hours
- Product warranty: 10 years
- Battery warranty: 10 years
- Manufactured in accordance with: BS EN 60598-1, BS EN 60598-2-22
- Marking: CE and UKCA
