C-TEC 12V 2A EN54-4 Switch Mode Boxed Power Supply Unit (BF560-12)

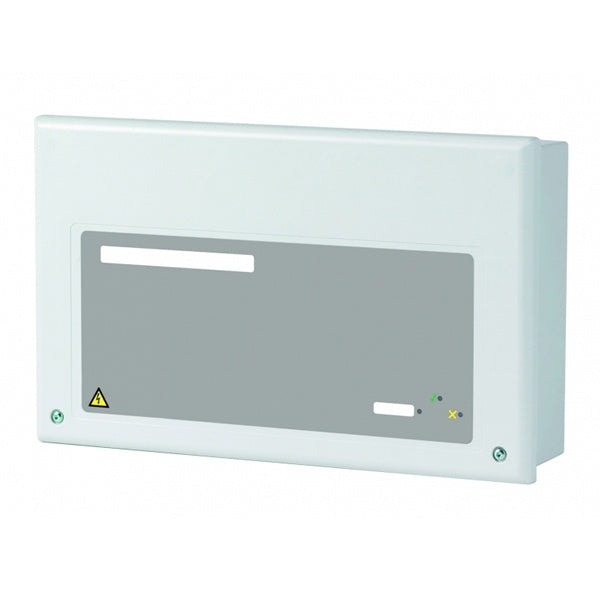

The C-TEC BF560-12 is a 12V 2A switch mode/digital hybrid power supply in a PVC enclosure, certified to EN54-4/A2 by the LPCB and VdS. It is ideal for powering 12V security STUs or autodiallers used to signal fire alarms to a remote monitoring centre, helping such installations comply with BS 5839-1. An optional STU mounting plate (BF360SP) fits inside the enclosure.

Key features

• Certified to EN54-4/A2 by the LPCB and VdS
• Plastic cover on the PSU PCB guards against touching live parts
• Single-pole volt-free changeover relay that switches on any fault condition
• Supply present, general fault, fault type and auxiliary equipment fault indicators
• Two selectable battery charge currents
• Battery resistance monitoring to EN54-4/A2
• Mains fail simulation mode
• On-board temperature sensor, with an optional BF322 remote battery temperature sensor
• Can be customised with a BF423 configurator and PC (changing parameters takes the PSU outside the scope of EN54-4)
• PSU electronics have the functions required by EN50131-6 grades 1-4 (the enclosure is not tamper-alarmed)
• BF560-12/E encased version also available

Technical specifications

• Output: 12V DC, total output current limited to 2A
• I max.a: 1.8A or 1.3A selectable (1.8A not approved to EN54-4/A2); I max.b: 2A (charging turned off)
• Mains supply: 230V 50/60Hz, rated current 300mA r.m.s.
• Battery charge capacity: 2Ah up to 12Ah (charged to 80% in 24 hours)
• Batteries (housed): 1 x 12V 7Ah VRLA, or 1 x 12V 3.2Ah VRLA with the STU plate fitted
• Indicators: 3 external (Supply Present, General Fault, Auxiliary Fault) and 2 internal (Hazardous Voltages Present, PSU Status)
• Dimensions: 380mm (W) x 235mm (H) x 96mm (D)
• Construction: PVC lid and base, RAL7035 textured finish
• IP rating: IP30 (to EN 60529), indoor use only
• Weight: 1.55kg (without batteries)
• Operating temperature: -5°C to +40°C, max. 95% relative humidity
