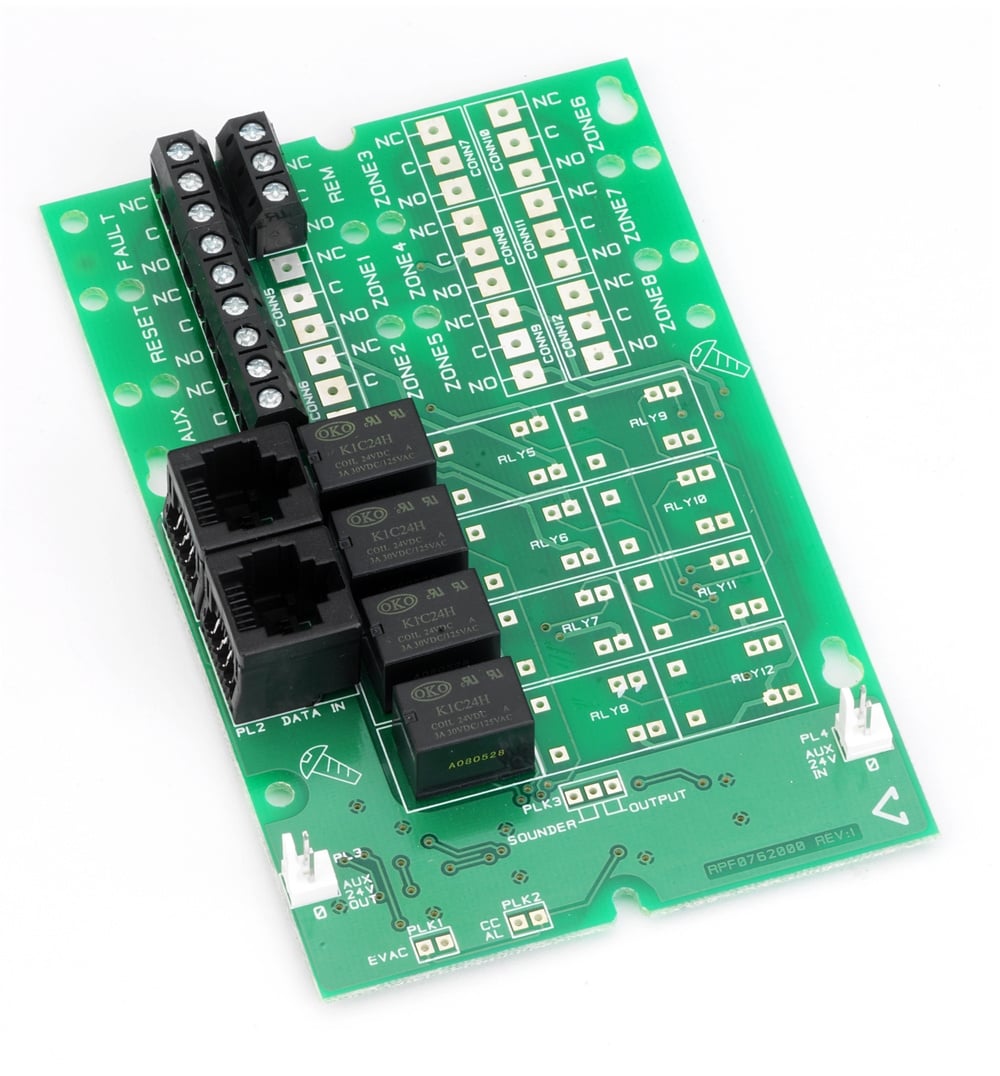

The C-TEC CFP762 is an optional relay output card for C-TEC CFP standard 2-8 zone conventional fire alarm panels and CFP AlarmSense 2-8 zone two-wire panels. It provides four panel-controlled volt-free relay outputs: reset, fault, aux fire and remote. The PCB mounts inside the CFP panel.
Key features
- Four volt-free relay outputs: reset, fault, aux fire and remote
- Reset relay: active during the panel's reset cycle
- Fault relay: failsafe and normally energised, so it changes over to signal a fault if power is removed from the panel
- Aux fire relay: active in an alarm condition once all relevant delays have expired
- Remote relay: active during any alarm condition once all relevant delays have expired
- For CFP standard and CFP AlarmSense 2-8 zone panels
Technical specifications
- Relays: 4 (reset, fault, aux fire, remote)
- Contacts: single pole changeover, rated 1A at 50V
- Isolation: 50V between relays, contacts and the CFP panel
- Active relay coil current: 27mA at 27.6V supply
- Outputs are not designed to switch mains voltages
- Dimensions: 82 x 125 x 23mm (W x H x D)
- Weight: 64g
