C-TEC Compact Wall VAD c/w 91dB Sounder - Red (XP95/Discovery Compatible) (BF451A/CX/SR)
SKU: BF451A/CX/SRBrand: C-TEC
| Out of stock | Qty | Delivery |
|---|---|---|
| All locations | 0 | Lead time 2 to 6 weeks, estimate only |
Need help choosing?
Our UK team can check compatibility, stock and project pricing for you.
0113 518 0540info@jemsystems.co.uk
C-TEC Compact Wall VAD c/w 91dB Sounder - Red (XP95/Discovery Compatible) (BF451A/CX/SR)
£45.75
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- W-3-3.1 (30m³ cuboid coverage) when wall mounted
- C-3-8 (151m³ cylindrical coverage) when ceiling mounted
- White flash at 0.5Hz
- 91dB(A) sound output at 1m
- 7 selectable volume levels and up to 15 selectable tone pairs
- Onboard short circuit loop isolator
Frequently bought together
C-TEC
C-TEC Conduit Adaptor Box (for use with ceiling mounted ActiV & CAST devices) (NCP-27)
Sale price£2.85
In stock
C-TEC
C-TEC Conventional Button Reset Point, Stainless Steel (NC809DB/SS)
Sale price£48.25
Out of stock. Lead time 2 to 6 weeks, estimate only
C-TEC
C-TEC Conventional Single Zone Call Controller c/w 12V PSU, Stainless Steel (NC941/SS)
Sale price£133.90
Out of stock. Lead time 2 to 6 weeks, estimate onlyProduct details

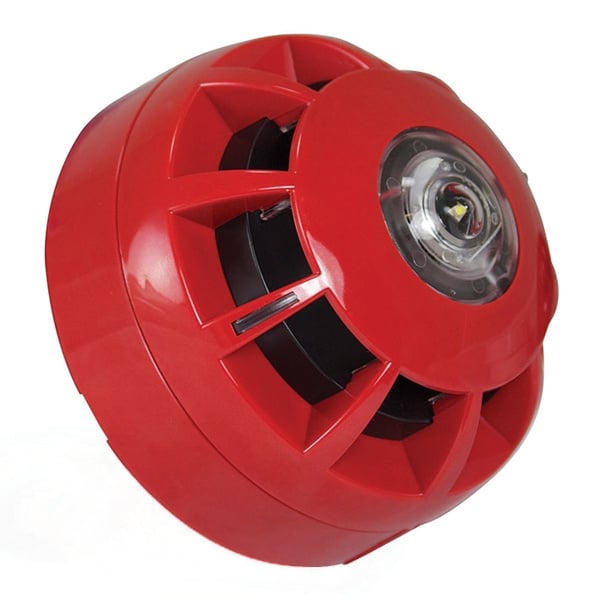

The C-TEC BF451A/CX/SR is a red compact addressable VAD (visual alarm device) with a 91dB(A) sounder. It gives W-3-3.1-rated light coverage when wall mounted and can also be ceiling mounted for C-3-8 coverage. It is designed for C-TEC's XFP and ZFP addressable fire panels running the Apollo XP95/Discovery protocol. It is certified to EN54-3, EN54-23 and EN54-17 by Intertek.
Key features
- W-3-3.1 (30m³ cuboid coverage) when wall mounted
- C-3-8 (151m³ cylindrical coverage) when ceiling mounted
- White flash at 0.5Hz
- 91dB(A) sound output at 1m
- 7 selectable volume levels and up to 15 selectable tone pairs
- Onboard short circuit loop isolator
- Group addressing lets multiple devices operate together
- Low 550µA quiescent current
Technical specifications
- Approvals: certified to EN54-3, EN54-23 and EN54-17 by Intertek
- VAD category: W-3-3.1 (wall) or C-3-8 (ceiling)
- Flash rate and colour: 0.5Hz; white
- Protocol: Apollo XP95/Discovery (C-TEC XFP/ZFP panels)
- Quiescent current: 550µA at 24V DC
- Indicators: polling (green LED) and short circuit isolator active (amber LED)
- Supply voltage: 17 to 28V DC (sounder); 21 to 28V DC (sounder/VAD)
- Nominal sound output: 91dB(A) (tone 1)
- Alarm current: 14mA at 24V DC (VAD lit, sounder on max)
- Dimensions: 102mm diameter x 63mm deep
- Colour: Red
- IP rating: IP21C
- Weight: 175g
- Operating temperature: -10°C to +55°C, max 95% RH (non-condensing)
