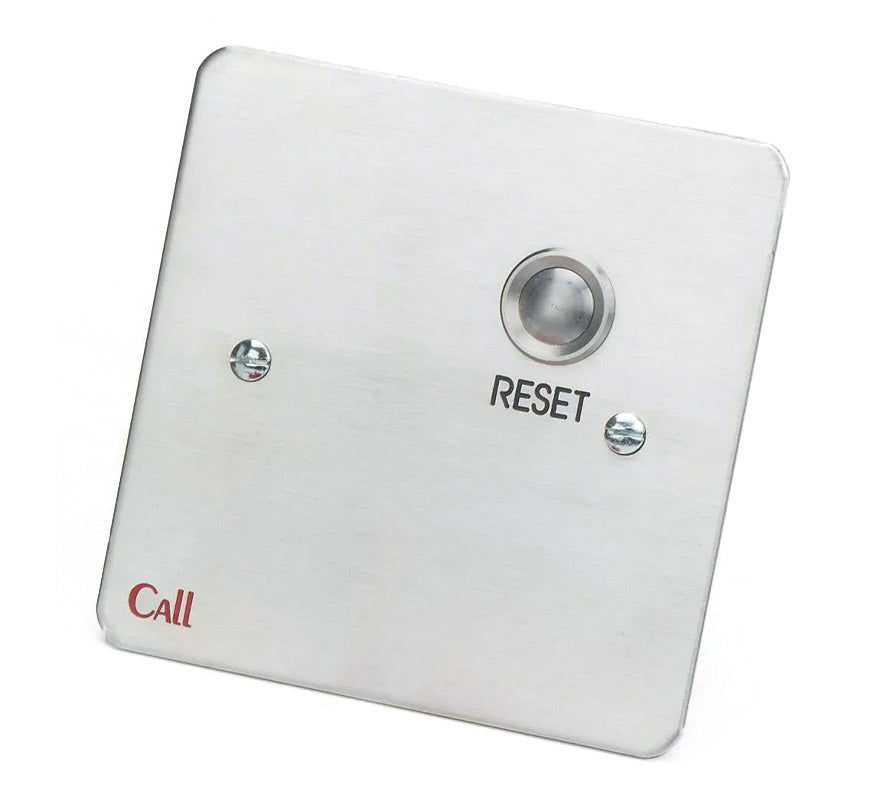

The C-TEC NC809DB/SS is a brushed stainless steel, button-operated reset point for C-TEC's 800 Series conventional call system. It remotely cancels standard calls generated by ceiling pulls and/or wall call points wired on the same zone.
Key features
- Brushed stainless steel finish
- Reset button cancels standard calls from any device wired on the same zone
- Mounts on a 30mm UK single gang back box
Technical specifications
- System: C-TEC 800 Series call system
- Quiescent current: 0mA
- Connections: SIG (signal), -Ve (negative)
- Dimensions: 87mm (W) x 87mm (H) x 24mm (D)
- Construction: brushed stainless steel
- Operating temperature: -5°C to +40°C, max. 95% relative humidity (non-condensing)
