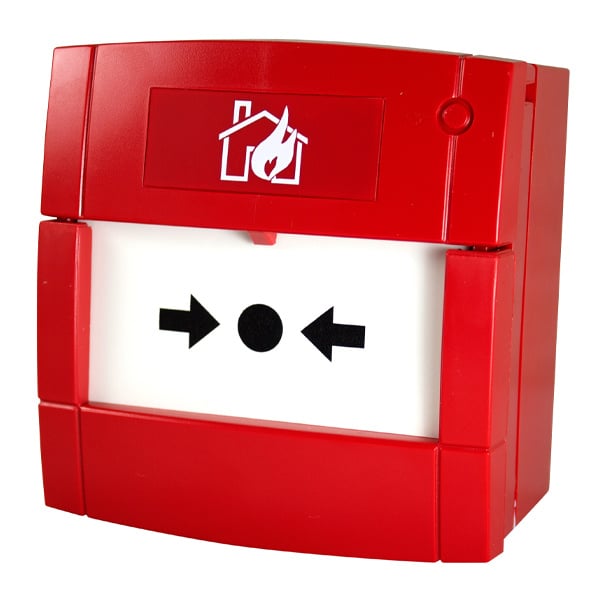

The C-TEC BF370R is a red 'KAC' surface-mounting manual 'crack glass' fire alarm call point for conventional fire alarm systems. It is certified to EN54-11 by the LPCB and VdS and uses a 'plug and play' installation concept. It is supplied with a glass element, 470Ω resistor, test key and red back box. A flush version without a back box (BF370RF) is also available.
Key features
- Certified to EN54-11 by the LPCB and VdS
- 'Plug and play' installation concept
- Glass element supplied
- Anti-tamper facility
- Spares and accessories: BF371 spare glass, BF370MC protective cover, BF370KRK test key
Technical specifications
- Supply voltage: 30V DC max.
- Resistor: 470Ω (supplied)
- Dimensions: 93mm (W) x 89mm (H) x 60mm (D) including back box; 28mm deep without back box
- Construction: red ABS, glass element
- IP rating: IP24D
- Weight: 180g (130g without back box)
- Operating temperature: -10°C to +55°C
What's in the box
- BF370R call point with glass element
- Red surface back box
- 470Ω resistor
- Test key
