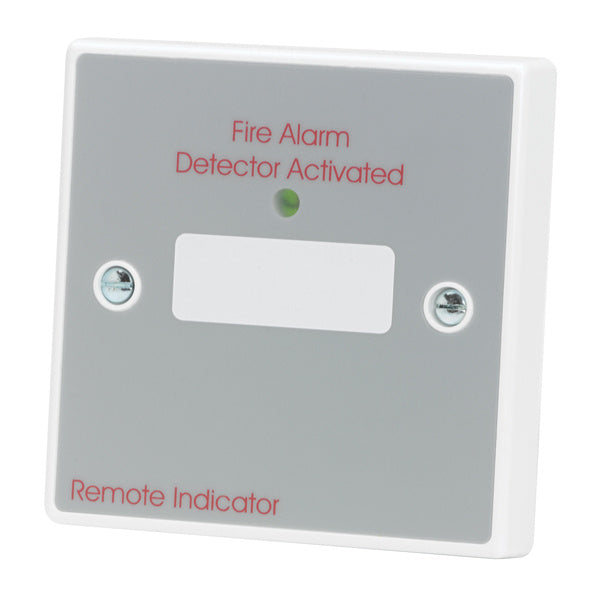

The C-TEC BF318 is a single gang remote LED indicator designed for fire alarm systems. Its high intensity, wide-angle red LED is clearly visible from the front of the plate when active, making it ideal for showing the activation of hidden or out-of-sight fire detectors. It has separate '+30V' and 'LED only' input connections.
Key features
- High intensity, wide-angle red LED
- Ideal for indicating the activation of hidden or out-of-sight fire detectors
- White 'write on' label area for recording the equipment location
- Fits standard UK 16mm flush or surface mount single gang back boxes
Technical specifications
- Connections: +30V max, LED only, 0V
- Activation current (0V and +30V connections): 1.3mA at 6V DC (min) to 10mA at 30V DC (max)
- Activation current (0V and LED only connections): 25mA max
- Plate size: 85 x 85mm (W x H)
- Construction: white PVC plate, light grey label
- IP rating: IP40
- Weight: 48g
- Operating temperature: -10°C to +60°C
