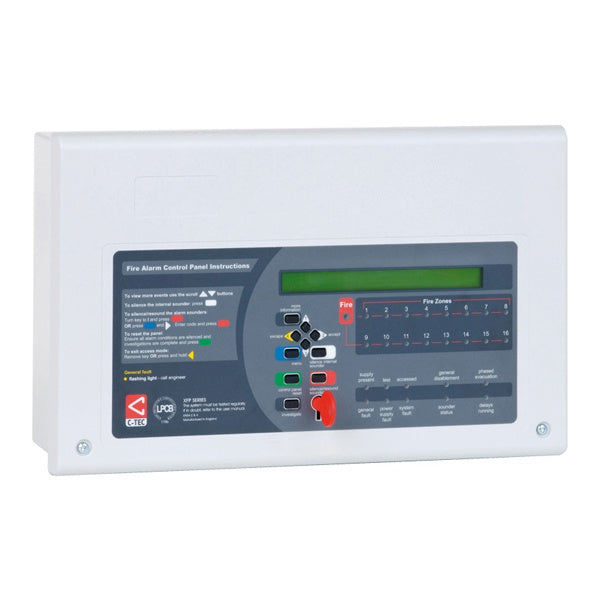

C-TEC XFP 1 Loop 16 Zone Addressable Fire Panel (Hochiki ESP Protocol) (XFP501E/H)

The C-TEC XFP501E/H is a single-loop, 16 zone addressable fire alarm panel for Hochiki ESP protocol devices. LPCB certified to EN 54-2 and 4, it is one of Europe's best-selling entry-level addressable panels, suitable for small stand-alone sites or larger applications thanks to its ability to network with up to 8 XFP main panels. It is also fully compatible with C-TEC's Hush Button fire alarm solution.

Key features

• Hochiki ESP protocol, up to 126 addressable devices on the loop
• Two independently programmable conventional sounder circuits and two programmable inputs
• Fault relay plus three programmable volt-free changeover relays
• Zone dependency/coincidence, day/night, investigation delay and phased evacuation functions
• Short-circuit protected loop driver supporting up to 40 loop-powered 10mA sounders
• Integral EN 54-4/A2 switch mode power supply
• Adjustable contamination levels, earth fault monitoring and an alarm counter
• Combined keypad/keyswitch entry to access levels 2 and 3
• 999 event log
• Windows upload/download PC software (XFP507, sold separately)
• Networks up to 8 XFP main panels, or up to 8 XFP repeaters on a non-networked main panel (optional network card)

Technical specifications

• Part number: XFP501E/H
• Protocol: Hochiki ESP
• Loops: 1
• Zones: 16
• Loop output current: 500mA max
• Max. loop length: 1km
• Devices per loop: 126
• Sounder circuits: 2 (max. 400mA)
• Relays: 3 programmable + 1 fault, 1A 30V DC
• Mains supply: 230V 50/60Hz, 350mA max
• Total output current: 1.4A at 230V AC
• Batteries: 2 x 12V 3.2Ah VRLA (in series)
• Display: 2 line x 40 character backlit LCD, 16 zonal LEDs
• Dimensions: 380 x 235 x 96mm (W x H x D)
• Construction: Plastic lid and base, RAL 7035 textured, IP30
• Weight: 1.8kg without batteries
• Operating conditions: -5°C to +40°C, max. 95% RH
