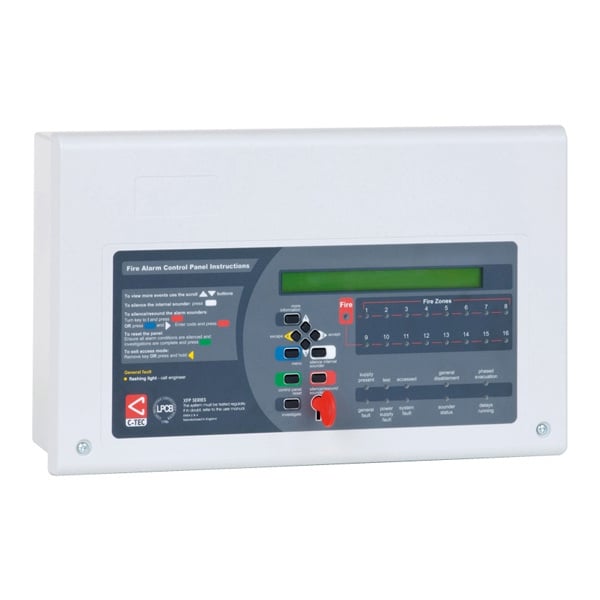

C-TEC XFP 16 Zone Addressable Repeater Panel (All Protocols) (XFP510-16)

The C-TEC XFP 16 Zone Repeater Panel (XFP510-16) repeats the functions of an XFP main panel at remote parts of a site, such as all potential fire service entrances. It offers all of the functions and controls of an XFP main panel (access levels 1, 2 and 3) and works with C-TEC XFP CAST, Apollo XP95/Discovery and Hochiki ESP main panels.

Key features

• Full XFP main panel functions and controls at the remote location
• 2 line x 40 character backlit display and 16 zonal LEDs
• On-board failsafe fault relay (1A at 30V DC)
• CFP761 network driver card fitted as standard
• Up to 8 XFP repeaters per non-networked XFP main panel
• Requires its own mains supply and battery back-up

Technical specifications

• Part number: XFP510-16
• Compatible main panels: XFP CAST, Apollo XP95/Discovery and Hochiki ESP
• Mains supply: 230V 50/60Hz, 350mA max
• Internal power supply: 27V DC nominal
• Total output current: 1.4A at 230V AC
• Batteries: 2 x 12V 3.2Ah VRLA (in series)
• Network: 1.5mm² two-core screened fire-resistant cable, max. 500m total
• Dimensions: 380 x 235 x 96mm (W x H x D)
• Construction: Plastic lid and base, RAL 7035 textured, IP30
• Weight: 1.8kg without batteries
• Operating conditions: -5°C to +40°C, max. 95% RH
