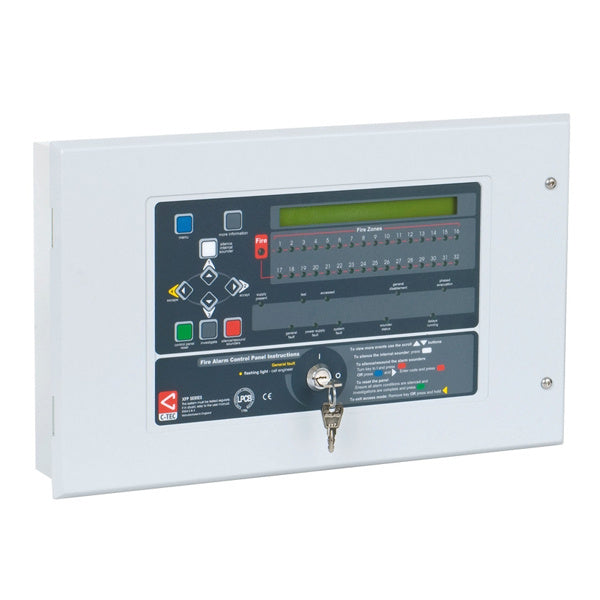

C-TEC XFP 1 Loop 32 Zone Addressable Fire Panel (XP95/Discovery Protocol) (XFP501/X)

The C-TEC XFP501/X is a single loop, 32 zone analogue addressable fire alarm panel for Apollo XP95 and Discovery protocol devices. It is LPCB certified to EN54-2 and EN54-4, comes in a durable metal enclosure and suits small stand-alone sites as well as larger buildings, as up to eight XFP master panels can be networked. It is also compatible with C-TEC's Hush Button solution and its EN54 certified addressable sounders and VADs.

Key features

• Third-party certified to EN54-2/4 by the LPCB
• Compatible with Apollo XP95/Discovery protocol
• Combined keypad/keyswitch entry to Access Levels 2 and 3
• Two independently programmable conventional sounder circuits
• Two programmable inputs
• Fault output relay plus three programmable volt-free changeover relays
• Zone dependency/coincidence functions, day/night mode and investigation delay
• Phased evacuation facility and alarm counter
• Short circuit protected loop driver supporting up to 40 loop-powered 10mA sounders per loop
• Integral EN54-4/A2 switch mode power supply
• Adjustable contamination levels and earth fault monitoring
• 999 event log
• Windows-based upload/download PC program
• Up to 8 XFP main panels on a two-wire RS485 network, or up to 8 XFP repeaters on a non-networked main panel
• Optional flush-mounting bezel and glazed stainless steel enclosure available

Technical specifications

• Approvals: EN54-2 & EN54-4 (LPCB)
• Protocol: Apollo XP95/Discovery
• Loops: 1; max. 126 addressable devices per loop
• Zones: 32 (zonal LEDs)
• Max. loop output current: 500mA (25V min., 34V max.)
• Max. loop length: 1km
• Mains supply: 230V 50/60Hz, 680mA max.
• Internal power supply: 27V DC nominal; total output current limited to 3A
• Quiescent current: 80mA (loop unloaded)
• Batteries: 2 x 12V 7Ah VRLA in series
• Conventional sounder circuits: 2 (max. 500m each), max. 400mA sounder output current
• End-of-line resistor: 6k8Ω
• Relays: 3 programmable plus 1 fault relay, volt-free single pole changeover, max. 1A at 30V DC
• Auxiliary 24V output: max. 100mA, resettable fuse
• Inputs: 2 programmable (connect to 0V to trigger)
• Display: 2 line x 40 character backlit LCD
• PC connection: RS232 (upload/download software kit XFP507)
• Network/repeater connection: via optional AFP711 network card
• Dimensions: base 410mm (W) x 250mm (H) x 80mm (D); lid 439mm (W) x 274mm (H) x 7mm (D)
• Construction: metal, IP30
• Weight: 4.5kg (without batteries)
• Operating temperature: -5°C to +40°C, max. 95% relative humidity
