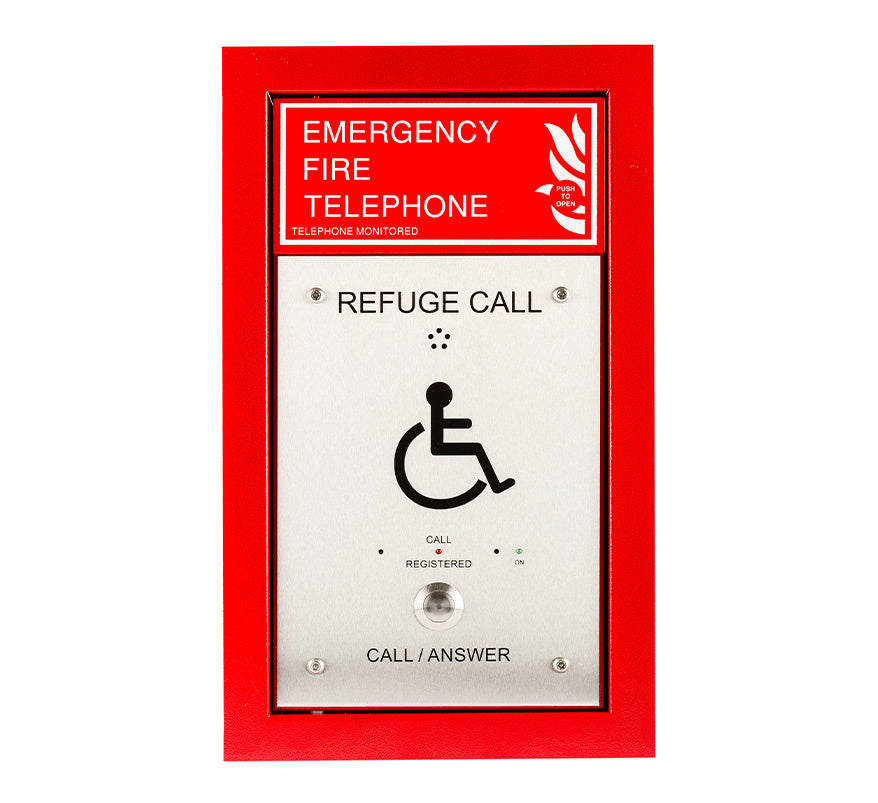

The Cameo CRT/SRF/L is a combined disabled refuge and fire telephone outstation (Type A and B) for loop-wired Cameo disabled refuge and fire telephone systems. The flush-mounted enclosure is finished in red leatherette paint with a polycarbonate front label, with a stainless steel disabled refuge outstation built into the door and a red fire telephone handset inside. It gives firefighters and refuge users a direct, full-duplex voice link to the central control panel from a single location.
Key features
- Combined Type A fire telephone and Type B disabled refuge outstation in one enclosure
- Red handset with hearing aid T-coil output
- Integral audio frequency induction loop (AFILS) on the disabled refuge unit
- Lifting the handset or pressing the refuge call button calls the central control panel automatically
- Clear, full-duplex audio conversation
- Flush-mounted enclosure finished in red leatherette paint with a polycarbonate front label
- Stainless steel disabled refuge outstation combined into the door
Technical specifications
- Manufacturer code: CRT-SRF-L
- Type: fire telephone Type A and disabled refuge Type B
- Wiring: loop-wired
- Mounting: flush
- Flange: 410mm (H) x 246mm (W) x 1.5mm (D)
- Back box: 360mm (H) x 196mm (W) x 106mm (D)
