Cameo Orbital RS32 32-Line Disabled Refuge/Toilet Alarm System c/w Batteries, Surface Mount - Loop Wired (ORB/L/RS32/OLED/S)

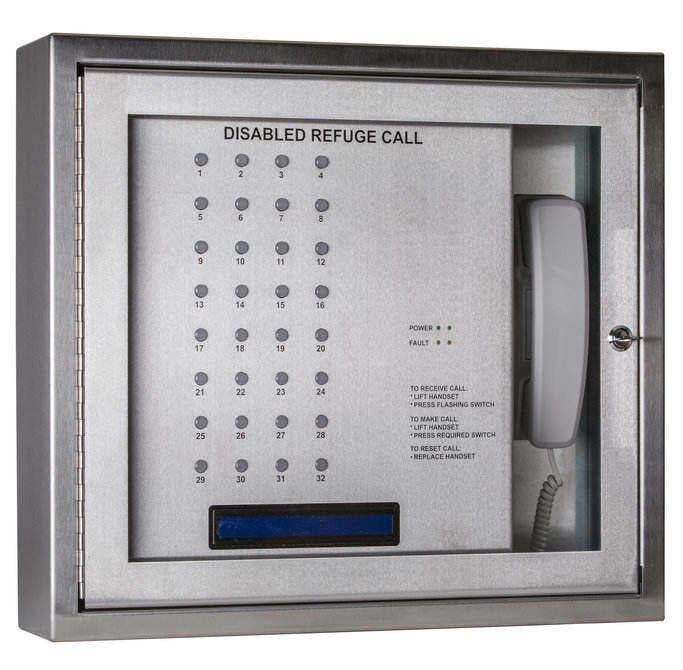

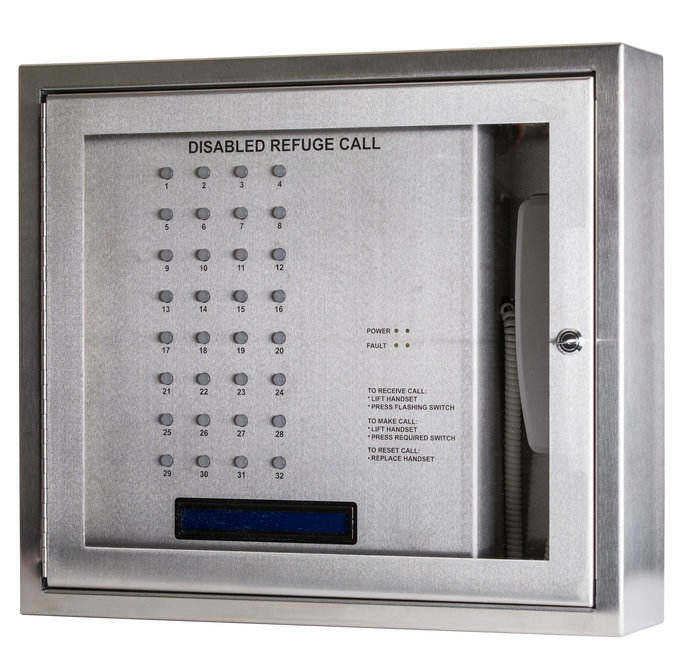

The Cameo Orbital RS32 (ORB/L/RS32/OLED/S) is a 32-way combined disabled refuge and disabled toilet alarm system (emergency voice communication system) in a stainless steel surface enclosure with black screen print and a glazed, lockable door. The master panel can answer or call out to each refuge location, and once connected a clear full duplex audio conversation takes place; the call is ended by replacing the master handset.

A built-in alphanumeric blue OLED screen shows the disabled refuge zone description and indicates up to 32 disabled toilet alarm zones. Outstations are loop wired using 4-core 1.5mm enhanced fire-rated cable. It is fully compliant with BS 5839-9 and is supplied with batteries.

Key features

• 32 disabled refuge lines with separate call switches and indications for each location
• Combined disabled refuge and disabled toilet alarm system
• Blue alphanumeric OLED display for refuge zone descriptions and 32 disabled toilet alarm zone indications
• Group call or all call
• Full duplex audio conversation via the master handset
• Volt-free changeover contact for remote call-in and fault reporting
• Fire panel inhibit input fitted as standard
• Toilet alarm PSU/sounder units connect with a simple 2-core cable to a nearby refuge outstation, whose back box has terminals for the connection
• Stainless steel surface enclosure with black screen print and glazed lockable door

Technical specifications

• Lines: 32
• Wiring: loop wired, 4-core 1.5mm enhanced fire-rated cable
• Battery standby: 24 + 3 hours (batteries included)
• Outputs: volt-free changeover contact for remote call-in and fault reporting
• Inputs: fire panel inhibit
• Standards: BS 5839-9 compliant; CE 2019 certified
• Surface back box: 528mm (H) x 545mm (W) x 125mm (D)
