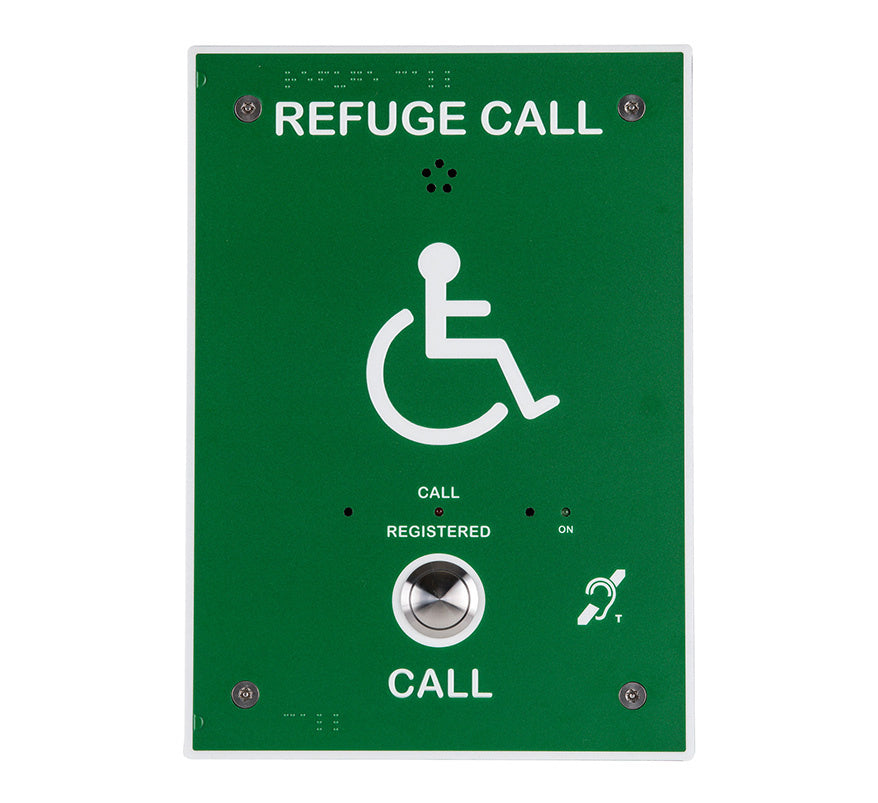

Cameo Type B Disabled Refuge Outstation, Green Hands Free Unit (RCO/GB)

The Cameo RCO/GB is a green, hands-free Type B disabled refuge outstation for Cameo Orbital disabled refuge (emergency voice communication) systems. It lets a person waiting in a refuge area call the master control panel at the press of a button. The outstation is a front panel only: fit it to a Cameo back box to suit the installation, either FR/BB (flush, radial wired), FL/BB (flush, loop wired), SR/BB (surface, radial wired) or SL/BB (surface, loop wired).

Key features

• Type B disabled refuge outstation with hands-free operation
• Photoluminescent green front panel
• Braille identification and tactile text
• Vandal-resistant construction
• Integral audio frequency induction loop (AFILS) for hearing aid users
• A call is made by pressing the large momentary push button, which lights the red 'call registered' LED and plays a conventional telephone call tone from the panel loudspeaker

Technical specifications

• Type: Type B disabled refuge outstation, hands-free
• Green front panel dimensions: 260mm (H) x 185mm (W) x 2.0mm (D)
• Flush back box (FR/BB or FL/BB): 225mm (H) x 154mm (W) x 50mm (D), galvanised steel
• Surface back box (SR/BB or SL/BB): 264mm (H) x 189mm (W) x 50mm (D), black leatherette (RAL9005) mild steel
• Back box: supplied separately
