Cameo Orbital RS2 2-Line Disabled Refuge Control Panel c/w Batteries, Surface Mount - Radial Wired (ORB/R/RS2S)
SKU: ORB/R/RS2SBrand: Cameo Systems
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 1 | Same day dispatch |
| UK Hub | 0 | None at UK Hub |
Need help choosing?
Our UK team can check compatibility, stock and project pricing for you.
0113 518 0540info@jemsystems.co.uk
Cameo Orbital RS2 2-Line Disabled Refuge Control Panel c/w Batteries, Surface Mount - Radial Wired (ORB/R/RS2S)
£634.30
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Two-way disabled refuge system with a separate blue call indicator for each of the two refuge locations
- The master panel answers or calls out when the master handset is lifted; the call ends when the handset is replaced
- Clear, full duplex audio conversation
- Outstations are radially wired in 2-core 1.5mm enhanced fire-rated cable
- Remote outstation cabling is monitored for open and short circuit faults
- Volt-free changeover contact for remote call-in and fault reporting
Frequently bought together
Cameo Systems
Cameo Orbital RS2-TA 2-Line Disabled Refuge & Toilet Alarm Control Panel c/w Batteries, Flush Mount - Radial Wired (ORB/R/RS2F/TA)
Sale price£734.40
Out of stock. Lead time 2 to 6 weeks, estimate only
Cameo Systems
Cameo Orbital RS2-TA 2-Line Disabled Refuge & Toilet Alarm Control Panel c/w Batteries, Surface Mount, Radial Wired (ORB/R/RS2S/TA)
Sale price£734.40
Out of stock. Lead time 2 to 6 weeks, estimate only
Cameo Systems
Cameo Orbital RS32 32-Line Disabled Refuge/Toilet Alarm System c/w Batteries, Surface Mount - Loop Wired (ORB/L/RS32/OLED/S)
Sale price£2,830.35
Out of stock. Lead time 2 to 6 weeks, estimate only
Cameo Systems
Cameo Orbital RS4 4-Line Disabled Refuge/Toilet Alarm System c/w Batteries, Flush Mount - Loop Wired (ORB/L/RS4/OLED/F)
Sale price£1,254.55
Out of stock. Lead time 2 to 6 weeks, estimate only
Cameo Systems
Cameo Orbital RS4 4-Line Disabled Refuge/Toilet Alarm System c/w Batteries, Flush Mount - Radial Wired (ORB/R/RS4/OLED/F)
Sale price£1,254.55
Out of stock. Lead time 2 to 6 weeks, estimate onlyProduct details

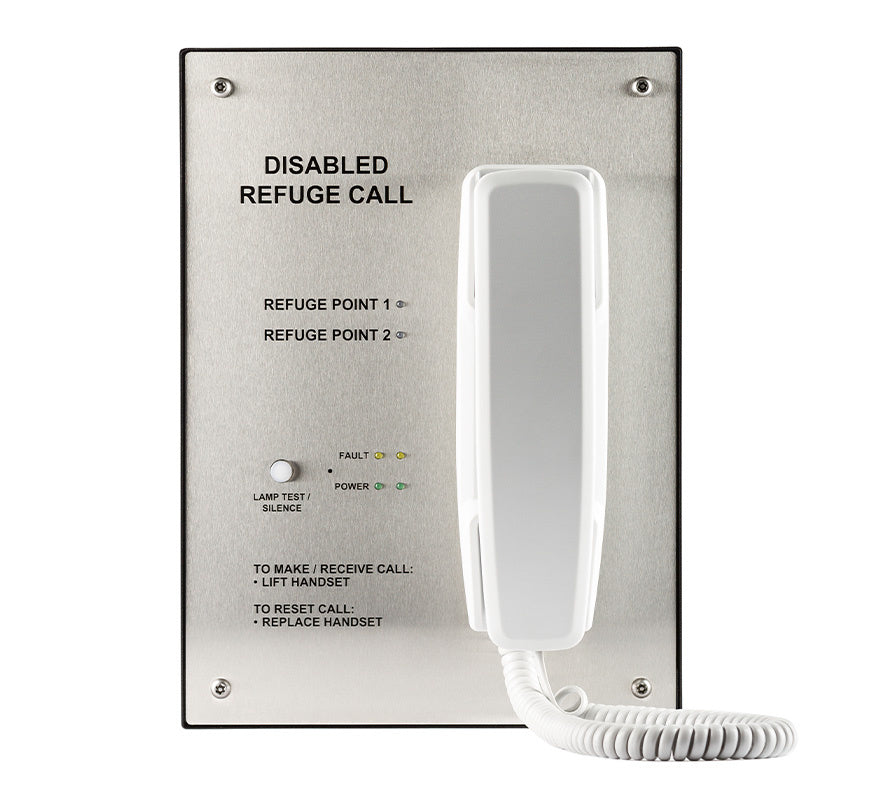

The Cameo Orbital RS2 (ORB/R/RS2S) is a simple two-line disabled refuge control panel for surface mounting. It gives two-way speech between the master handset and up to two Type B refuge outstations, such as Cameo's RCO/GB or RCO/SS, wired radially. The panel is supplied with its standby batteries.
Key features
- Two-way disabled refuge system with a separate blue call indicator for each of the two refuge locations
- The master panel answers or calls out when the master handset is lifted; the call ends when the handset is replaced
- Clear, full duplex audio conversation
- Outstations are radially wired in 2-core 1.5mm enhanced fire-rated cable
- Remote outstation cabling is monitored for open and short circuit faults
- Volt-free changeover contact for remote call-in and fault reporting
- Fire panel inhibit input fitted as standard
- Battery support of 24 + 3 hours
- Compliant with BS 5839-9
- Surface-mounting mild steel enclosure in black leatherette (RAL9005) with a stainless steel front panel and black screen print
Technical specifications
- Refuge locations: 2 (radial wired)
- Outstation cabling: 2-core 1.5mm enhanced fire-rated cable
- Mains supply: 220-240V AC (5A lighting-rated supply)
- Maximum system load: 30W
- Standby batteries: 2 x 12V 2.1Ah
- Battery standby: 24 + 3 hours
- Outputs: volt-free changeover contacts for fault and call
- Inputs: fire panel inhibit
- Standard: BS 5839-9
- Dimensions: 312mm (H) x 229mm (W) x 90mm (D)
- Construction: mild steel enclosure (black leatherette, RAL9005), stainless steel front panel
