| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 10 | 2 to 3 working days |
CDVI S180 Magnet Std Mnt Micro 180kg 12/24vdc
£60.15
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Surface mount electro-magnetic lock
- Up to 180kg holding force for robust security
- 12 or 24V DC operation
- Live status monitoring
- Patented locking technology
- Visual LED indication
Frequently bought together
CDVI
CDVI Self-Contained Long Range Reader
Sale price£109.45
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Product details

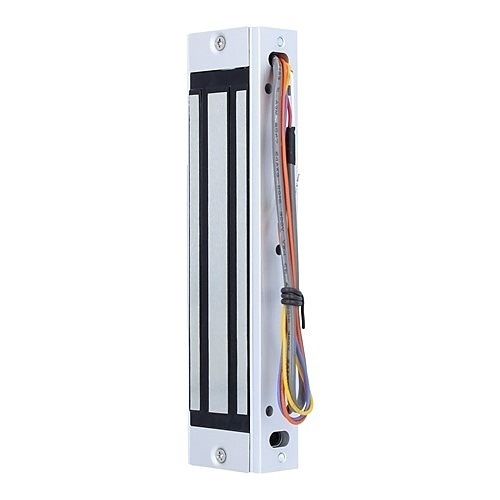

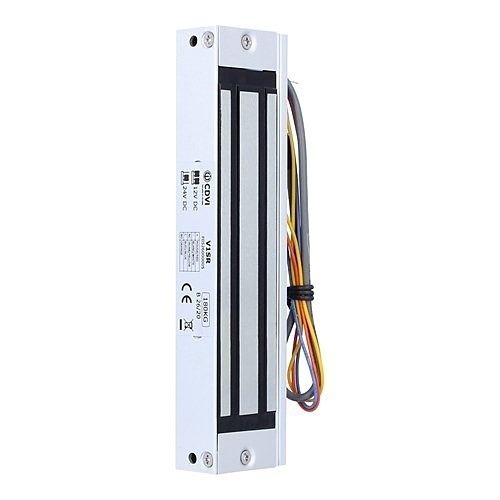

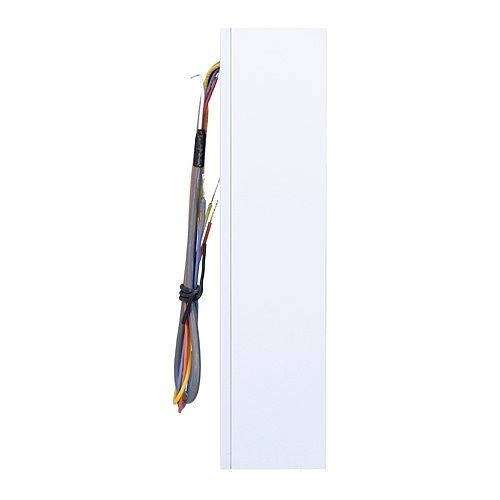

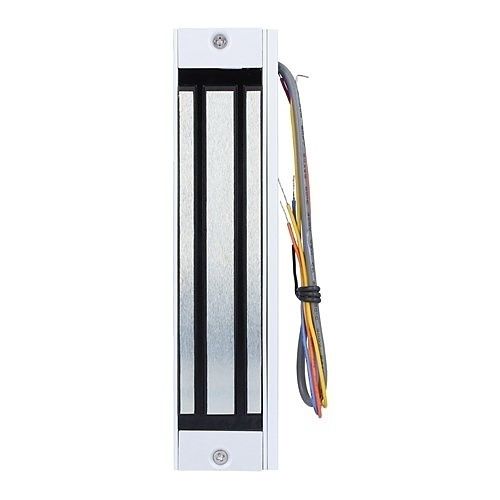

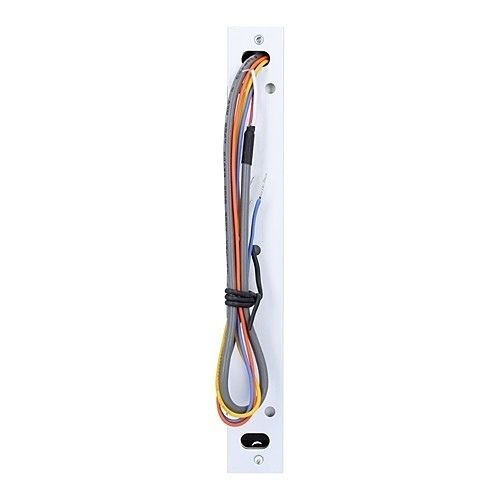

The V1SR is a surface-mounted suction cup with a 180 kg holding force and position contact. It is part of a wide range of electromagnetic locking solutions from CDVI. Thanks to its exceptional properties, quality and performance, this product is guaranteed to improve your installation. Each suction cup is professionally packaged for easy identification. Each package includes safety cables to ensure that the magnet cannot fall out, ensuring safe installation without risk of injury.
Main Features
- Surface mount electro-magnetic lock
- Up to 180kg holding force for robust security
- 12 or 24V DC operation
- Live status monitoring
- Patented locking technology
- Visual LED indication
- Z&L bracket available - see 180-ZL
Specifications
| Application/Usage | Access Control System; College; Commercial; Door; Industrial; Public Building; School; Wooden Door |
|---|---|
| Depth | 21.0mm |
| Door Supported | Single Door |
| Features | Live Status Monitoring; Patented Locking Technology |
| Finishing | Satin Anodized Aluminium |
| Form Factor | Surface Mount |
| Height | 166.0mm |
| Holding Force | 180kg |
| Limited Warranty | 10-Year |
| Material | Aluminium; Steel |
| Package Contents |
|
| Packaged Quantity | 1 |
| Product Series | V SERIES |
| Product Type | Magnetic Lock |
| Width | 35.0mm |
| CE Marking | Yes |
| Input Current | 225mA |
| Manufacturer | CDVI Group |
| RoHS Compliant | Compliant |
| WEEE Compliant | Compliant |
Downloads
Datasheet
CDVI S180 Magnet Std Mnt Micro 180kg 12/24vdc Need the datasheet? Our team will email it to you. Request datasheet
CDVI S180 Magnet Std Mnt Micro 180kg 12/24vdc
£60.15
