| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 24 | 2 to 3 working days |

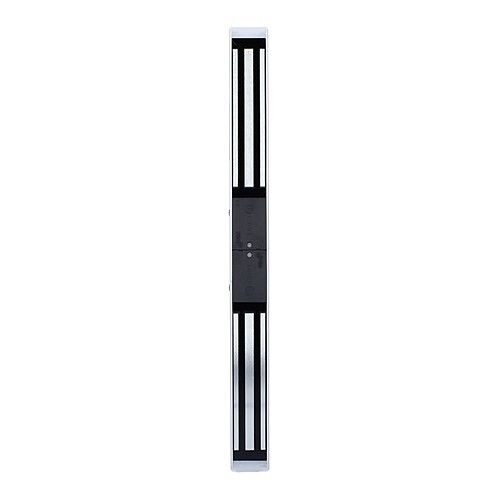

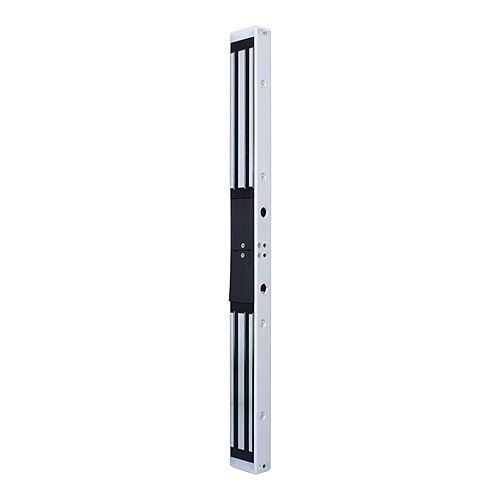

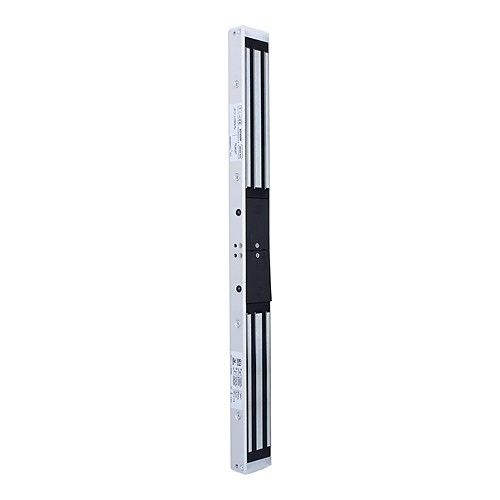

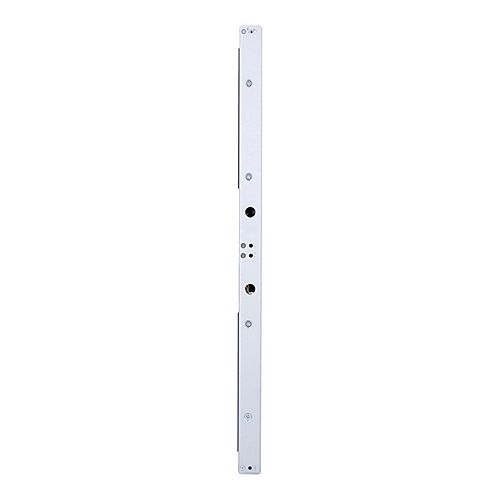

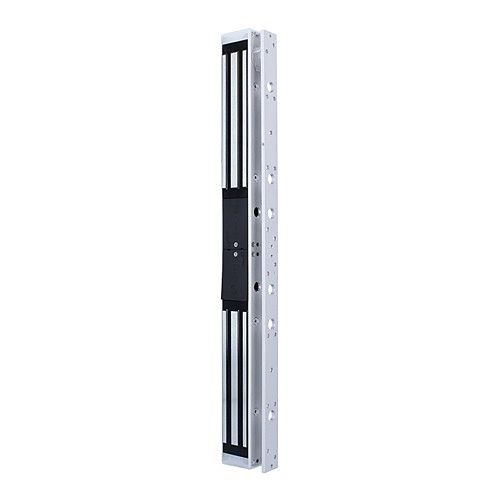

CDVI SD300M Double 300kg Magnetic Lock, Monitored
£160.35
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Double electro-magnetic lock
- 300kg per Side for a total 600kg of holding force
- Monitored with LED indication
- Rounded edges and safety ropes to ensure safer installation
- Premium quality magnetic locks, robust security for your projects
Frequently bought together
CDVI
CDVI Self-Contained Long Range Reader
Sale price£109.45
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
CDVI
CDVI DGA Self-Contained Rugged Keypad Surface Mount
Sale price£139.95
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
CDVI
CDVI Shadow Card for STAR1M Standalone Reader (Each)
Sale price£2.50
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Product details
The SD300M is a monitored surface double maglock with a holding force of up to 300kg on each side. By including two magnets, not only is the holding force doubled for a high-security solution, but the risk of door flexing is also significantly reduced, as the holding force is spread over a greater area. The SD300M is supplied with security catch ropes, which prevent the magnets from falling and ensure they can be mounted safely.
Main Features
- Double electro-magnetic lock
- 300kg per Side for a total 600kg of holding force
- Monitored with LED indication
- Rounded edges and safety ropes to ensure safer installation
- Premium quality magnetic locks, robust security for your projects
Specifications
| Application/Usage | Access Control System; Commercial; Door; Industrial; Public Building; Wooden Door |
|---|---|
| Depth | 27.0mm |
| Door Supported | Double Door |
| Environmentally Friendly | Yes |
| Features | Monitored with LED Indication; Rounded Edges and Safety Ropes to Ensure Safer Installation |
| Finishing | Satin Anodized Aluminium |
| Form Factor | Surface Mount |
| Height | 496.0mm |
| Holding Force | 600kg |
| Input Voltage | 12V DC; 24V DC |
| Limited Warranty | 5-Year |
| Material | Aluminium |
| Mount Type | Surface Mount |
| Packaged Quantity | 1 |
| Power Consumption | 6W |
| Product Series | SD SERIES |
| Product Type | Magnetic Lock |
| Width | 45.0mm |
| CE Marking | Yes |
| Colour | Silver |
| Input Current | 315mA |
| Manufacturer | CDVI Group |
| RoHS Compliant | Compliant |
| WEEE Compliant | Compliant |
Downloads
Product datasheet
CDVI SD300M Double 300kg Magnetic Lock, Monitored Product datasheet · SD300M · PDF Open datasheet
