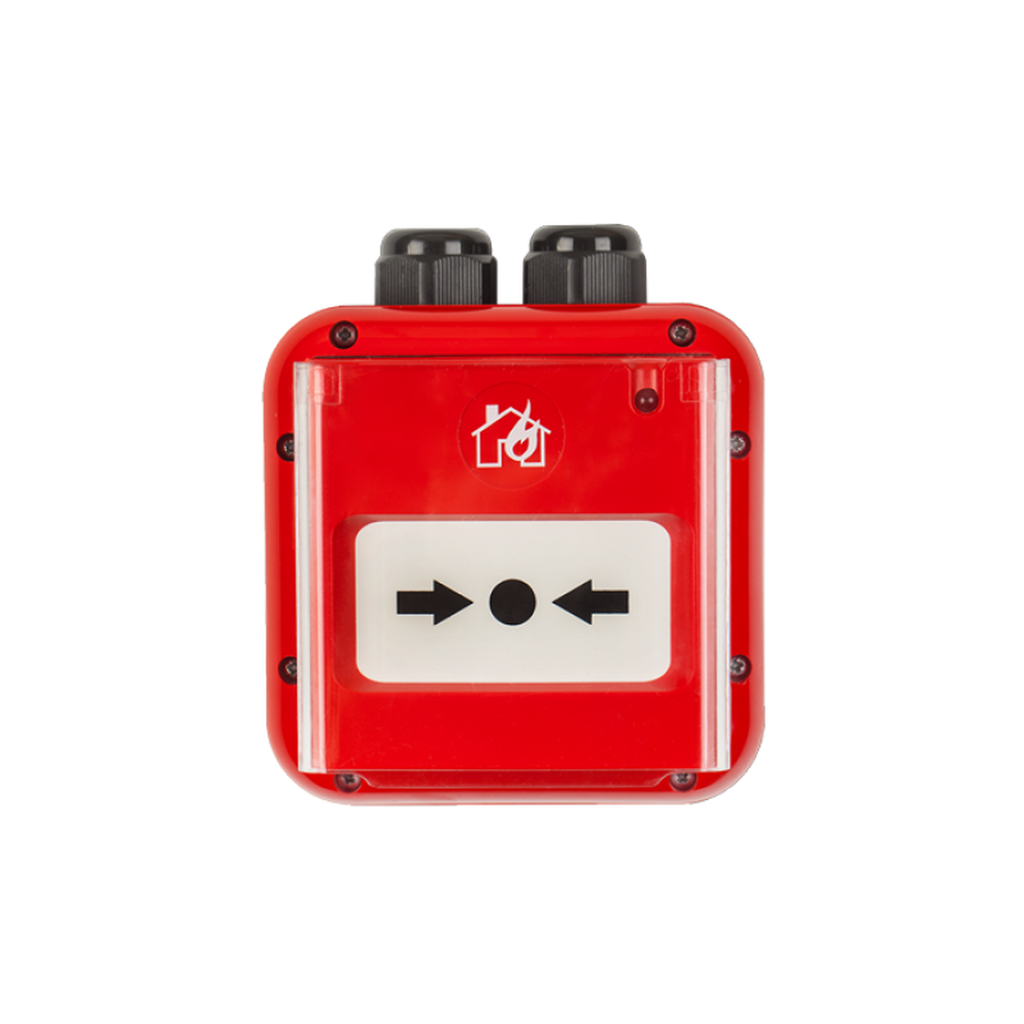

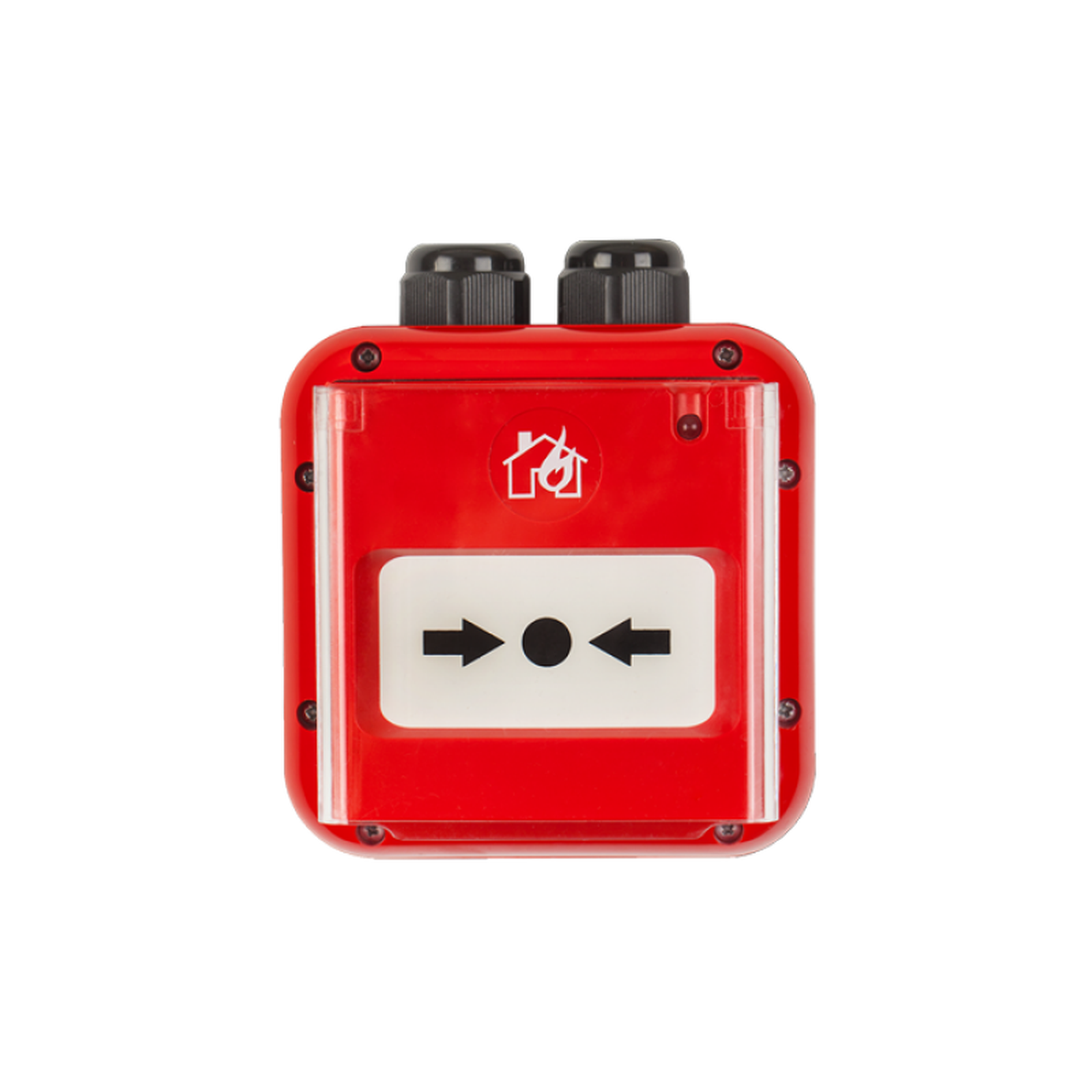

The Comelit 41PAE020 is an addressable manual call point rated IP67 for outdoor or wet locations, for Comelit addressable fire detection systems. It has a built-in short-circuit isolator and a resettable (flexible) operating element, and it is approved to EN54-11 and EN54-17.
Key features
- IP67 rated for external and wet areas
- Built-in short-circuit isolator
- Resettable flexible element
- Cable glands included
- EN54-11 and EN54-17
Technical specifications
- Product code: 41PAE020
- Operating voltage: 15 to 32 VDC (27 VDC nominal)
- Current during communication: 160 µA at 27 VDC
- Ingress protection: IP67
- Operating temperature: -35 °C to +60 °C
- Operating humidity: 0% to 96% RH (at 40 °C)
- Terminal cross-section: 0.4 to 2.5 mm²
- Material / colour: ABS / red
- Dimensions: 114 x 114 x 80 mm (W x H x D)
- Weight: 263 g
- Standards: EN54-11, EN54-17
