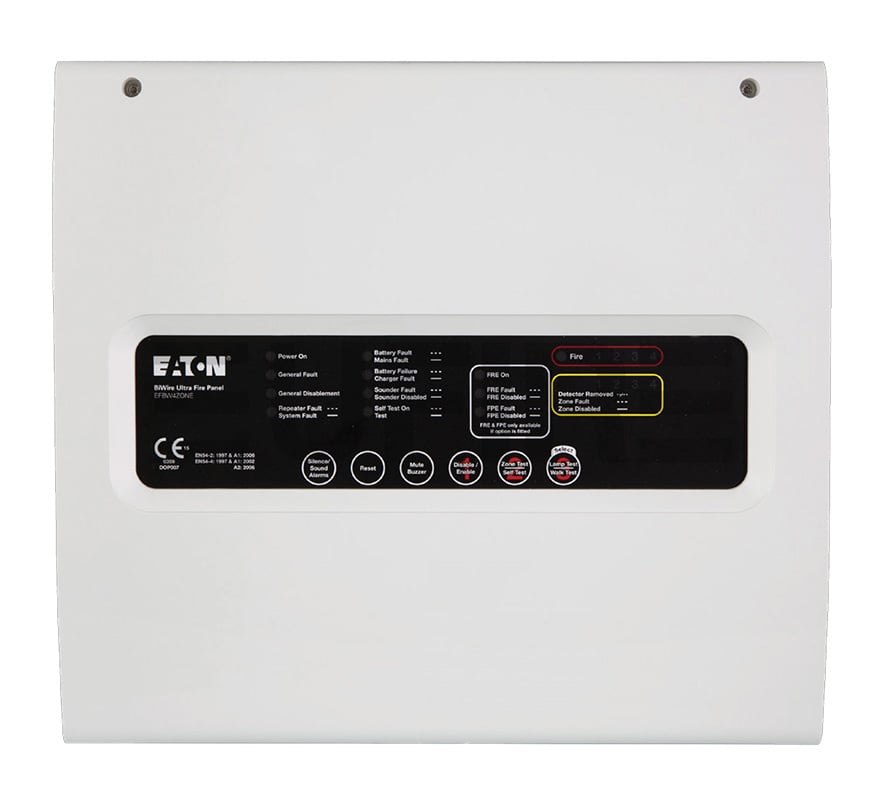

Eaton Flexi 4 Zone BiWire / Conventional Fire Control Panel (EFBW4ZFLEXI)

The Eaton BiWire Flexi EFBW4ZFLEXI is a 4 zone fire alarm control panel where each zone can be configured to work either as a BiWire two-wire zone or as a conventional zone. A mixture of zone types can be used on the same system, combining the time-saving benefits of two-wire wiring with the ability to use a wide range of conventional devices where needed.

This makes it well suited to new installations and to extending or upgrading an existing conventional system. It is certified to EN 54-2 and EN 54-4, is designed to meet the recommendations of BS 5839-1, and is compatible with two-wire and conventional EN 54-23 certified visual alarm devices (VADs).

Key features

• 4 zones, each configurable as BiWire (two-wire) or conventional
• Up to 32 detectors and call points per zone
• 2 conventional sounder circuits
• Volt-free fire, fault and interlink relays
• Class change input
• RS485 repeater port for EFBWCV repeater panels
• Optional zone relay and FRE/FPE board (BWOB4Z)
• Integrated EN 54-4 power supply charging 2 x 12V 5Ah batteries (MB512, not included)
• 29 x 20mm cable entry positions plus rear cable entry slots

Technical specifications

• Catalogue number: EFBW4ZFLEXI
• Zones: 4
• Devices per zone: Max. 32 detectors and call points; 200mA max. zone loading
• Zone voltage: 19-23V DC standby, 31-33V DC alarm
• End of line: EOLM-3 for BiWire zones; EOLM-1 or EOLM-3 for conventional zones
• Sounder circuits: 2 x 250mA, 6K8 end of line
• Relays: Volt-free SPDT, 30V DC 1A
• Auxiliary output: 18.15-30.7V, 50mA
• Mains supply: 230V AC, 50Hz
• Batteries: 2 x 12V 5Ah (not included)
• Cable: 2 core 1.5mm² screened fire rated (e.g. FP200, Firetuf FT120), 500m max. per zone
• Dimensions (H x W x D): 336 x 375 x 134mm
• Weight: 2.25kg (excluding batteries)
• Operating temperature: -5°C to +40°C
• Ingress protection: IP30
• Standards: EN 54-2, EN 54-4, BS 5839-1
