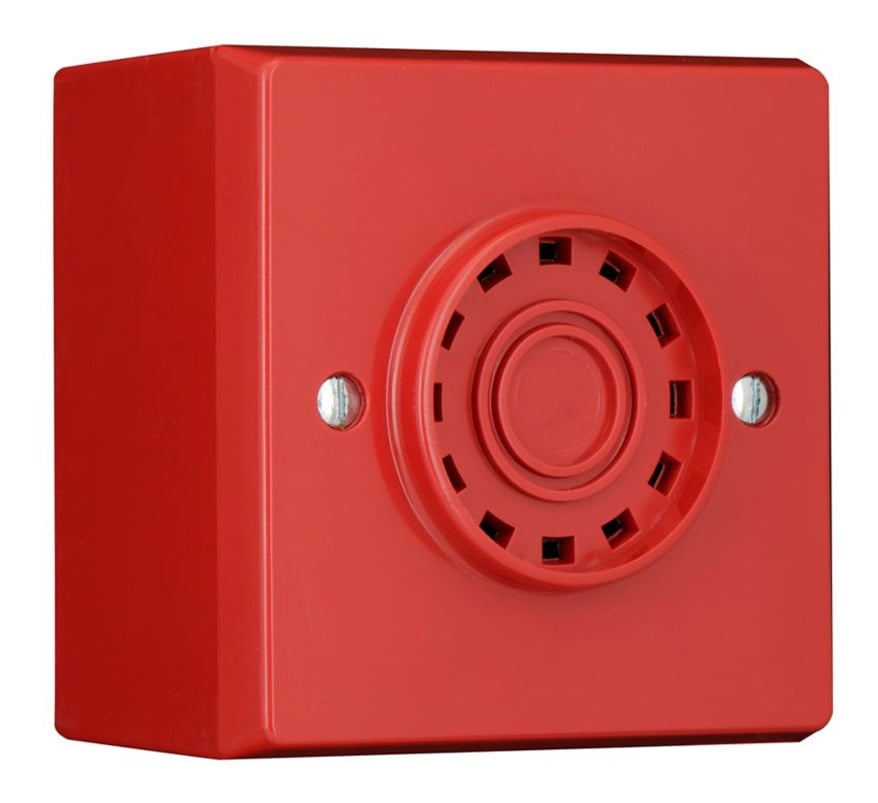

The Eaton Fulleon Askari Compact AC/SV/R/S/BB is a discreet conventional fire alarm sounder in red, supplied with a surface back box and fitted with a tone select switch and volume control. Its compact design combines high sound output with attractive looks, making it ideal for retail, hotel and residential applications. It can be flush or surface fixed.
Key features
- 32 user-selectable tones, 6 of them certified for fire use
- Automatic synchronisation for improved tone clarity
- Two-stage alarm (alert and alarm)
- Discreet compact design
- Tone select switch and volume control
- Surface back box included; can also be flush fixed
- Reverse polarity monitoring
Technical specifications
- Voltage: 9-15 V DC / 18-28 V DC
- Current: 18 mA (typical, tone 3)
- Sound output: 97 dB(A) (typical, tone 3)
- Tones: 32
- Volume control: 10 dB
- Monitoring: reverse polarity
- Operating temperature: -10°C to +55°C
- Ingress protection: IP21C (with back box)
- Construction: ABS, red
- Dimensions: 86 mm square x 57 mm
- Weight: 0.11 kg
