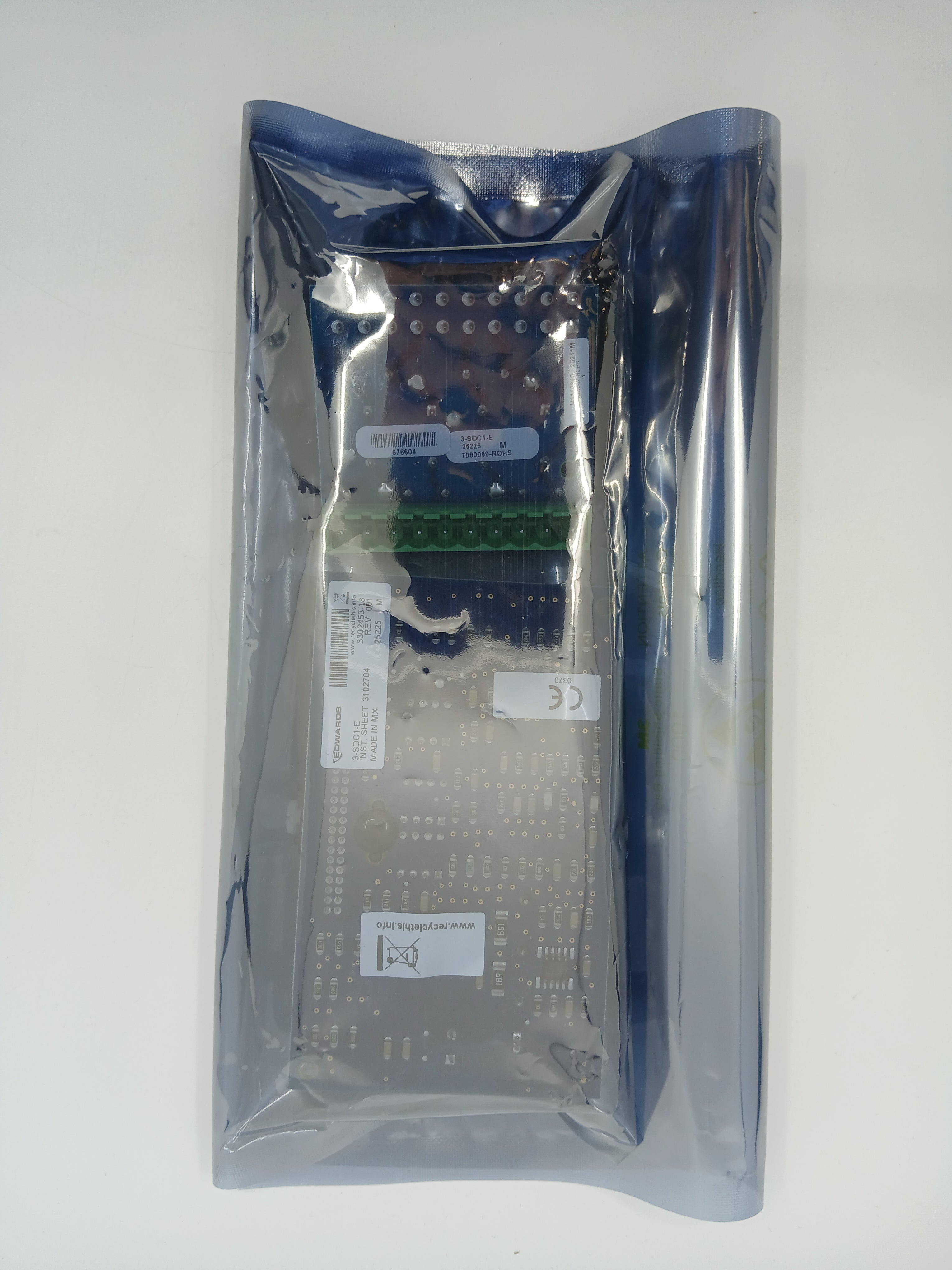

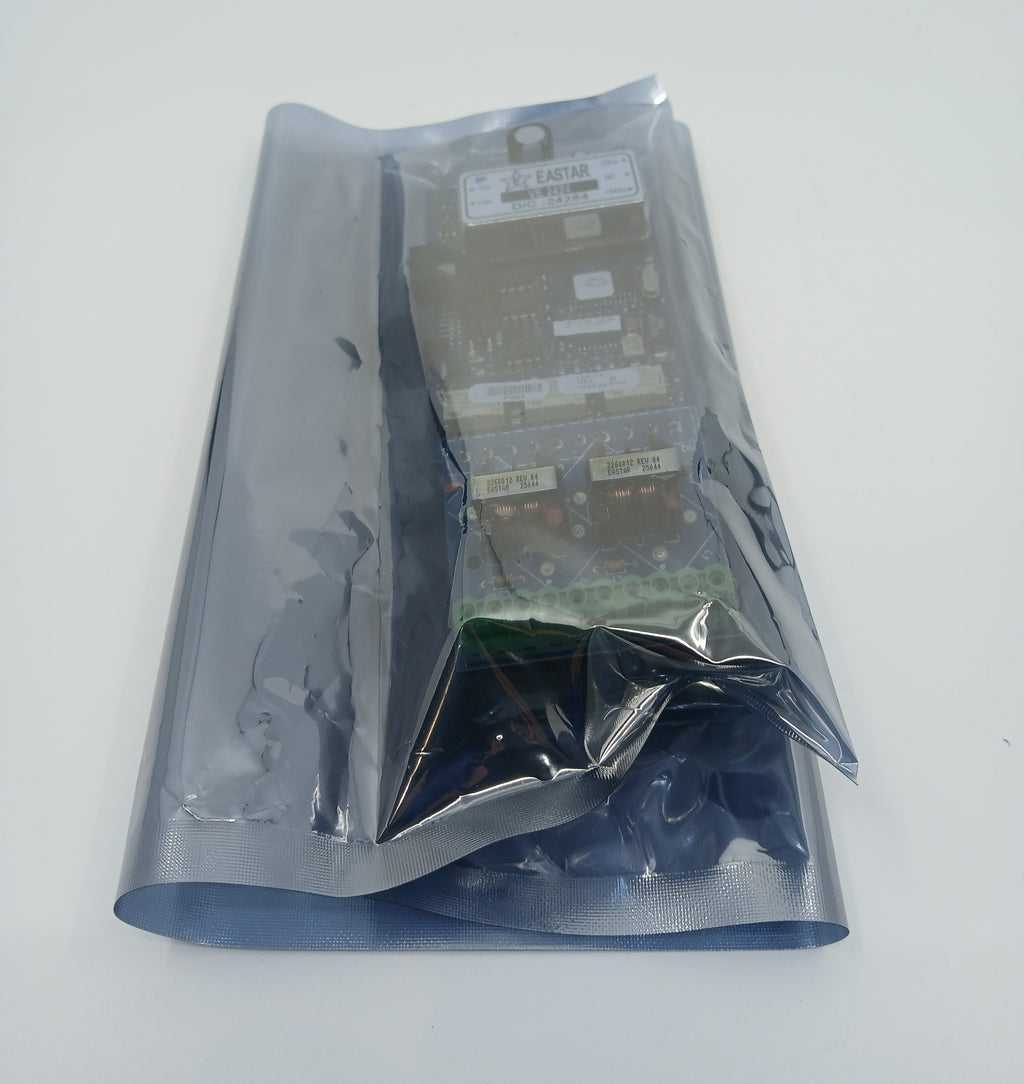

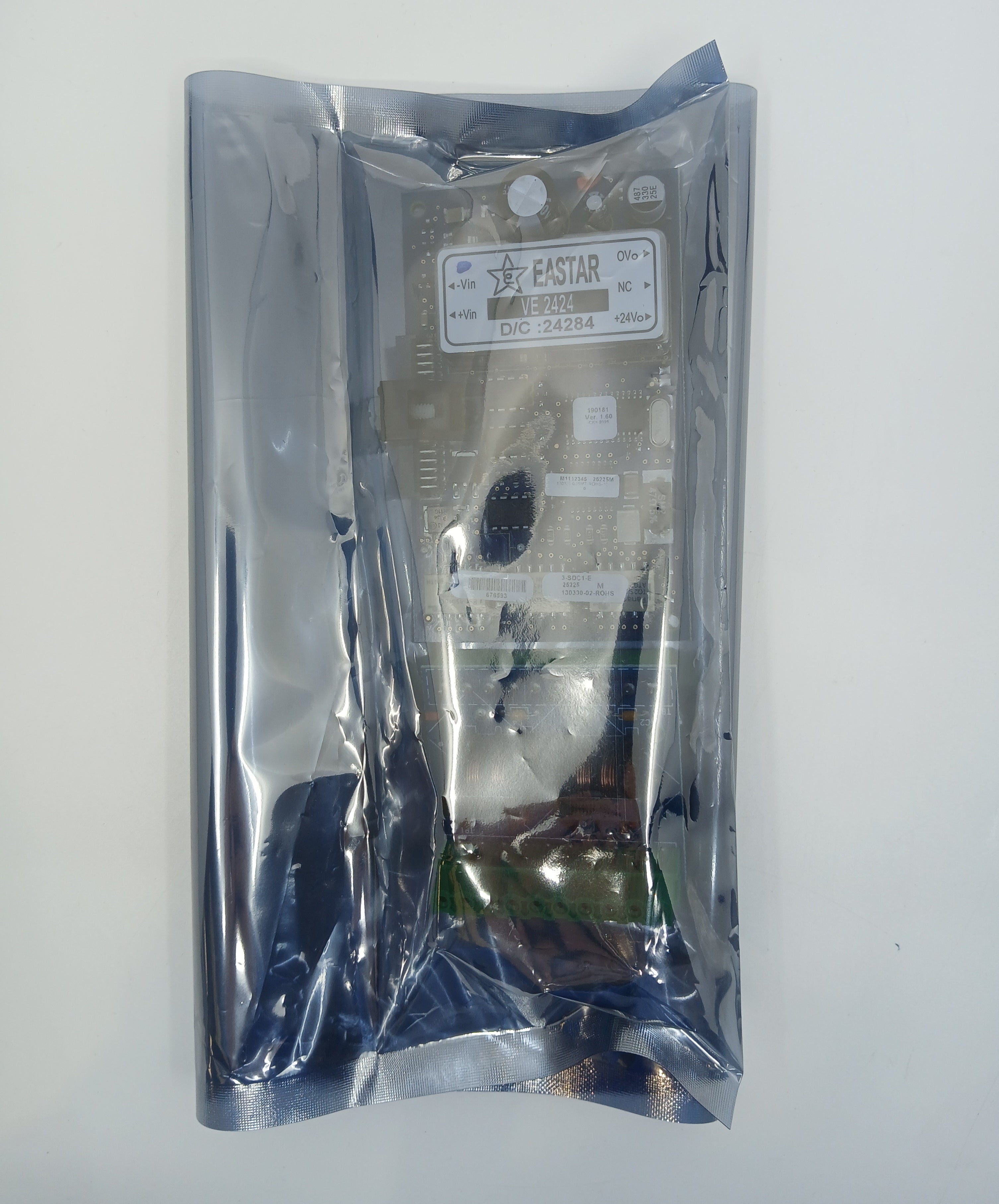

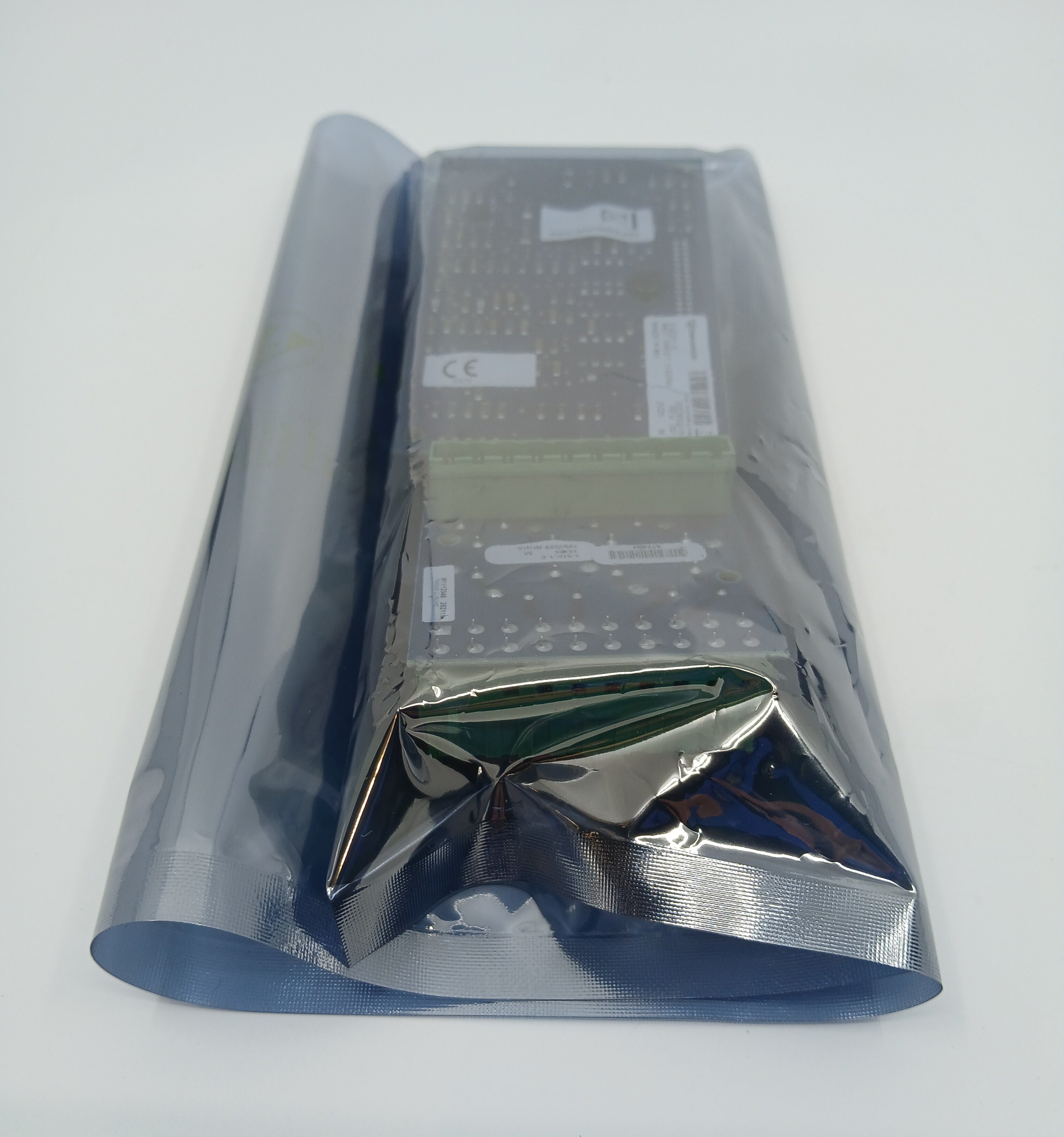

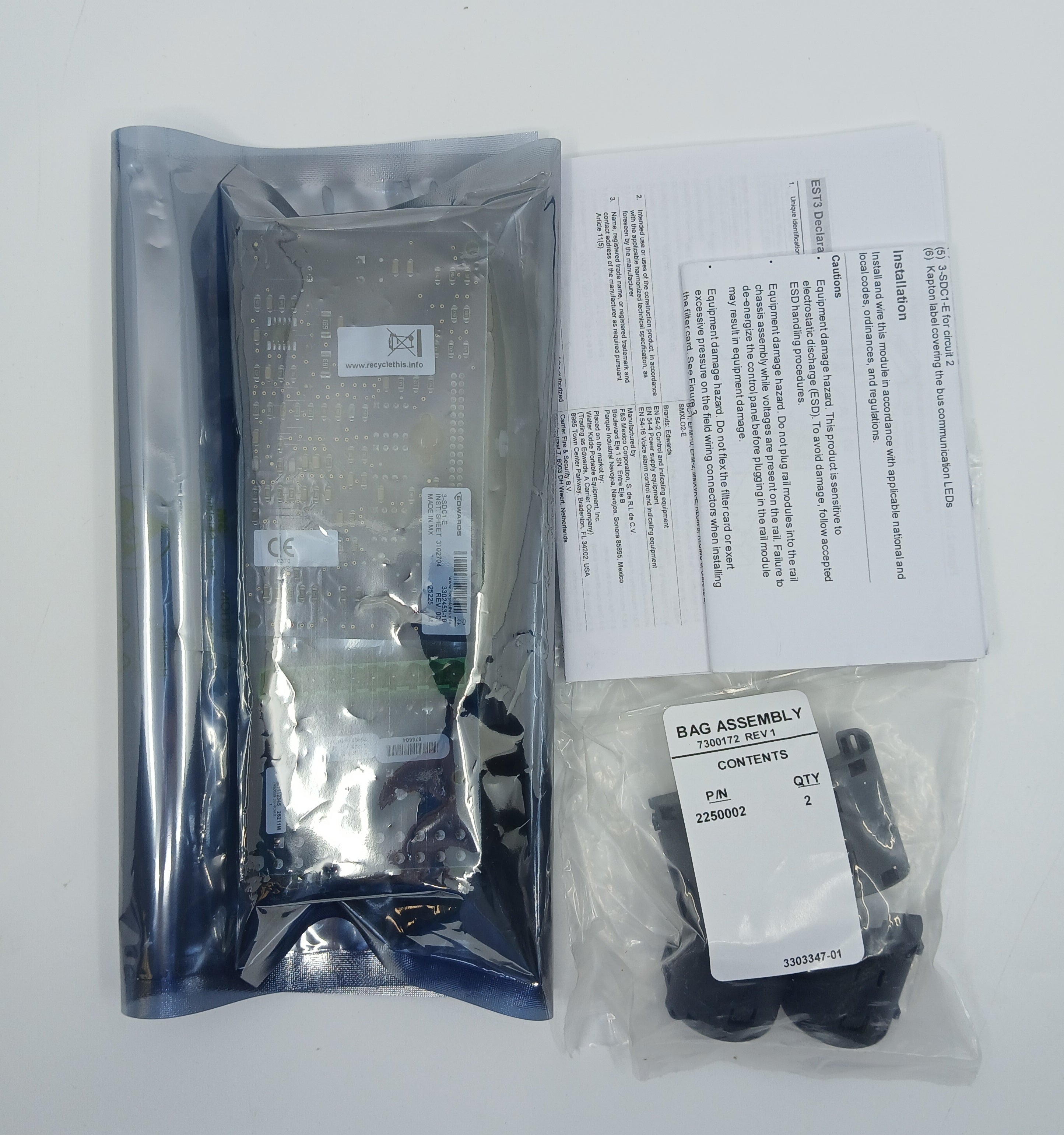

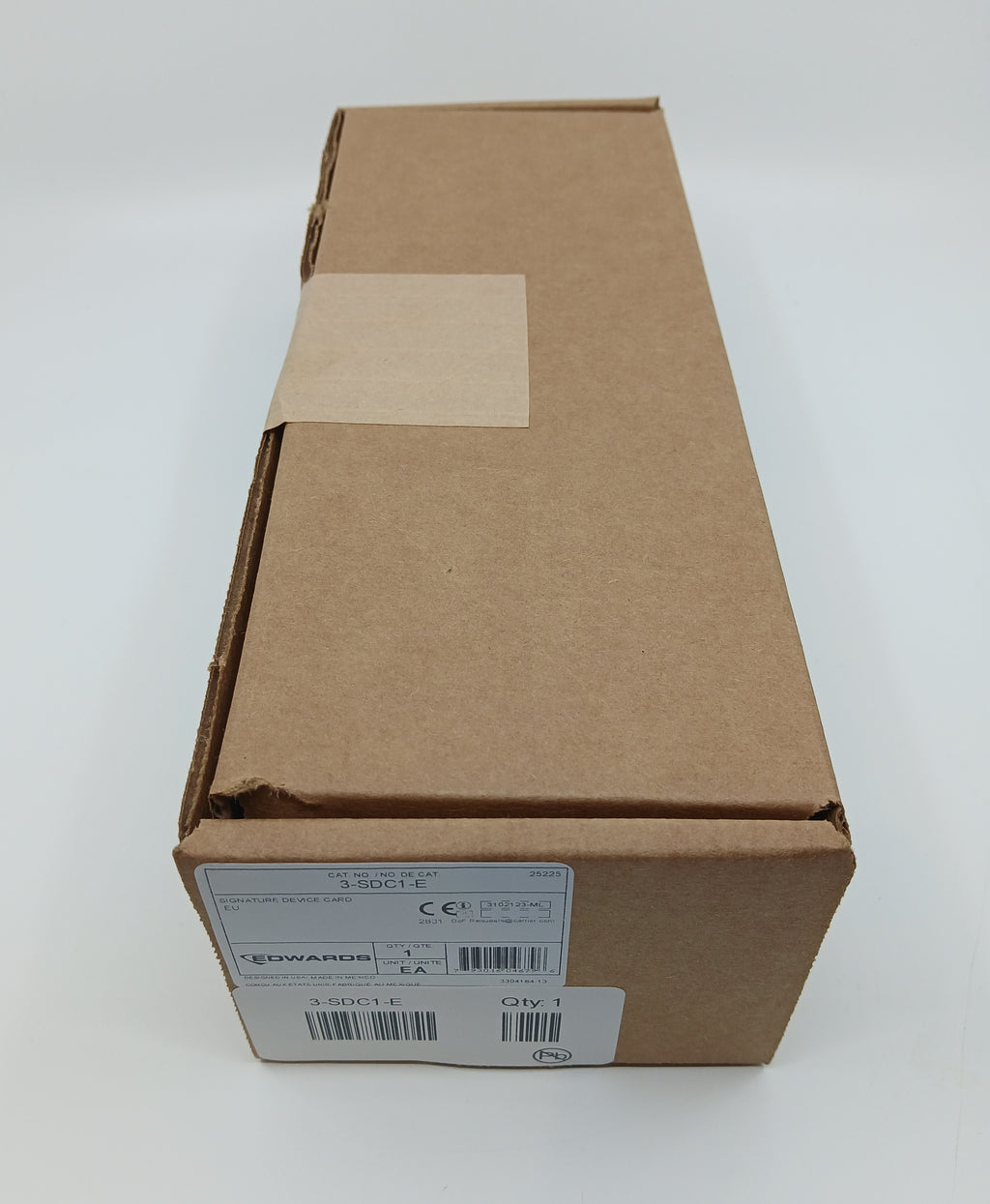

The Edwards 3-SDC1-E is a Signature device card, European (EN54) version. It plugs into an Edwards Signature driver controller to add a Signature circuit: in the Edwards EST4 life safety control platform it upgrades a single-loop 3-SSDC2-E to a dual-loop 3-SDDC2-E, and on EST3 it upgrades a 3-SSDC1-E to a 3-SDDC1-E.
Each card supports up to 125 Signature detectors and 125 Signature modules over a single pair of wires, with Class B, Class A or Class X wiring.
Key features
- Adds a second Signature circuit to a single driver controller
- Up to 125 detectors and 125 module addresses per card
- With the driver controller: fully digital communication with Signature Series devices
- With the driver controller: automatic as-built mapping, including T-taps, and device location supervision
- With the driver controller: automatic day/night sensitivity and loop alarm recognition in under 750 ms
Technical specifications
- Model: 3-SDC1-E (EN54 version)
- Detectors supported: 125 per card
- Modules supported: 125 module addresses per card
- Signature circuit voltage: 20 VDC ±5%
- Maximum circuit resistance: 100 Ω
- Maximum circuit capacitance: 0.33 µF
- 2-wire smoke power output: 100 mA per card
- Wiring: Class B, Class A or Class X
- Shipping weight: 0.11 kg
- Data sheet reference: E85010-0129
