The Edwards 4-LCDAUDTELANN is an audio/telephone LCD display kit for remote annunciators on the Edwards EST4 life safety control platform. It comes with one 4-LCDAUDTEL display plus the mounting and cabling hardware to fit it in 4-16ANNMT or 4-24ANNMT annunciator enclosures where a separate audio and telephone LCD is needed.
The LCD module provides a dedicated colour touch-screen interface for selecting page circuits and for placing and receiving calls over the firefighters' telephone handset. It has no common control buttons, and can be the only means of audio and telephone selection or be used together with LED-switch modules. Edwards lists it for the 4-8ANNMT, 4-16ANNMT and 4-24ANNMT enclosures (4-8ANNMT is not EN54 approved); it is not supported in other annunciator sizes.
Key features
- Colour touch screen for page circuit selection
- Places and receives firefighter telephone calls
- Can be used alone or with EST4 LED-switch modules
- Takes two spaces on the UI frame assembly
- Includes mounting and cabling hardware for annunciator enclosures
Technical specifications
- Model: 4-LCDAUDTELANN
- Display: 18-bit colour, 640 × 480 pixels, resistive touch screen
- Current (connected to 4-ANNCPU): 93 mA active; 40 mA standby at 20% brightness
- Operating temperature: 0 to 49°C
- Relative humidity: 0 to 93% non-condensing
- Shipping weight: 0.81 kg
- System: EST4
- Data sheet references: E85014-0002, E85014-0003

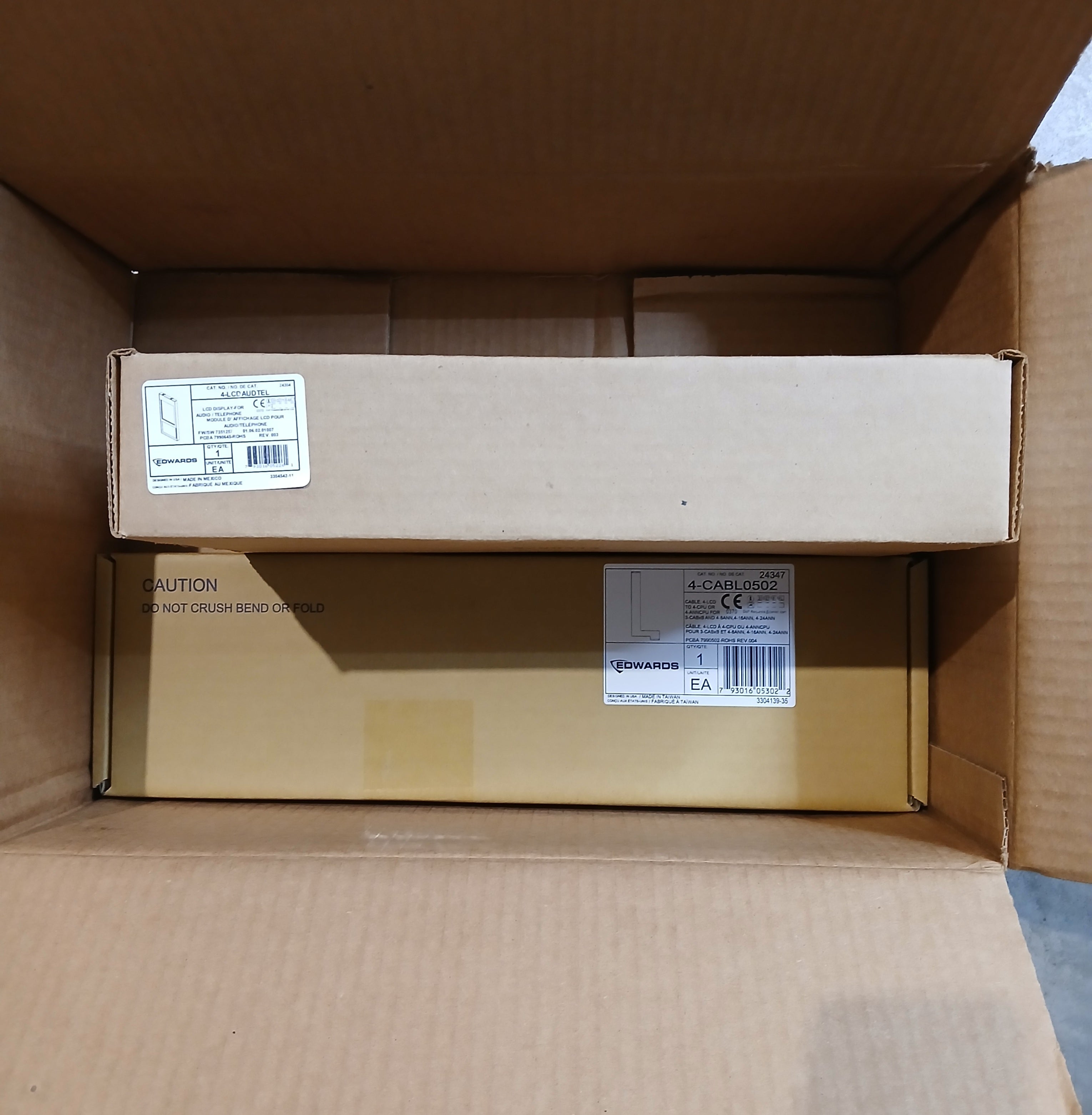

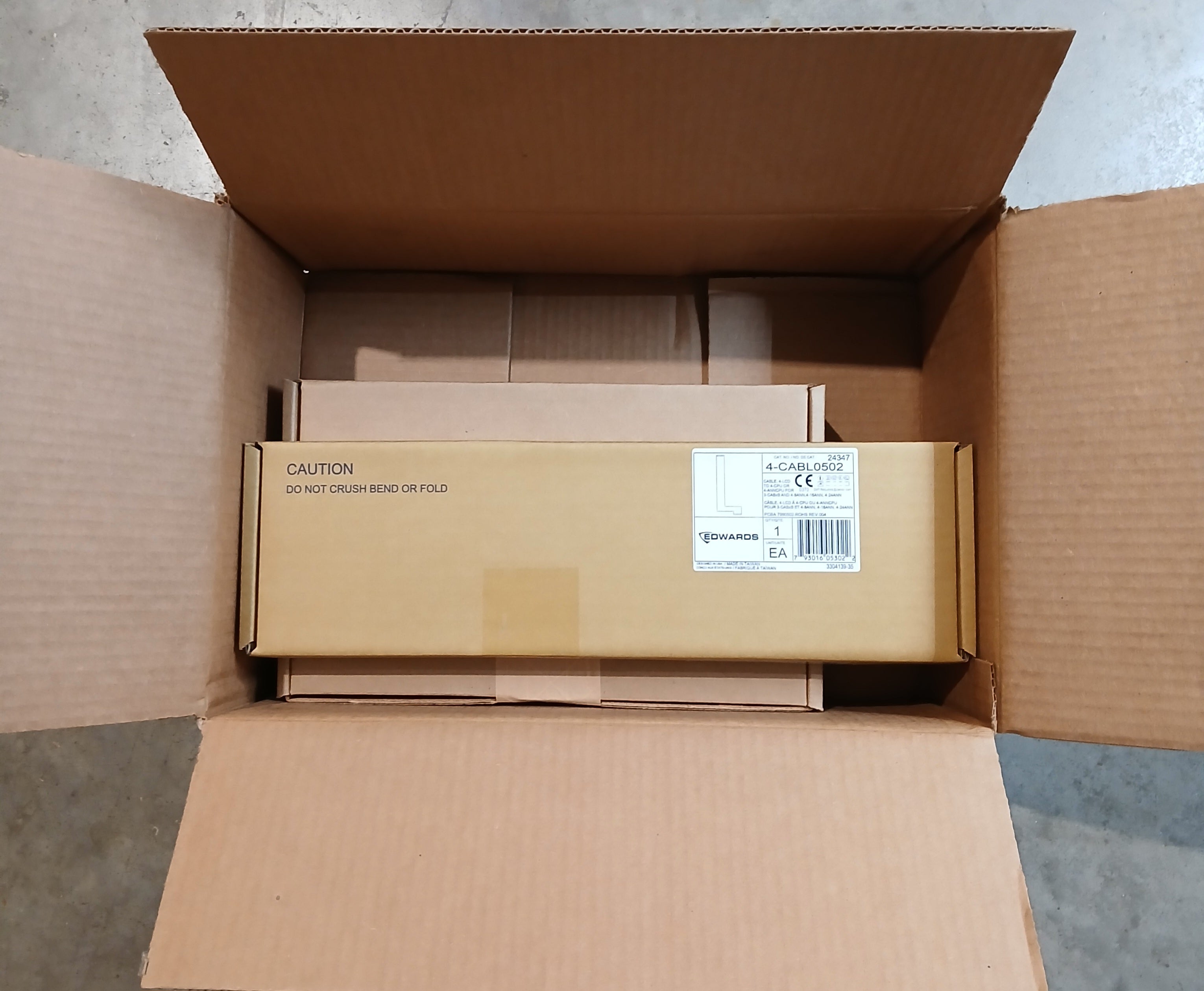

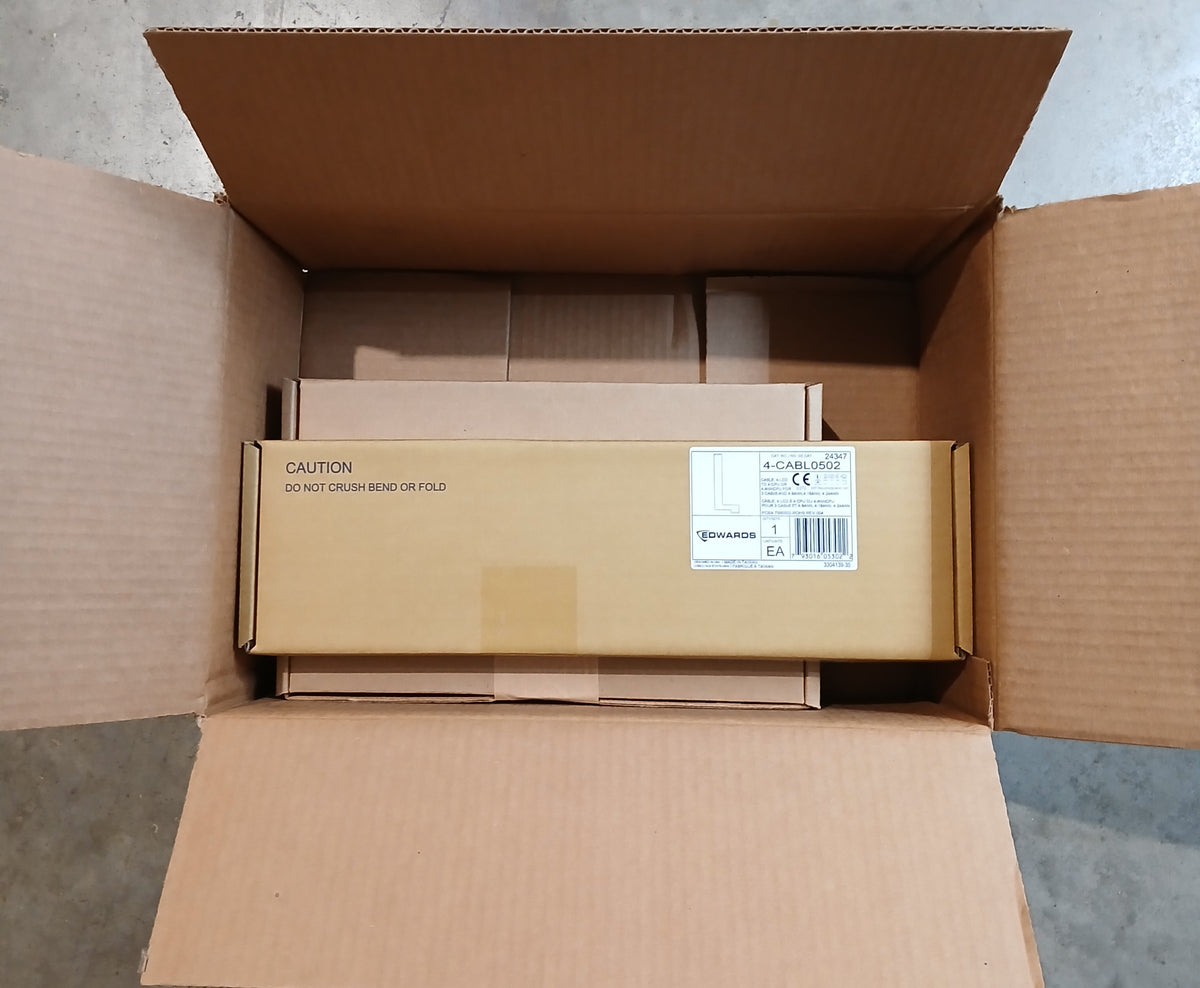

What's in the box
- 1 × 4-LCDAUDTEL LCD display
- Mounting and cabling hardware
