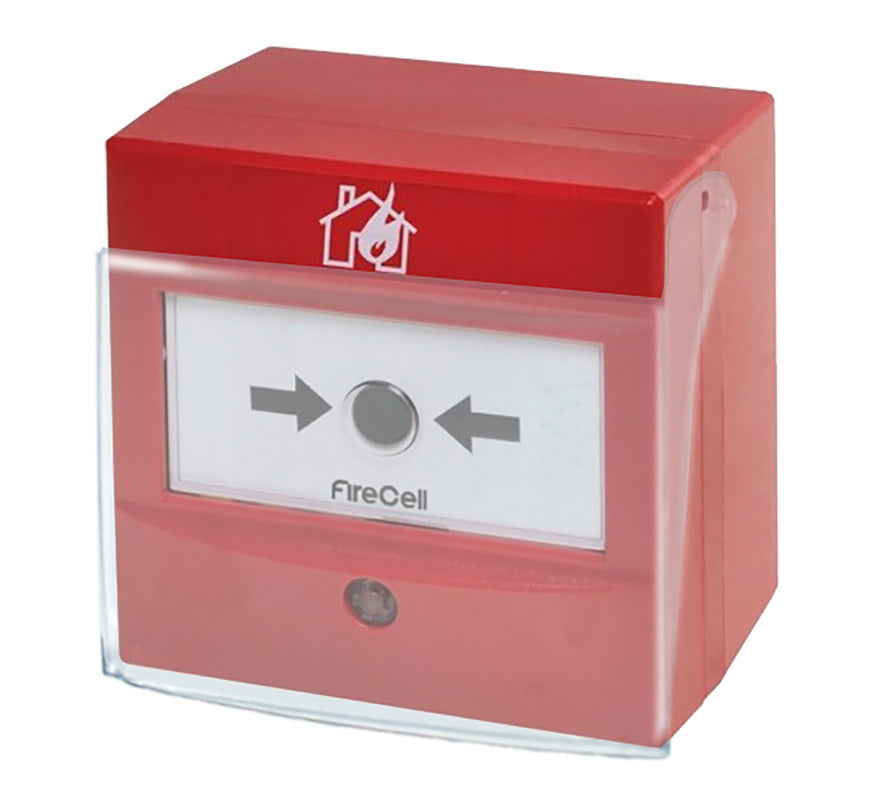

The EMS FireCell FC-200-003 is a red wireless manual call point with an Apollo-style front for the FireCell wireless fire alarm system. It gives a consistent look on sites that also use Apollo call points, installs without cabling back to the panel, and is individually addressed at the fire control panel.
Key features
- Dual band 868MHz radio with auto-adjusting power output
- Individual addressing at the fire control panel
- Resettable element with test key facility
- Fire indication LED
- Anti-tamper locking
- Transparent hinged protective cover included, to guard against accidental operation in busy environments
- Compatible with the EMS FireCell system, including the Fusion RLM
Technical specifications
-
Part number: FC-200-003
-
Frequency: 868MHz, dual band
-
Radio range: Up to 1,250m (clear line of sight)
-
Output power: 0 to 14dBm (auto adjusting)
-
Signalling protocol: X
-
Batteries: 6 x AA alkaline (Panasonic LR6AD Powerline / Varta 4006 Industrial)
-
Dimensions (W x H x D): 90 x 98 x 72.5mm
-
Weight: 0.35kg
-
Operating temperature: -10°C to 55°C
-
Ingress protection: IP24, indoor use only
-
Standards: EN 54-11 and EN 54-25
-
Spare cover: 44251-189APO
What's in the box
- Wireless call point (Apollo front)
- Protective lid
