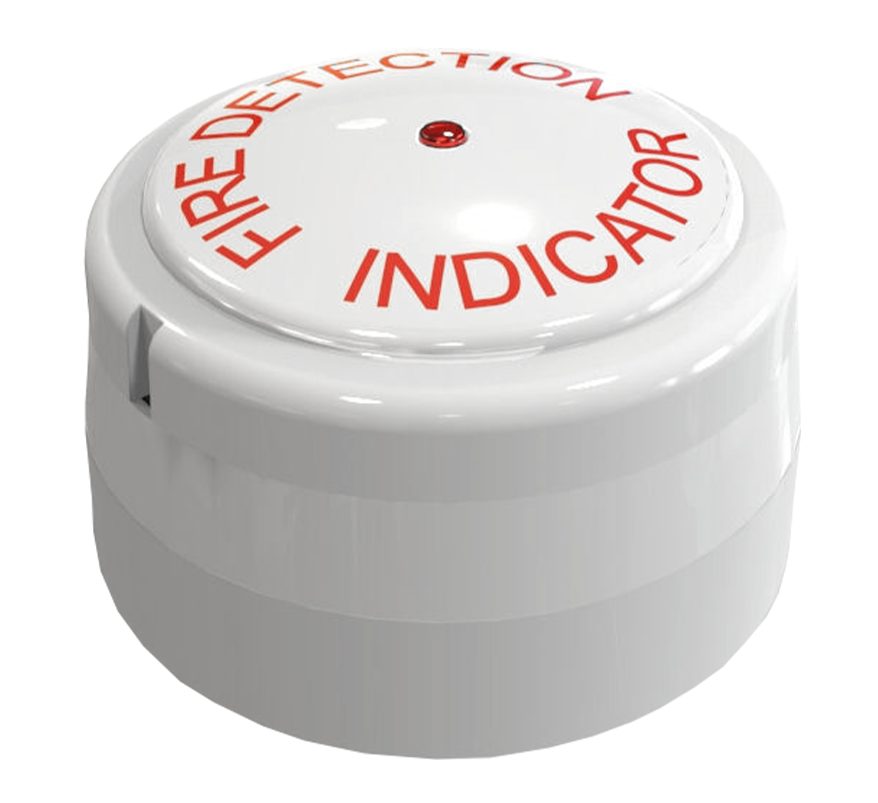

The EMS FireCell Wireless Remote Indicator Module (RIM), part number FCX-178-001, remotely indicates a fire event at a location where access is not easily available, such as an apartment. It can be associated with a single detector or a number of detectors and, combined with the fire control panel information, helps locate a fire quickly.
It is battery powered, needs no cabling and is compatible with the EMS FireCell system, including the Fusion RLM.
Key features
- Dual band 868 MHz operation
- Fire indication LED
- Can be associated with one detector or a group of detectors
- Anti tamper locking mechanism
- Satisfies the requirements of Irish standard IS3218
- Third party EN certified
Technical specifications
- Part number: FCX-178-001
- Power supply: 6 x AA alkaline (Panasonic LR6AD Powerline / Varta 4006 Industrial)
- Operating frequency: 868 MHz
- Output transmitter power: 0 to 14 dBm (auto adjusting)
- Radio range: up to 1250 m (clear line of sight)
- Signalling protocol: X
- Operating temperature: -10 to 55 °C
- IP rating: IP23, indoor use only
- Dimensions: 113 mm diameter x 81 mm depth
- Weight: 0.4 kg
- Approval: EN54-25 (0359-CPR-00127)
